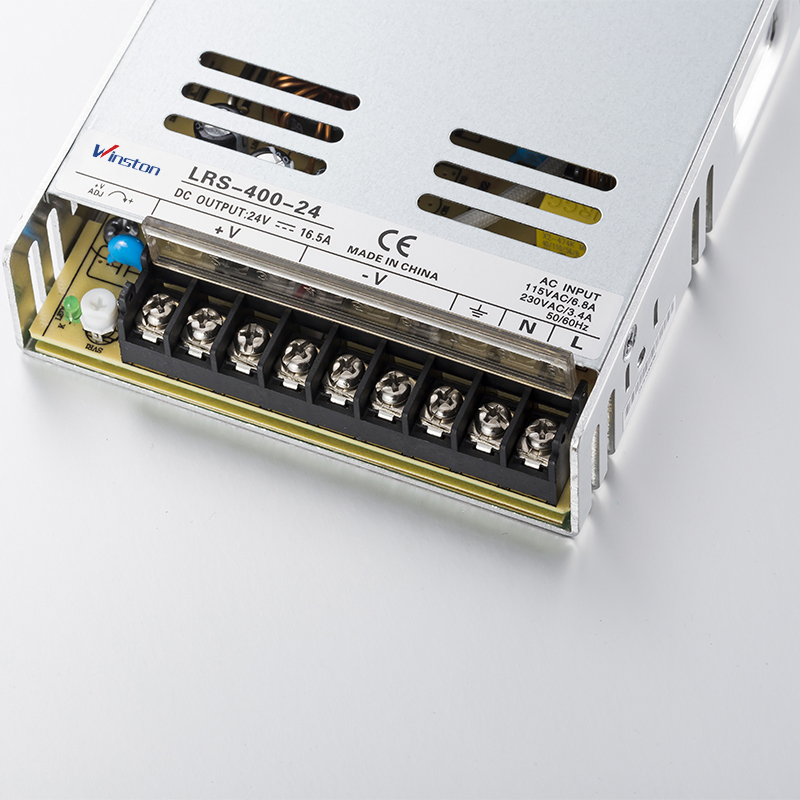

LRS-400
Winston
• Single output: power 400W

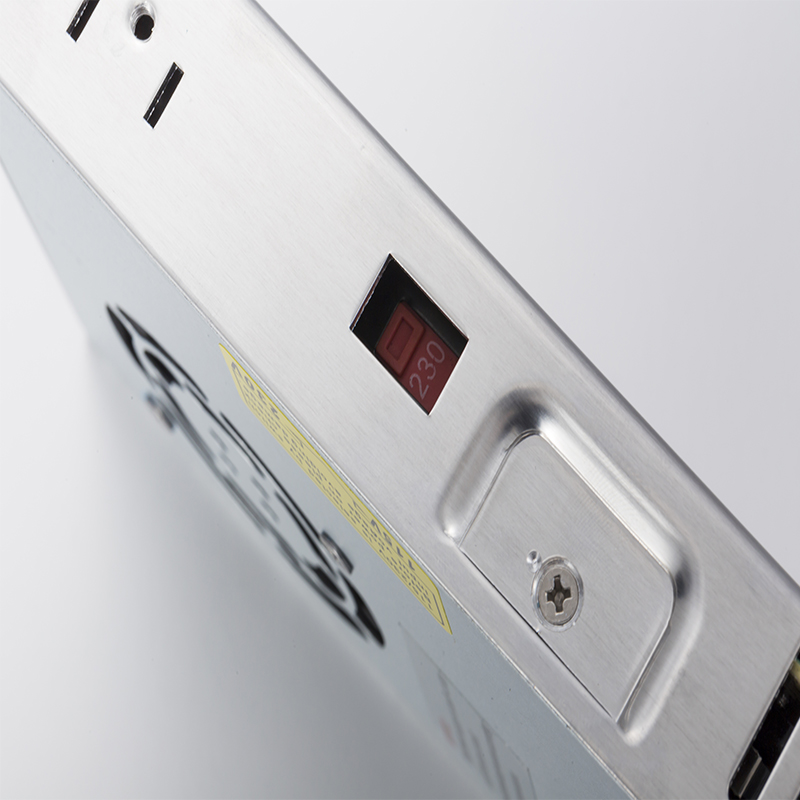

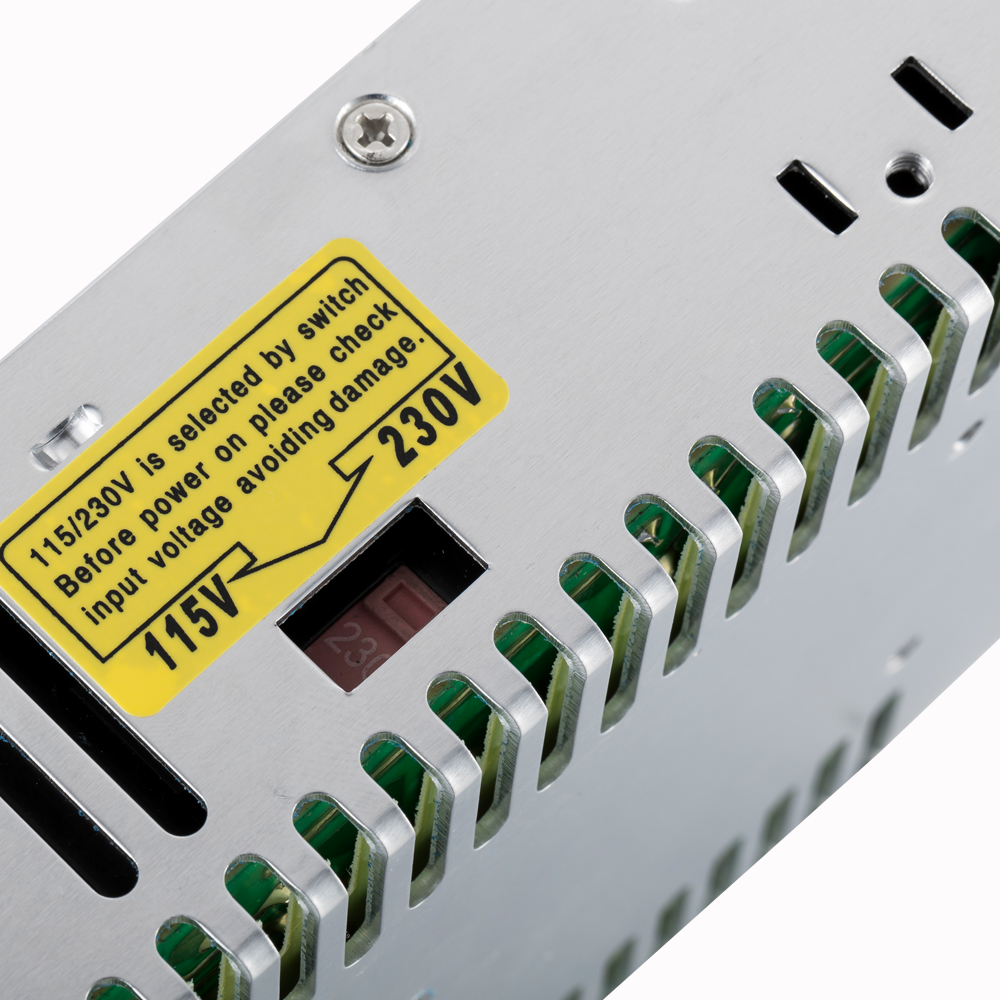

• Input voltage: 90~132VAC/180~264VAC by switch
• Single output: power 400W
• Input voltage: 90~132VAC/180~264VAC by switch
Model | LRS-400-12 | LRS-400-15 | LRS-400-24 | LRS-400-48 |
DC output voltage, current | 12V 0~33A | 15V 0~26.6A | 24V 0~16.5A | 48V 0~8.3A |
Wave and noise | 150mVp-p | 150mVp-p | 150mVp-p | 200mVp-p |
Inlet wire stability | ±0.5% | ±0.5% | ±0.5% | ±0.5% |
Load stability | ±0.5% | ±0.5% | ±0.5% | ±0.5% |
Efliciency | 85% | 86% | 88% | 89% |
Adjustable range for DC voltage | ±10% | ±10% | ±10% | ±10% |
Input voltage range | 90~132VAC/180~264VACby switch 240~370VDC 47~63Hz | |||
Impact current | Cold start current 60A/230VAC | |||
Overload protection | 110%~ 150% cut off the output, automatic recovery | |||
Over voltage protection | 115%~ 140% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed | |||
Setup, rise, hold up time | 1500ms, 50ms/230VAC 1500ms, 50ms/115VAC | |||
Withstand vollage | I/P-O/P: 1.5kV I/P-FG:1.5kV O/P-FG:0.5kV 1minute | |||
Isolation resistance | I/P-O/P I/P-FG O/P-FG: 100M Ohms /500VDC/25C /70%RH | |||
Working temperature | -20℃~+70 ℃ | |||

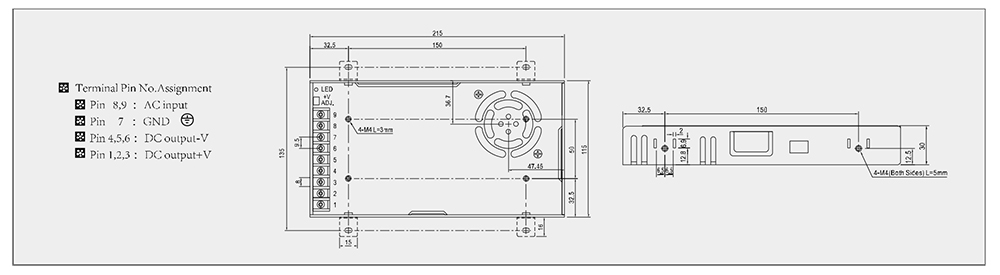

Dimension | 215×115×30mm | |||
Weight | 0.76kg | |||
Packing | 37.5×25×26CM/20PCS/16kg | |||
