Winston E2E-X2 E2E-X4 flush non-flush connector type proximity switch sensor

Share to:

Winston E2E-X2 E2E-X4 flush non-flush connector type proximity switch sensor

Availability:

Quantity:



Inquire Add to Basket

Model:
E2E-X2, E2E-X4
Brand:
Winston

Product Description

Model Explanation

E2E-X2	Detection Distance				2mm
	Flush	DC 6-36VDC	NPN	NO	E2E-X2E1
				NC	E2E-X2E2
				NO+NC	E2E-X2E3
			PNP	NO	E2E-X2F1
				NC	E2E-X2F2
				NO+NC	E2E-X2F3
			Two wire system	NO	E2E-X2D1
				NC	E2E-X2D2
		AC90-250VAC	SCR Control-lable silicon	NO	E2E-X2Y1
				NC	E2E-X2Y2
E2E-X4	Detection Distance				4mm
	Non-Flush	DC 6-36VDC	NPN	NO	E2E-X4ME1
				NC	E2E-X4ME2
				NO+NC	E2E-X4ME3
			PNP	NO	E2E-X4MF1
				NC	E2E-X4MF2
				NO+NC	E2E-X4MF3
			Two wire system	NO	E2E-X4MD1
				NC	E2E-X4MD2
		AC90-250VAC	SCR Control-lable silicon	NO	E2E-X4MY1
				NC	E2E-X4MY2
	Control output	DC	200mA
		SCR/Relay	300mA
	Output vol;tage drop DC/AC		DC (NPN PNP) type 3V or less,Two wire 3.9Vor less, AC 10Vor less DC
	Consumption current		DC (NPN PNP) type 12V 8mA,24V 15mA , AC 10mA or less DC
	Repeated precision		0.5
	DC/AC		200Hz/10Hz
	Working environment temperature		-25℃ ~ + 65 ℃
	Insulation resistance		50MΩ
	Shell material		Metal
	Protection grade		IP67

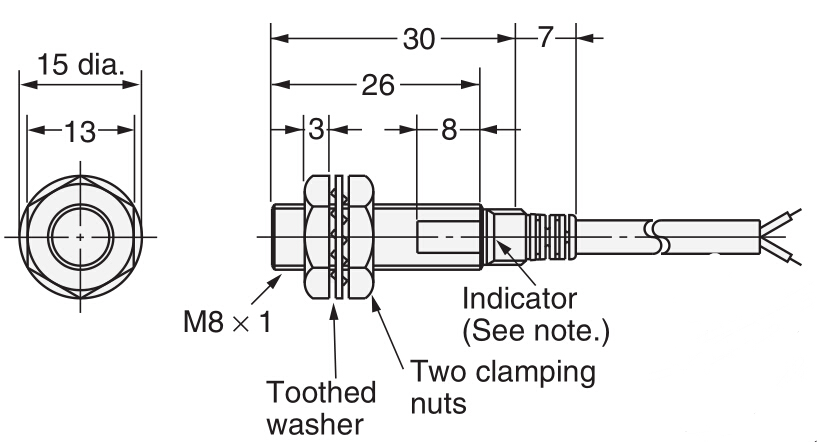

Overall dimensions

E2E-X2 1.jpg

e2e-x4 1.jpg

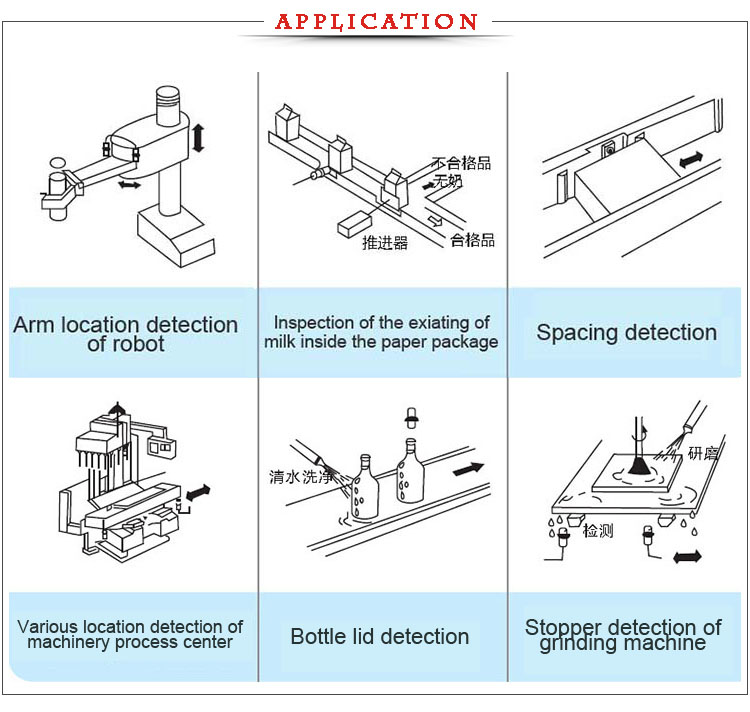

Application
