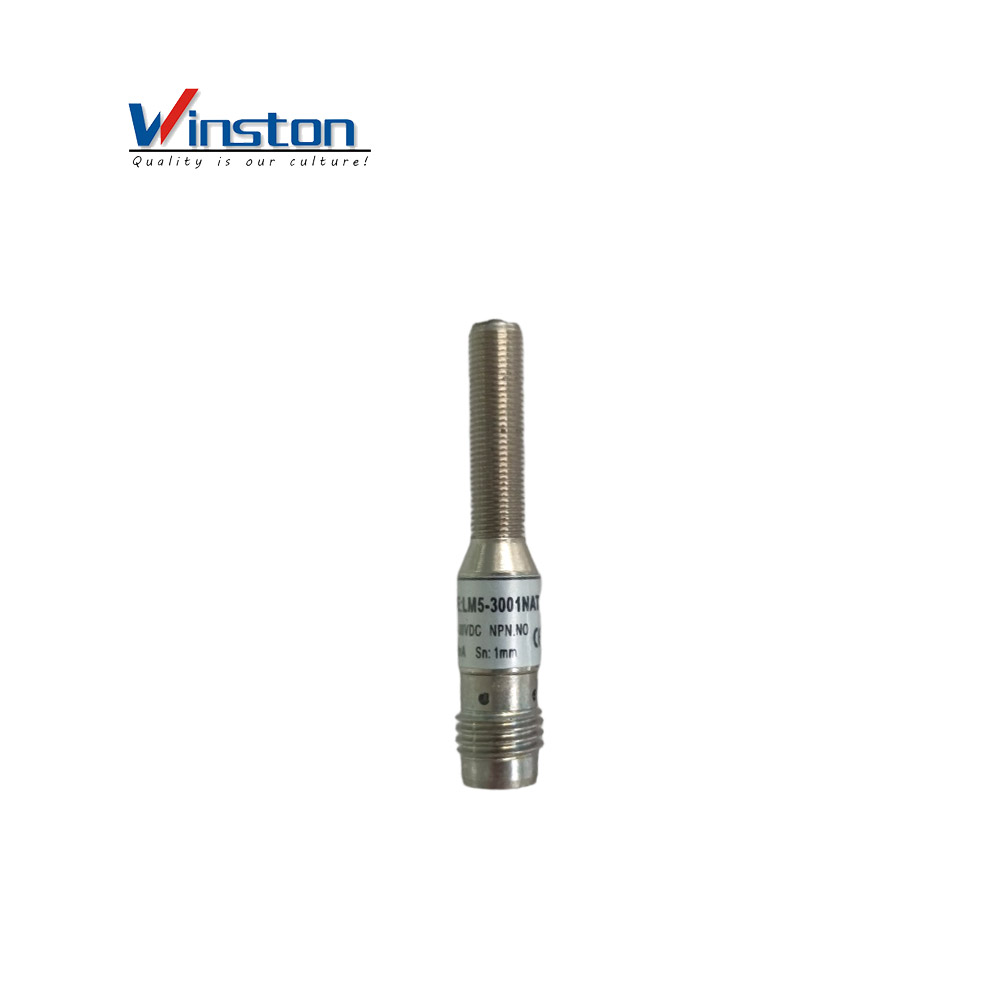

LM5-3001NAT
Winston
Lm4/Lm5 | Lm6 | ||||
DETECTION DISTANCE | 0.8mm/1mm | 1mm | |||
Flush | DC 10 - 30 VDC AC 90 - 250 VAC | NPN | NO | LM4-300.8NA/LM5-3001NA | LM6-3001NA |
NC | LM6-3001NB | ||||
NO+NC | |||||
PNP | NO | LM4-300.8PA/LM5-3001PA | LM6-3001PA | ||
NC | LM6-3001PB | ||||
NO+NC | |||||
two wire systeme | NO | LM6-3001LA | |||
NC | LM6-3001LB | ||||
SCR Control lable silicon | NO | LM6-2001A | |||
NC | LM6-2001B | ||||
NO+NC | |||||
Relay output | |||||
DETECTION DISTANCE | 1.5mm | ||||
Non-Flush | DC 10 - 30 VDC AC 90 - 250 VAC | NPN | NO | LM6-3002NA | |
NC | LM6-3002NB | ||||
NO+NC | |||||
PNP | NO | LM6-3002PA | |||
NC | LM6-3002PB | ||||
NO+NC | |||||
two wire systeme | NO | LM6-3002LA | |||
NC | LM6-3002LB | ||||
SCR Control lable silicon | NO | LM6-2002A | |||
NC | LM6-2002B | ||||
NO+NC | |||||
DETECTION DISTANCE | |||||
Control output | DC | 200mA | 200mA | ||
SCR/ Relay | |||||
Standard detected object | 6*6*1(A3iron) | 8*8*1(A3iron) | |||
Repeated precision | 0.01 | 0.01 | |||
DC/AC Response frequency | 500Hz | 500Hz | |||
Working environment temperature | -25℃~+70℃ | -25℃~+75℃ | |||
Insulation resistance | 50MΩ | ≥30MΩ | |||
Shell material | Metal | Stainless steel | |||
Protection grade | IP67 | IP67 | |||
Lm4/Lm5 | Lm6 | ||||
DETECTION DISTANCE | 0.8mm/1mm | 1mm | |||
Flush | DC 10 - 30 VDC AC 90 - 250 VAC | NPN | NO | LM4-300.8NA/LM5-3001NA | LM6-3001NA |
NC | LM6-3001NB | ||||
NO+NC | |||||
PNP | NO | LM4-300.8PA/LM5-3001PA | LM6-3001PA | ||
NC | LM6-3001PB | ||||
NO+NC | |||||
two wire systeme | NO | LM6-3001LA | |||
NC | LM6-3001LB | ||||
SCR Control lable silicon | NO | LM6-2001A | |||
NC | LM6-2001B | ||||
NO+NC | |||||
Relay output | |||||
DETECTION DISTANCE | 1.5mm | ||||
Non-Flush | DC 10 - 30 VDC AC 90 - 250 VAC | NPN | NO | LM6-3002NA | |
NC | LM6-3002NB | ||||
NO+NC | |||||
PNP | NO | LM6-3002PA | |||
NC | LM6-3002PB | ||||
NO+NC | |||||
two wire systeme | NO | LM6-3002LA | |||
NC | LM6-3002LB | ||||
SCR Control lable silicon | NO | LM6-2002A | |||
NC | LM6-2002B | ||||
NO+NC | |||||
DETECTION DISTANCE | |||||
Control output | DC | 200mA | 200mA | ||
SCR/ Relay | |||||
Standard detected object | 6*6*1(A3iron) | 8*8*1(A3iron) | |||
Repeated precision | 0.01 | 0.01 | |||
DC/AC Response frequency | 500Hz | 500Hz | |||
Working environment temperature | -25℃~+70℃ | -25℃~+75℃ | |||
Insulation resistance | 50MΩ | ≥30MΩ | |||
Shell material | Metal | Stainless steel | |||
Protection grade | IP67 | IP67 | |||
