LM6-3001NA
Winston

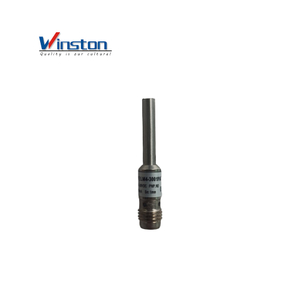

M6 Proximity Sensor Unshielded Type M6 PNP NC / NO (LM6-3001NA)
| LM6 | Detection Distance | 1mm | |||
| Flush | DC10-30VDC (6-36VDC) | NPN | NO | LM6-3001NA | |
| NC | LM6-3001NB | ||||
| NO+NC | |||||
| PNP | NO | LM6-3001PA | |||
| NC | LM6-3001PB | ||||
| NO+NC | |||||
| Two wire system | NO | LM6-3001LA | |||
| NC | LM6-3001LA | ||||
| AC90-250VAC | SCR Control-lable silicon | NO | LM6-2001A | ||
| NC | LM6-2001B | ||||
| NO+NC | |||||
| Relay output | |||||
| Control output | DC | 200mA | |||
| SCR/Relay | |||||
| Output vol;tage drop DC/AC | DC (NPN PNP) type 3V or less,Two wire 3.9Vor less, AC 10Vor less DC<3V AC>10V | ||||
| Consumption current | DC (NPN PNP) type 12V 8mA,24V 15mA , AC 10mA or less DC<15mA, AC>10mA | ||||
| standard detected object | 6*6*1 (A3 iron) | ||||
| Repeated precision | 0.01 | ||||
| DC/AC | 500Hz | ||||
| Working environment temperature | —25℃ ~ + 75 ℃ | ||||
| Insulation resistance | 50MΩ | ||||
| Shell material | Metal | ||||
| Protection grade | IP67 | ||||
| LM6 | Detection Distance | 2mm | |||
| Non-Flush | DC10-30VDC (6-36VDC) | NPN | NO | LM6-3002NA | |
| NC | LM6-3002NB | ||||
| NO+NC | |||||
| PNP | NO | LM6-3002PA | |||
| NC | LM6-3002PB | ||||
| NO+NC | |||||
| Two wire system | NO | LM6-3002LA | |||
| NC | LM6-3002LB | ||||
| AC90-250VAC | SCR Control-lable silicon | NO | LM6-2002A | ||
| NC | LM6-2002B | ||||
| NO+NC | |||||
| Relay output | |||||
| Control output | DC | 200mA | |||
| SCR/Relay | |||||
| Output vol;tage drop DC/AC | DC (NPN PNP) type 3V or less,Two wire 3.9Vor less, AC 10Vor less DC<3V AC>10V | ||||
| Consumption current | DC (NPN PNP) type 12V 8mA,24V 15mA , AC 10mA or less DC<15mA, AC>10mA | ||||
| standard detected object | 8*8*1 (A3 iron) | ||||
| Repeated precision | 0.01 | ||||
| DC/AC | 500Hz | ||||
| Working environment temperature | —25℃ ~ + 75 ℃ | ||||
| Insulation resistance | 50MΩ | ||||
| Shell material | Metal | ||||
| Protection grade | IP67 | ||||
