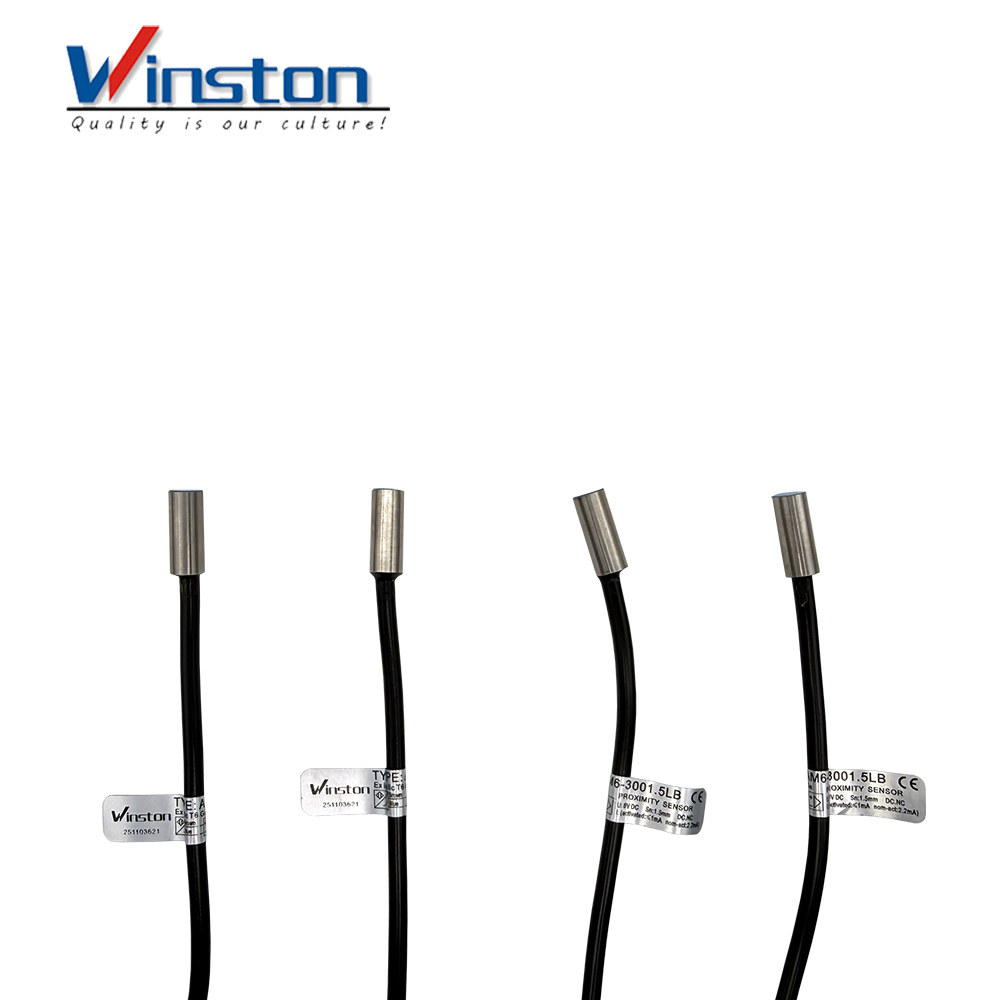

AM6-3001.5LB
Winston

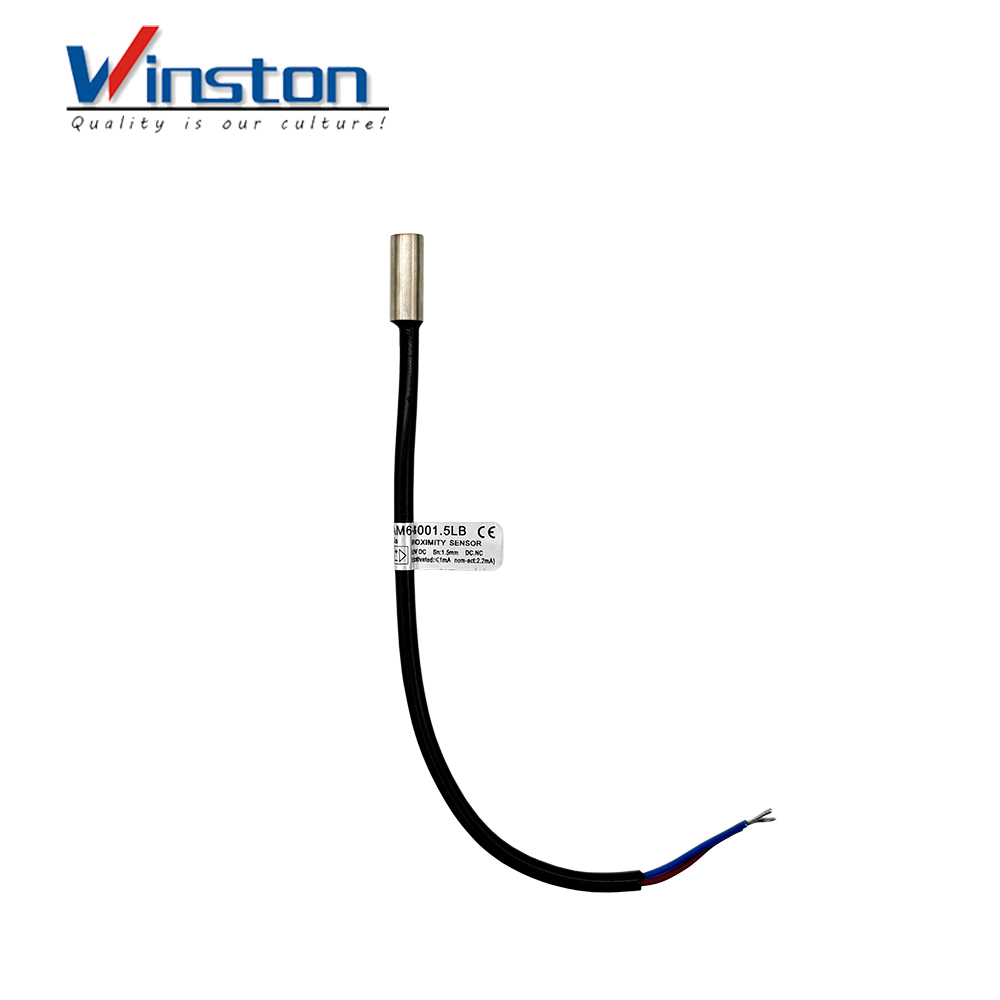

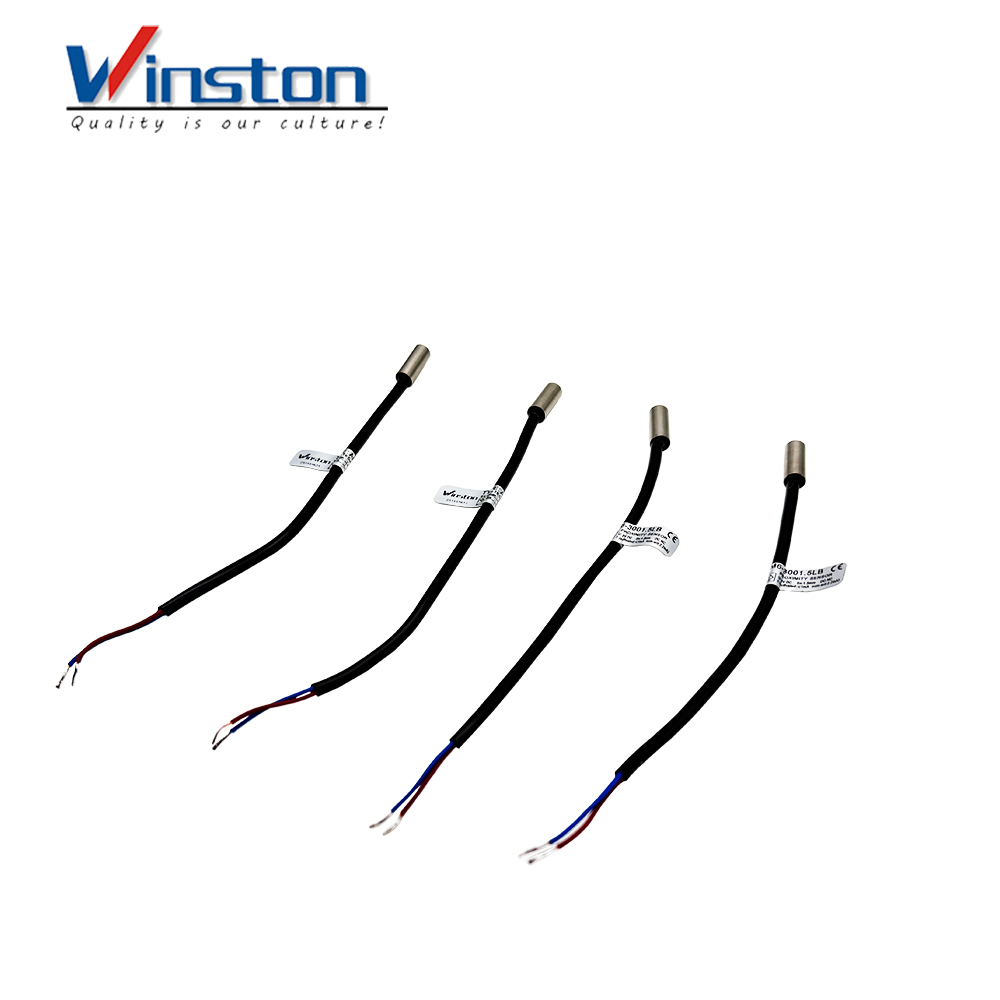

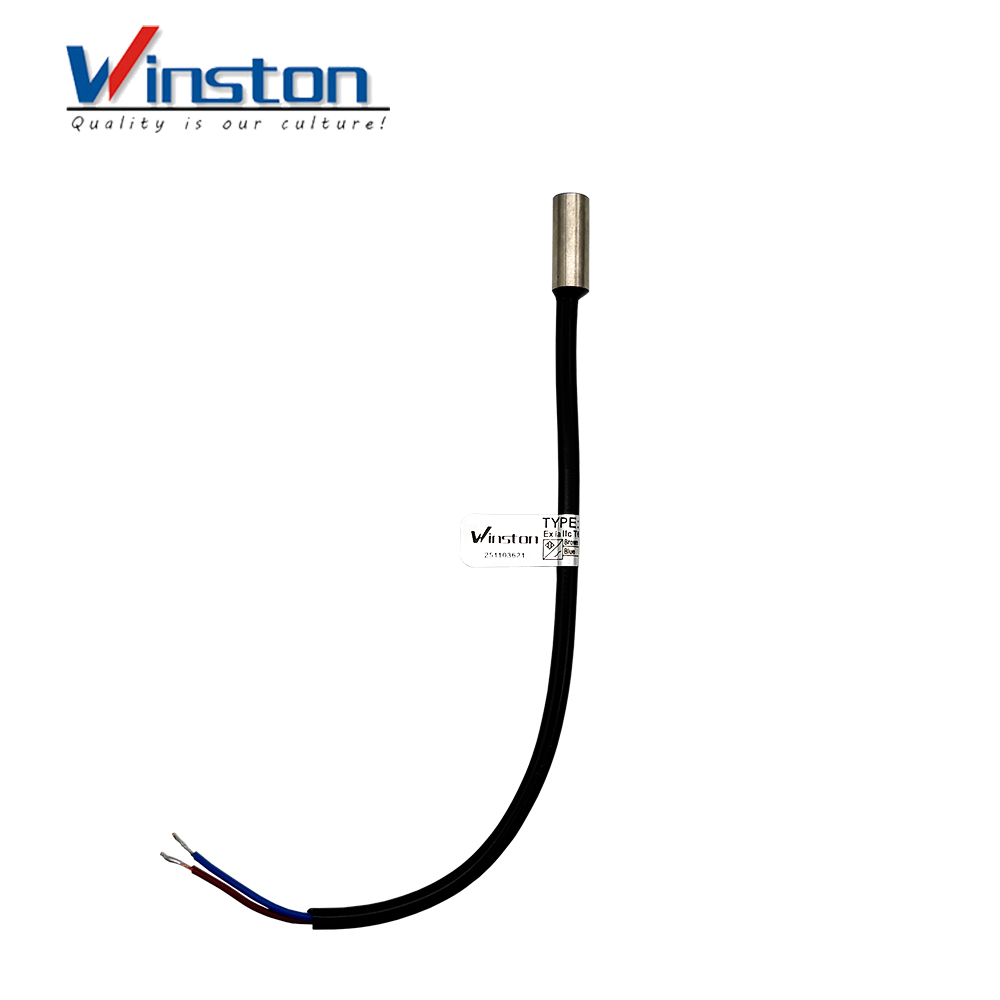

This is a flush-mountable, NAMUR-output inductive proximity sensor designed for functional safety (SIL 2) applications, particularly in hazardous areas. Its core function is to detect the presence of a metal (steel) target at a very close range.
Products Description
Certified for SIL 2 safety and major explosion protection standards worldwide—one sensor fits global hazardous area requirements, simplifying compliance and procurement.
Stainless steel housing, IP67 rating, and wide temperature range (-25…70°C) ensure reliable operation in harsh conditions, with high switching frequency (5000 Hz) for demanding applications.
Rare triple EPL ratings (Gb, Da, Mb) cover gas, dust, and mining environments—maximizing design flexibility and reducing inventory complexity.
5. High Durability, Lower Total CostPrecision-machined stainless steel and chemically resistant PBT sensing face deliver extended service life and reduced replacement costs in corrosive or abrasive settings.
6. Engineered for Predictable InstallationThis is a flush-mountable, NAMUR-output inductive proximity sensor designed for functional safety (SIL 2) applications, particularly in hazardous areas. Its core function is to detect the presence of a metal (steel) target at a very close range.
Products Description
Certified for SIL 2 safety and major explosion protection standards worldwide—one sensor fits global hazardous area requirements, simplifying compliance and procurement.
Stainless steel housing, IP67 rating, and wide temperature range (-25…70°C) ensure reliable operation in harsh conditions, with high switching frequency (5000 Hz) for demanding applications.
Rare triple EPL ratings (Gb, Da, Mb) cover gas, dust, and mining environments—maximizing design flexibility and reducing inventory complexity.
5. High Durability, Lower Total CostPrecision-machined stainless steel and chemically resistant PBT sensing face deliver extended service life and reduced replacement costs in corrosive or abrasive settings.
6. Engineered for Predictable InstallationGeneral specifications | ||
Switching function | Normally closed (NC) | |
Output type | NAMUR | |
Raled operating distance | Sn | 1.5 mm |
Installation | flush | |
Assured operating distance | Sa | 0 ... 1.35 mm |
Reduction factor rai | 0.22 | |
Reduction factor rcu | 0.19 | |
Reduction factor r304 | 0.65 | |
Output type | 2-wire | |
Nominal ratings | ||
Nominal voltage | Uo | 8.2 V(Ri approx.1 kΩ) |
Switching frequency | f | 0 ... 5000 Hz |
Hysteresis | H | typ.5% |
Suitable for 2:1 technology | yes ,Reverse polarity protection diode not required | |
Current consumption | ||
Measuring plate not detected | ≥2 mA | |
Measuring plate detected | ≤0.95mA | |
Functional safety related parameters | ||
Safety integrity Level (SlL) | SIL2 | |
Compliance with standards and directives | ||
Standard conformity | ||
NAMUR | EN 60947-5-6IEC 60947-5-6:1999 | |
Standards | EN IEC 60947-5-2 | |
Approvals and certificates | ||
IECEx approval | ||
Equipment protection level Gb | IECEx PTB 11.0037X | |
Equipment protection level Da | IECEx PTB 11.0037X | |
Equipment protection level Mb | IECEx PTB 11.0037X | |
ATEX approval | ||
Equipment protection level Gb | PTB 00 ATEX 2048 X | |
Equipment protection level Da | PTB 00 ATEX 2048 X | |
UL approval | cULus Listed Load Type: General Purpose Circuitry:Class 2 Power Source Enclosure Type Rating:Type 1 Supply/Switching Voltage: 8.2 V DC | |
CCC approval | ||
Hazardous Location | 2020322315002256 | |
CML approval | on request | |
ANZEx | 18.3018X | |
Ambient conditions | ||
Ambient temperature | -25 ... 70°C (-13 ... 158 °F) | |
Mechanical specifications | ||
Connection type | flexible leads PVC | |

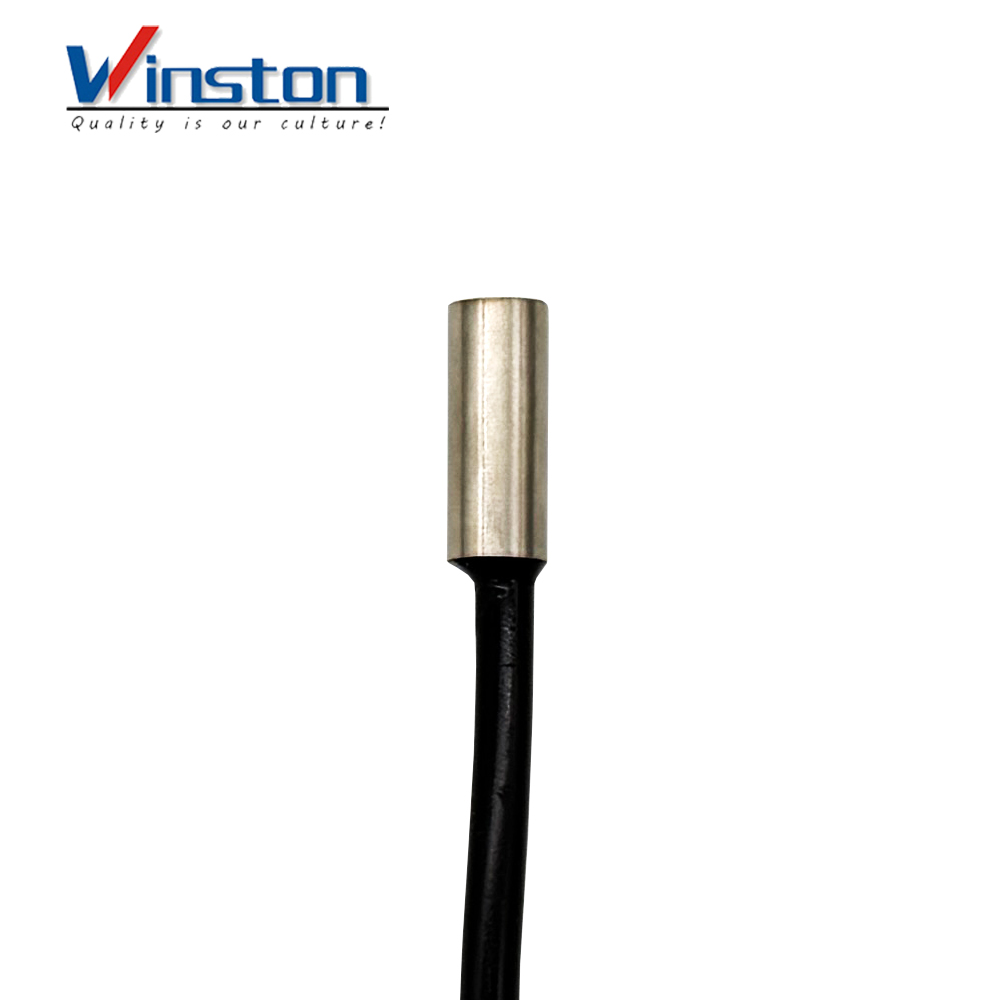

Housing material | Stainless steel 1.4305/A1S1 303 | |
Sensing face | PBT | |
Degree of protection | IP67 | |
Cable | ||
Material | PVC | |
Core cross section | 0.14 mm^2 | |
Length | L | 110 mm |

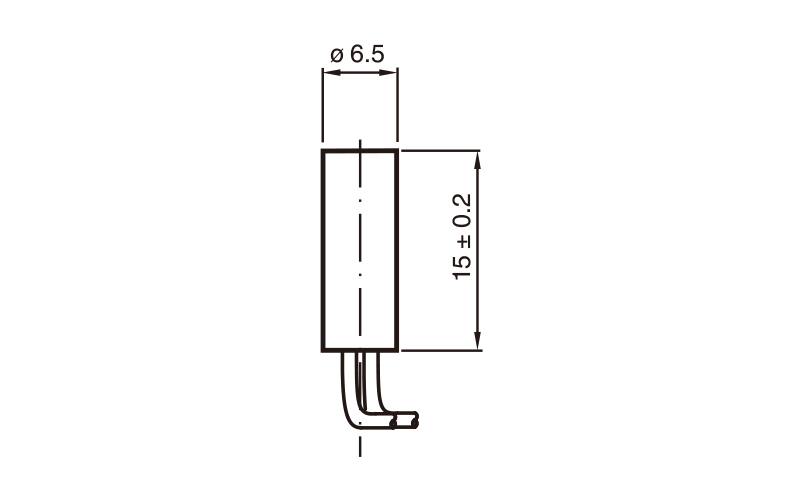

Dimensions | ||
Length | 15 mm | |
Diameter | 6.5 mm | |
General information | ||
Use in the hazardous area | see instruction manuals |
General specifications | ||
Switching function | Normally closed (NC) | |
Output type | NAMUR | |
Raled operating distance | Sn | 1.5 mm |
Installation | flush | |
Assured operating distance | Sa | 0 ... 1.35 mm |
Reduction factor rai | 0.22 | |
Reduction factor rcu | 0.19 | |
Reduction factor r304 | 0.65 | |
Output type | 2-wire | |
Nominal ratings | ||
Nominal voltage | Uo | 8.2 V(Ri approx.1 kΩ) |
Switching frequency | f | 0 ... 5000 Hz |
Hysteresis | H | typ.5% |
Suitable for 2:1 technology | yes ,Reverse polarity protection diode not required | |
Current consumption | ||
Measuring plate not detected | ≥2 mA | |
Measuring plate detected | ≤0.95mA | |
Functional safety related parameters | ||
Safety integrity Level (SlL) | SIL2 | |
Compliance with standards and directives | ||
Standard conformity | ||
NAMUR | EN 60947-5-6IEC 60947-5-6:1999 | |
Standards | EN IEC 60947-5-2 | |
Approvals and certificates | ||
IECEx approval | ||
Equipment protection level Gb | IECEx PTB 11.0037X | |
Equipment protection level Da | IECEx PTB 11.0037X | |
Equipment protection level Mb | IECEx PTB 11.0037X | |
ATEX approval | ||
Equipment protection level Gb | PTB 00 ATEX 2048 X | |
Equipment protection level Da | PTB 00 ATEX 2048 X | |
UL approval | cULus Listed Load Type: General Purpose Circuitry:Class 2 Power Source Enclosure Type Rating:Type 1 Supply/Switching Voltage: 8.2 V DC | |
CCC approval | ||
Hazardous Location | 2020322315002256 | |
CML approval | on request | |
ANZEx | 18.3018X | |
Ambient conditions | ||
Ambient temperature | -25 ... 70°C (-13 ... 158 °F) | |
Mechanical specifications | ||
Connection type | flexible leads PVC | |
Housing material | Stainless steel 1.4305/A1S1 303 | |
Sensing face | PBT | |
Degree of protection | IP67 | |
Cable | ||
Material | PVC | |
Core cross section | 0.14 mm^2 | |
Length | L | 110 mm |
Dimensions | ||
Length | 15 mm | |
Diameter | 6.5 mm | |
General information | ||
Use in the hazardous area | see instruction manuals |
