LM8 Flush type 1 mm detection NPN PNP proximity sensor switch

Availability:
Quantity:
Inquire Add to Basket

  • LM8

  • WINSTON


Model NO.Detection distanceDetection distanceOutputType
FormState
LM8-3001NA1mm

DC6-36V

AC90-250V

NPNNOFlush
LM8-3001NBNC
LM8-3001NCNO+NC
LM8-3001PAPNPNC
LM8-3001PBNO
LM8-3001PCNO+NC
LM8-3001LATwo wire systemNO
LM8-2001LBNC
LM8-2001ASCR Control label siliconNO
LM8-2001BNC
LM8-3002NA2mm

DC6-36V

AC90-250V

NPNNONon-flush
LM8-3002NBNC
LM8-3002PAPNPNO
LM8-3002PBNC
LM8-3002LATwo wire systemNO
LM8-3002LBNC
LM8-2002ASCR Control label siliconNO
LM8-2002BNC

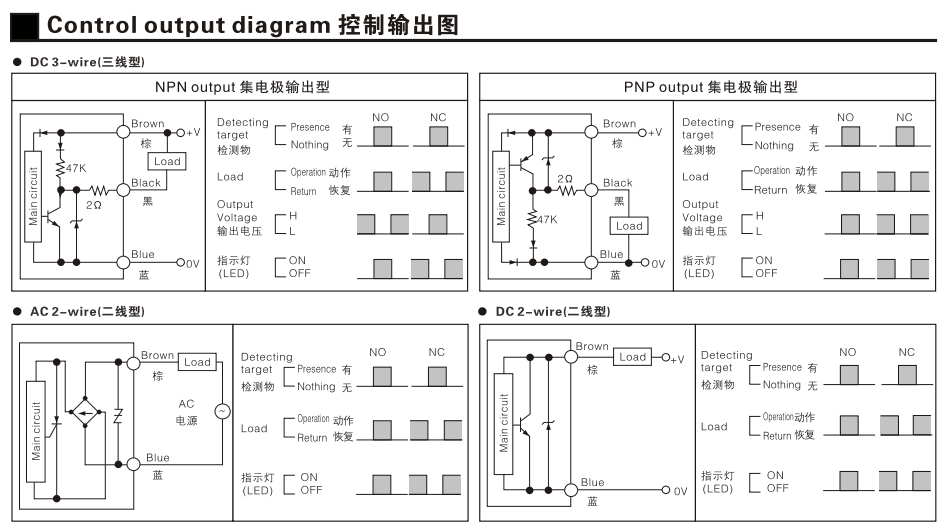

proximity diagram.png

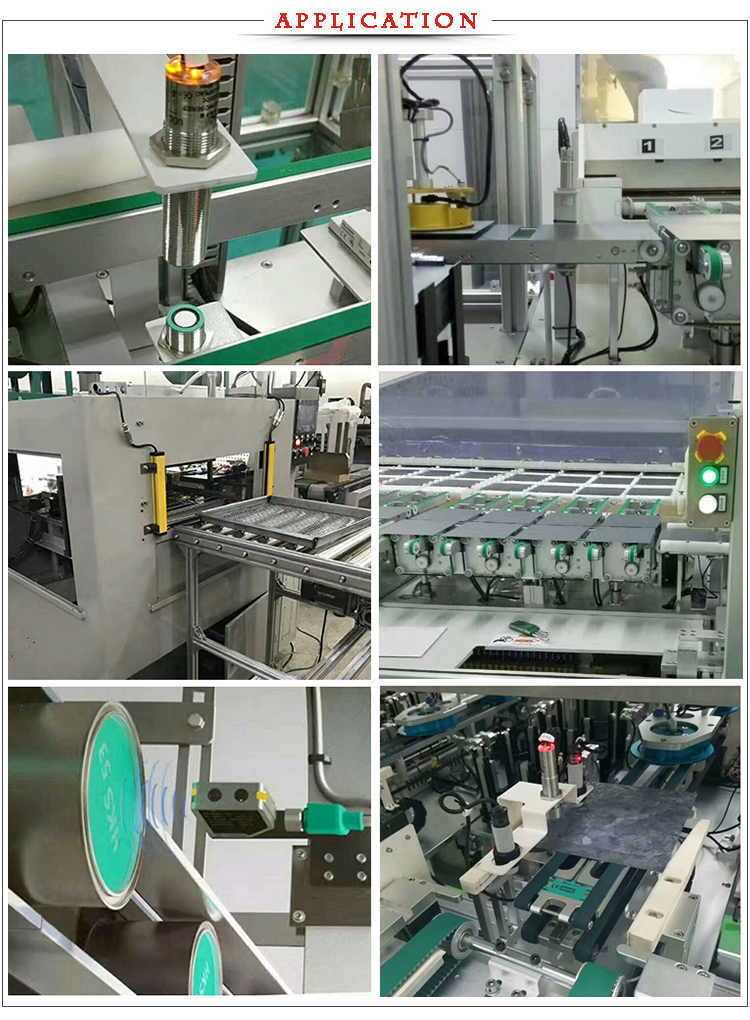

application (2).jpg
