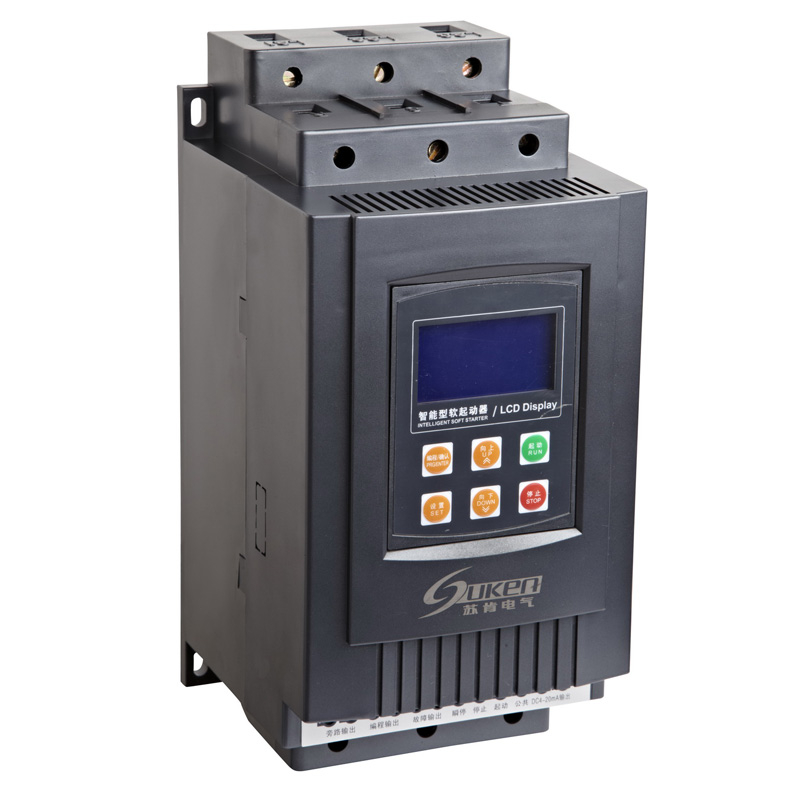

WSTR3000 5.5KW to 55KW Motor soft starter

Share to:

WSTR3000 5.5KW to 55KW Motor soft starter

Quantity:



Inquire Add to Basket

Model:
WSTR3000 5.5KW to 55KW
Standard:
CE CCC
Trademark:
Winston
Origin:
Made in China
Packing:
Export standard carton box
Unit:
PCS
Min order:
1
TransTime:
Within 3days after get payment.
Transportation:
6
Payment:
T/T

General:

WSTR-3000 series Soft Starter is a new type start-up equipment which integrates electric force and electron techniques, computer technique and modern control theory . It is the new generation product to replace the conventional Star-delta Starter , Self-coupling voltage-drop Starter and Magnetic control voltage-drop Starter.

Mail function:

This Motor Soft Starter can reduce the starting current of Motor and the power-distribution capacity to Motor effectively , so it could save the cost .

Can reduce the starting stress of motor and other loading equipments , so that lengthen their service life .

The function of soft stopping can solve effectively the surging problem of inertia system when stopping . The conventional motor starting equipments can not realize it .

The perfect and reliable protection features , can give the effective protection to the operator's safety as well as the motor and matched equipments.

The application of intelligent and network technique make the WSTR-3000 type Soft Starter meet the high –speed development of Electrical force automated technique effectively .

Model and explain:

The Installation Dimensions

The External shape and installation dimensions of 5.5KW-55KW

Specifications	The rated power of motor (KW)	External shape dimensions(mm)			Installation dimensions(mm)			NW (kg)
Specifications	The rated power of motor (KW)	W1	H1	D	W2	H2	d	NW (kg)
WSTR-3000-5.5-3	5.5	143	270	160	129	247	M6	＜3.5
WSTR-3000-7.5-3	7.5	143	270	160	129	247	M6	＜3.5
WSTR-3000-011-3	11	143	270	160	129	247	M6	＜3.5
WSTR-3000-015-3	15	143	270	160	129	247	M6	＜3.5
WSTR-3000-18.5-3	18.5	143	270	160	129	247	M6	＜3.5
WSTR-3000-022-3	22	143	270	160	129	247	M6	＜3.5
WSTR-3000-030-3	30	143	270	160	129	247	M6	＜3.5
WSTR-3000-037-3	37	143	270	160	129	247	M6	＜3.5
WSTR-3000-045-3	45	143	270	160	129	247	M6	＜3.5
WSTR-3000-055-3	55	143	270	160	129	247	M6	＜3.5

Note : The rated power of motor in the above form is the maximum rated value , generally , the values of matched motor should not be more than this value .

The External shape and installation dimensions of 75KW-560KW

Specifications	The rated power of motor (KW)	External shape dimensions(mm)			Installation dimensions(mm)			NW (kg)
Specifications	The rated power of motor (KW)	W1	H1	D	W2	H2	d	NW (kg)
WSTR-3000-075-3	75	260	470	200	230	440	M8	＜20
WSTR-3000-090-3	90	260	470	200	230	440	M8	＜20
WSTR-3000-115-3	115	260	470	200	230	440	M8	＜20
WSTR-3000-132-3	132	260	470	200	230	440	M8	＜20
WSTR-3000-160-3	160	260	470	200	230	440	M8	＜20
WST-3000-185-3	185	260	470	200	230	440	M8	＜20
WST-3000-200-3	200	260	470	200	230	440	M8	＜20
WST-3000-250-3	250	290	500	200	260	470	M8	＜23
WST-3000-280-3	280	290	500	200	260	470	M8	＜23
WSTR-3000-320-3	320	290	500	200	260	470	M8	＜23
WSTR-3000-400-3	400	400	555	200	370	525	M8	＜26
WSTR-3000-450-3	450	400	555	200	370	525	M8	＜26
WSTR-3000-500-3	500	400	555	200	370	525	M8	＜26
WSTR-3000-560-3	560	400	555	200	370	525	M8	＜26
