Winston JD1A-90 DC 90V Single phase AC Motor Activactor Speed Control

Availability:
Quantity:
Inquire Add to Basket

  • JD1A-90

  • Winston

Model Explanation



Model JD1A-11 JD1A-40 JD1A-90
Power supply AC220V±10%     Frequency 50~60Hz
Maximum output rating DC 90V 3A DC 90V 5A DC 90V 8A
Controllable motor power 0.55kw ~ 11kw 11kw ~ 40kw 40kw ~ 90kw
Tachogenerator Voltage speed ratio when three phase ≤2V/100r/min
Speed change rate ≤2.5%
Speed stabilization accuracy ≤1%
Speed range 100~1420 r/min 130~1420 r/min
Size(mm)   245×150×135

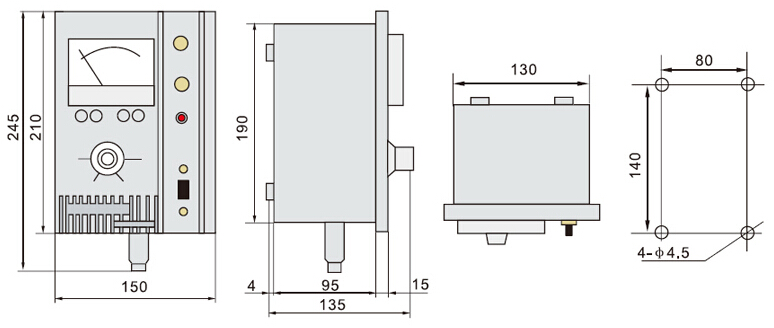

JD1A-90 dimension.jpg

JD1A wiring.jpg

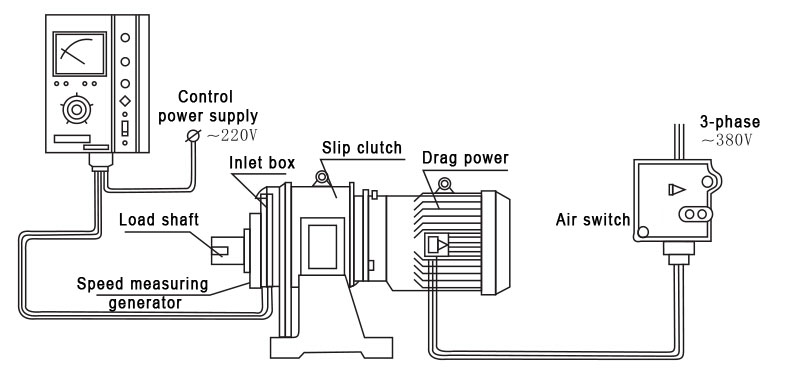

JD1A wiring2.jpg

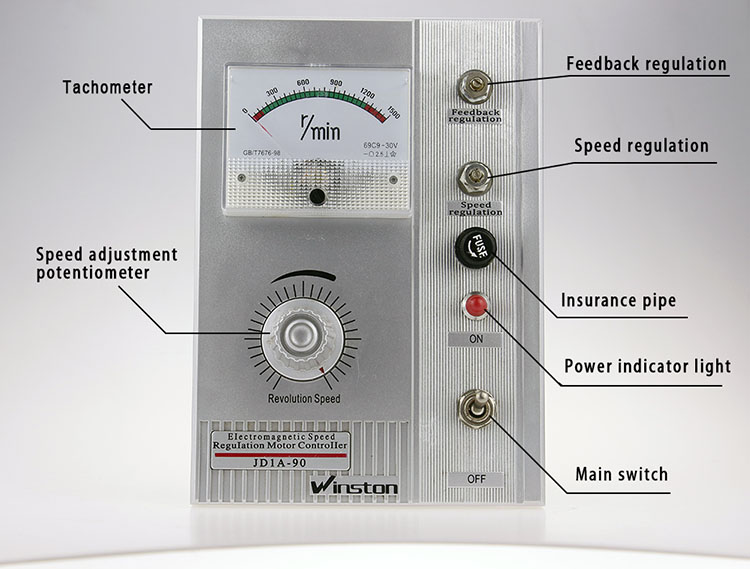

JD1A detail.jpg


jd1a package.jpg
