Winston WSTRD-F3000 Built in Bypass AC Motor Smart Soft Starter

Availability:
Quantity:
Inquire Add to Basket

  • WSTRD-F3000

  • Winston

Winston WSTRD-F3000 Built in Bypass AC Motor Smart Soft Starter


Products Description

    The main structure of WSTRD-F3000 series soft starter shell is a metal shell wall mounting structure. The upper panel and control keyboard are made of plastic shell, and the metal shell adopts advanced surface powder spraying and plastic spraying technology, with exquisite color and beautiful appearance.

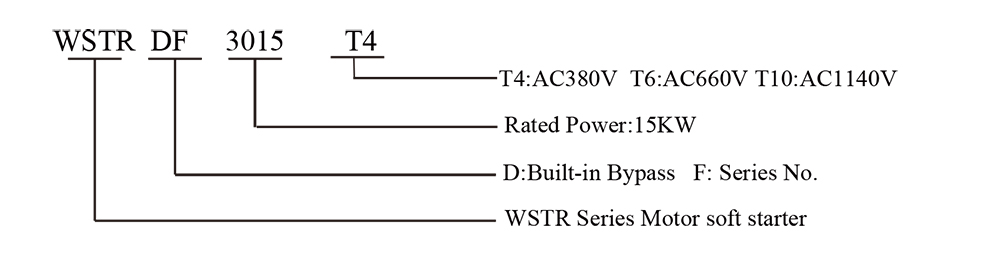

Model Explanation

型号标签

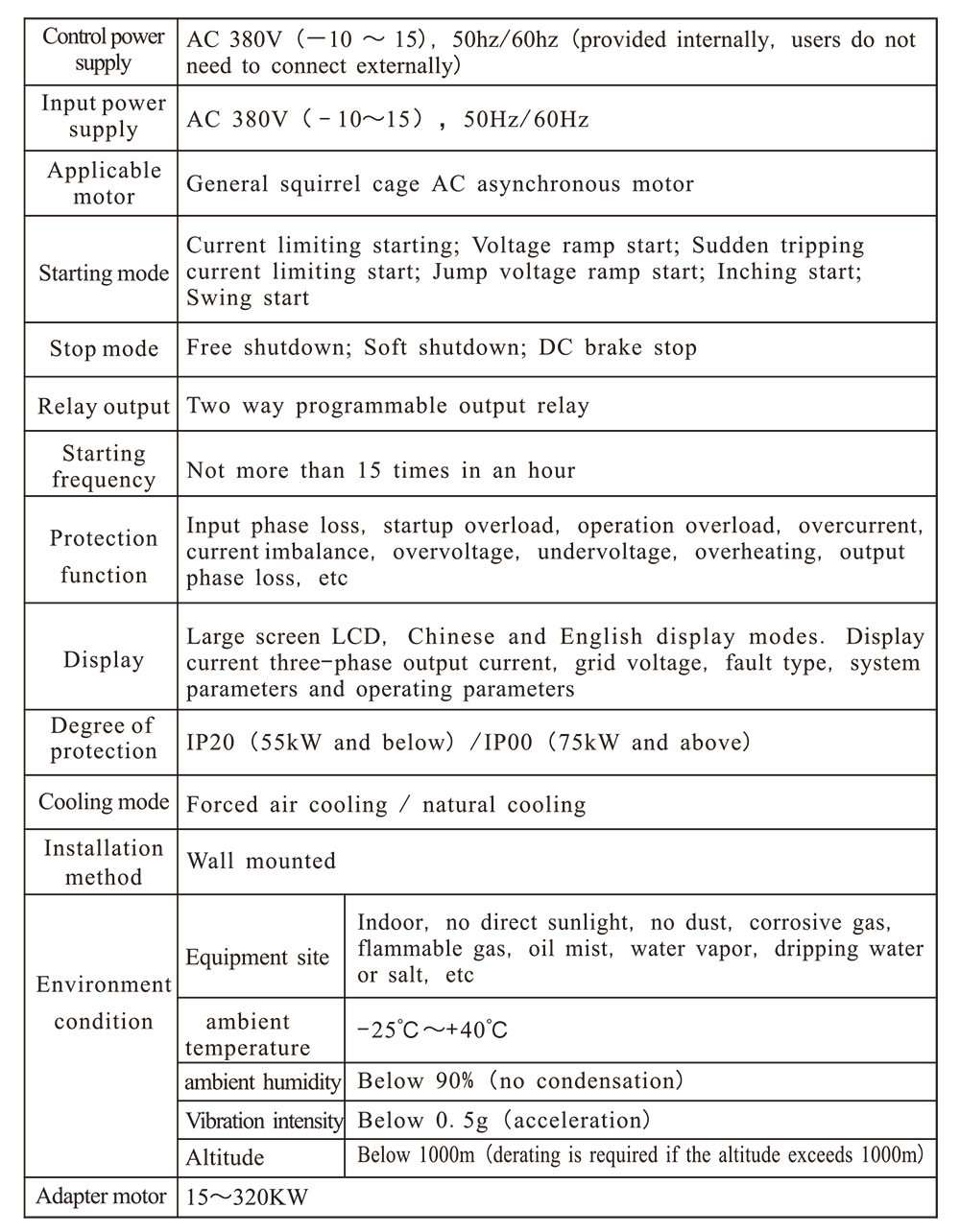

Specifications

参数

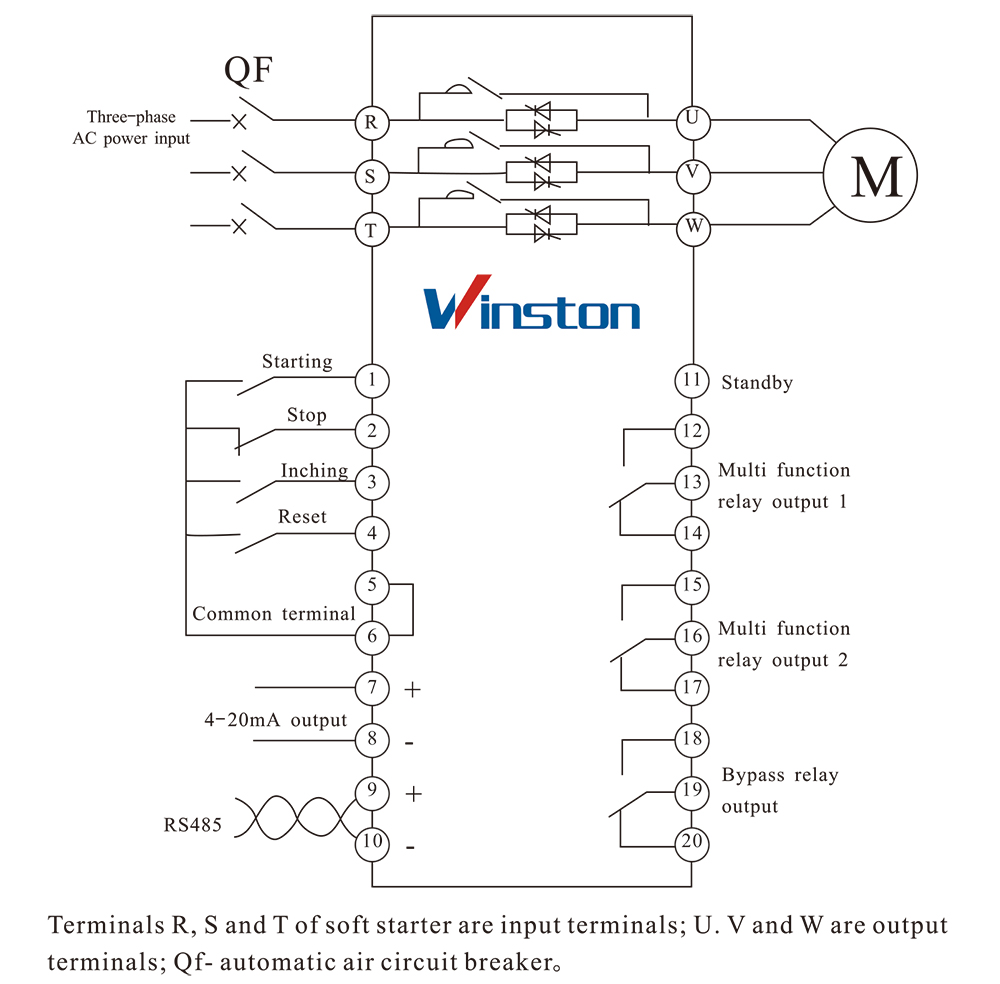

Wiring diagram

接线

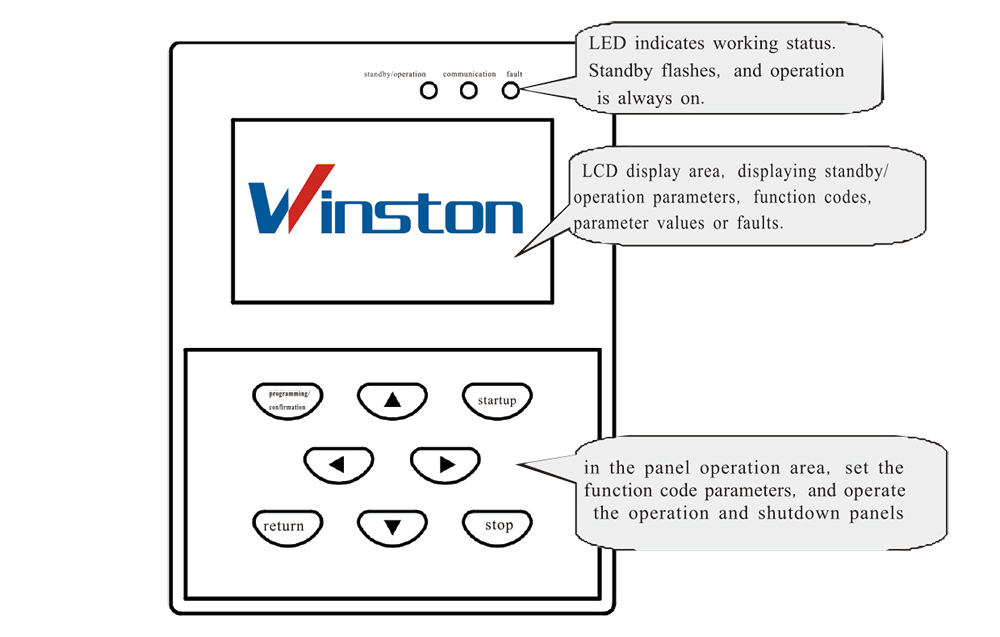

Control panel

面板

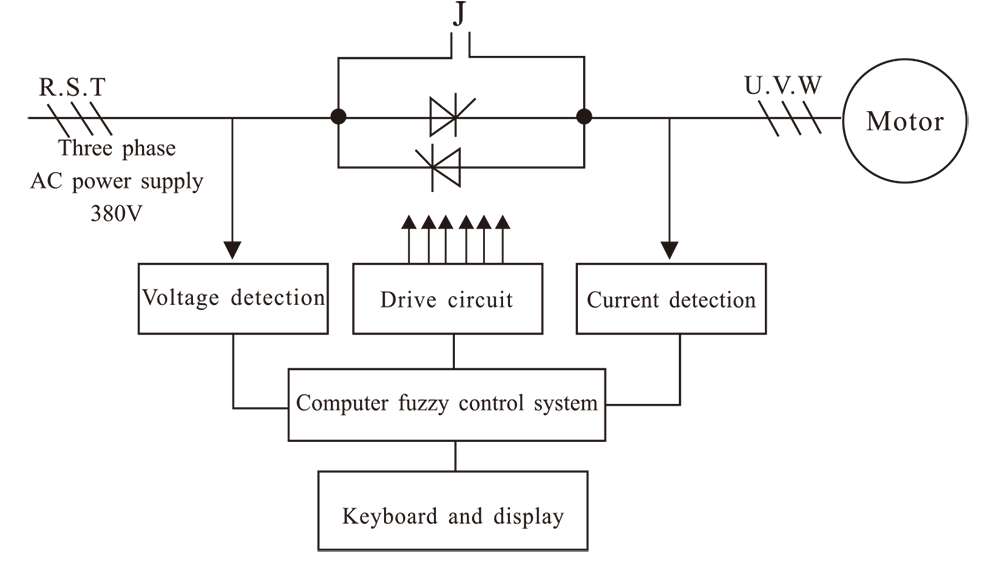

Principle box Figure

原理

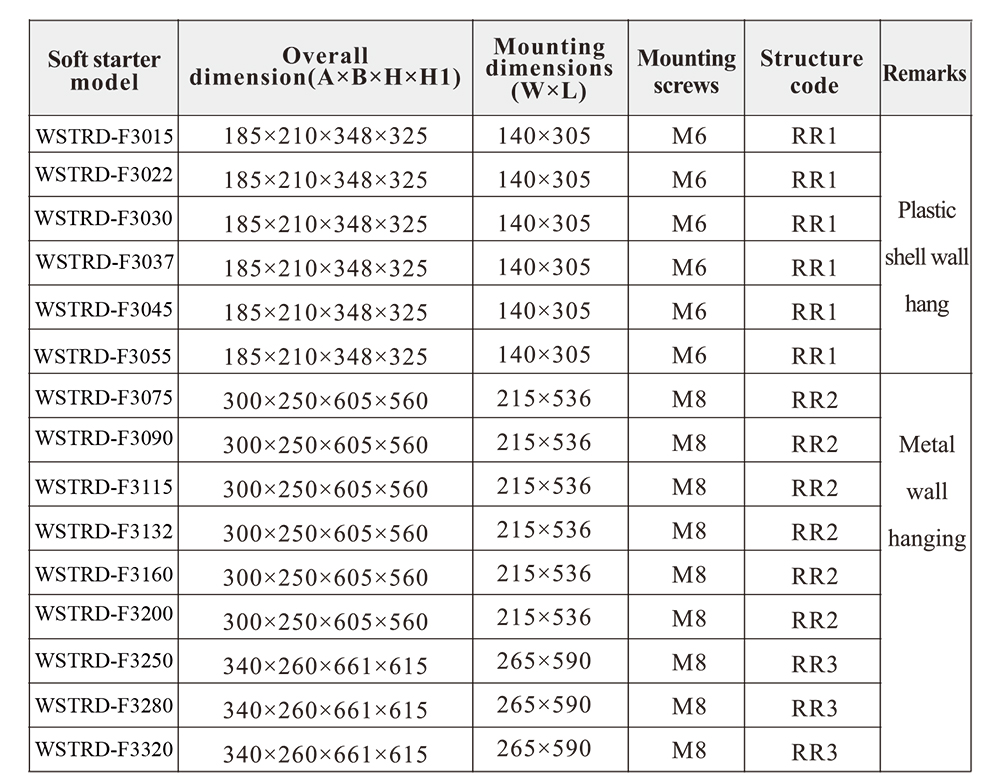

Dimension

尺寸

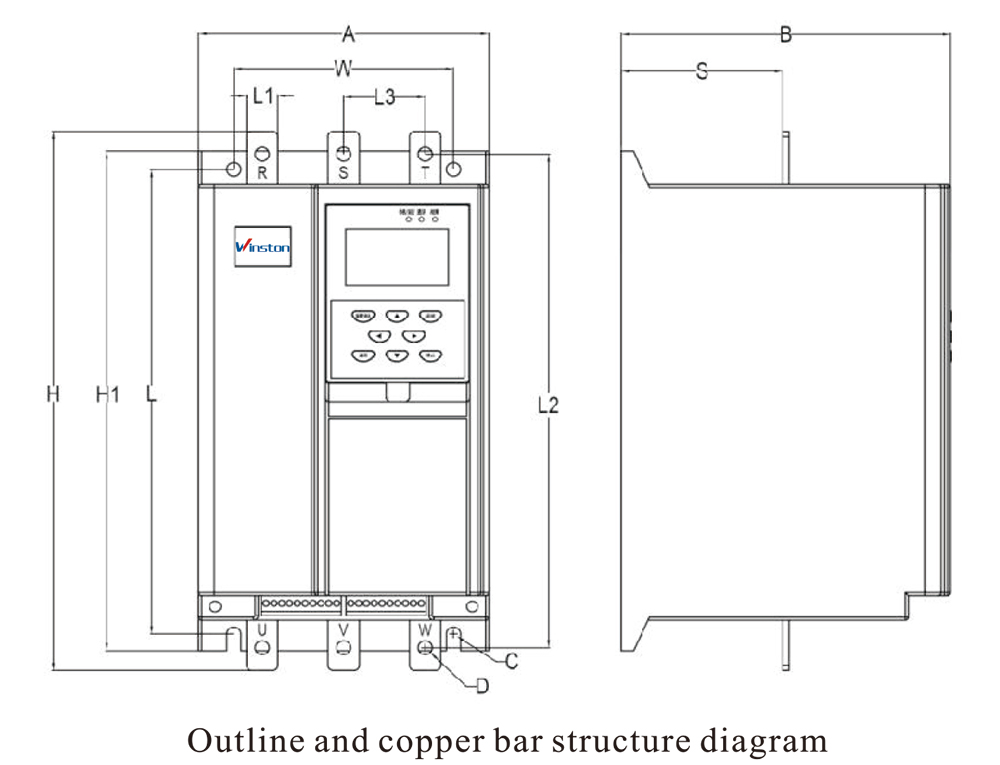

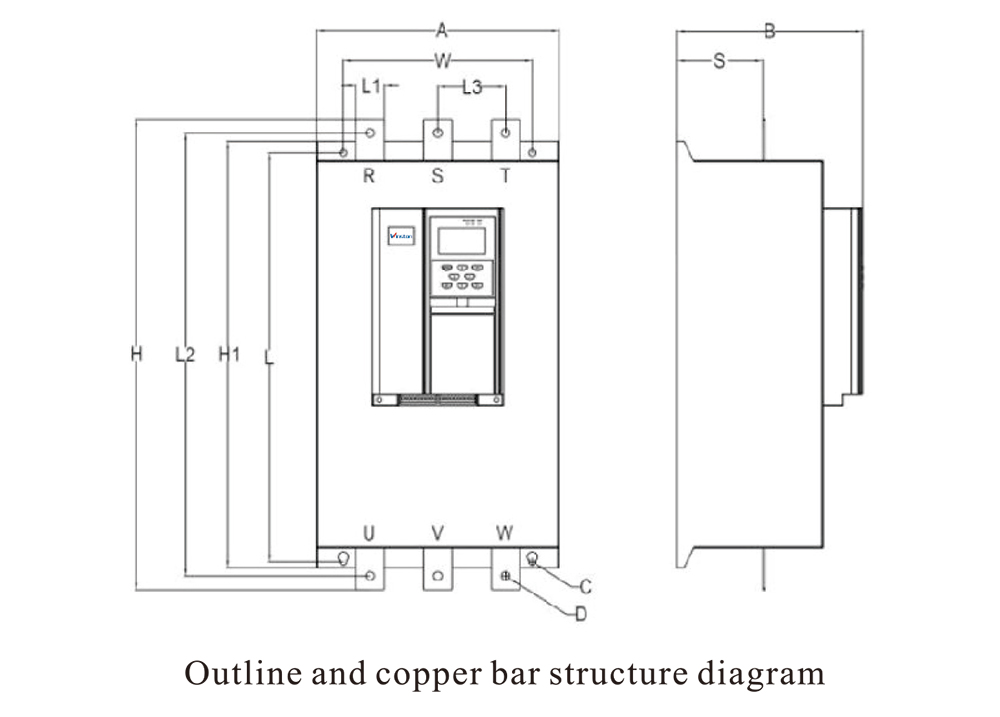

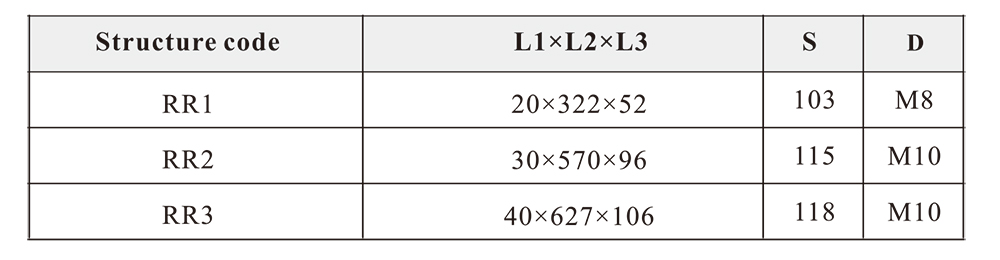

Installation dimension of copper bar

外尺寸尺寸2尺寸3


Packaging & Shipping

说明板块_02
