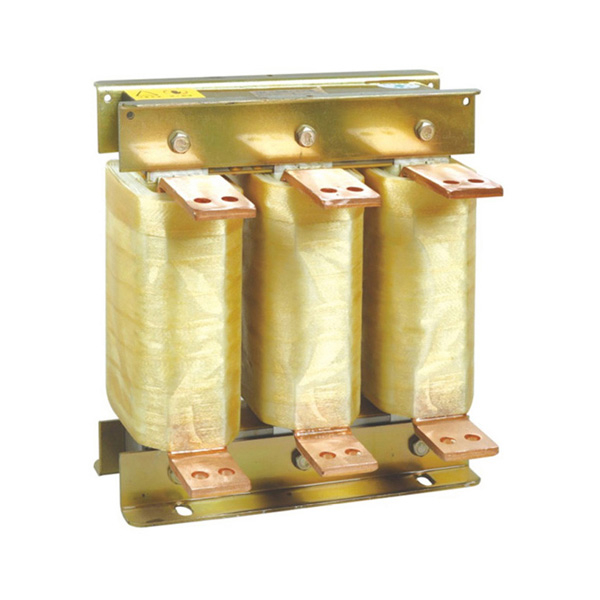

WST-OCL
Winston

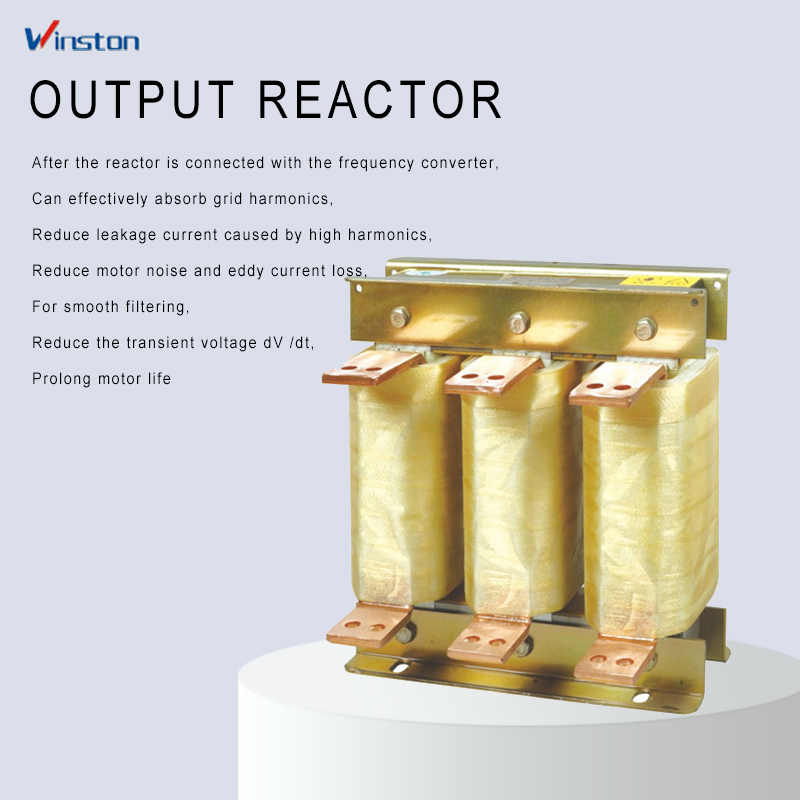

Products Description
The system is used as the output reactor of the inverter for the output side of the inverter,
sources such as rectifier and converter in the low-voltage power grid, the high order harmonics
produced by the system will seriously harm the safe operation of the main transformer and
Specifications
1. Pressure drop: 1%-2%
2. Rated working voltage: φ380V/50Hz or 660V/50Hz
3. Rated operating current: 5A to 2000A@40℃
4. Electric strength: iron core winding 3000VAC10Ma/1min
5. Insulation resistance: 1000DC insulation resistance of iron core winding & GT; 100 m Ω
6. Reactor noise: less than 65dB(with the reactor horizontal distance of 1 meter test)
7. Protection class: IP00
8. Insulation grade: F grade or above
9. Product implementation standard: IEC289:1987 reactor
Gb10229-88 reactor (EQVIEC289:1987)
Jb9644-1999 Reactor for semiconductor electric drive

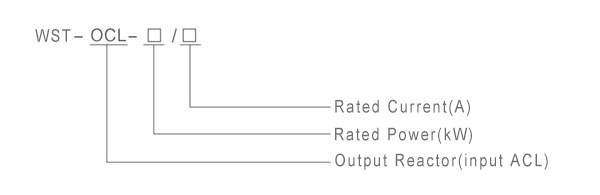

Model Explanation

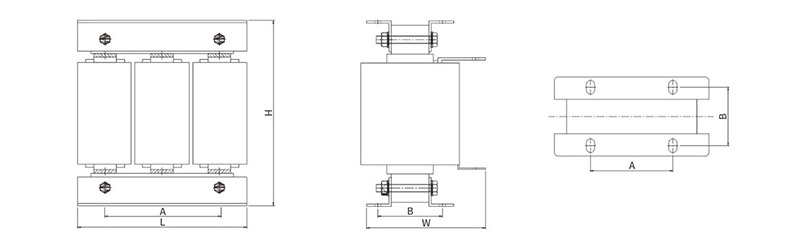

Dimension
Technical Parameters
| Incoming reactor current (A) | Frequency converter governor power KW | Overall Dimensions L×W×H(mm) | A×B |
| WCT-OCL-8 | 0.75(1.5) | 155*105*140 | 80*65-10 |
| WCT-OCL-10 | 2.5 | 155*105*140 | 80*65-10 |
| WCT-OCL-10 | 4 | 155*110*140 | 80*65-10 |
| WCT-OCL-15 | 5.5 | 155*110*140 | 80*65-10 |
| WCT-OCL-20 | 7.5 | 155*115*140 | 80*65-10 |
| WCT-OCL-30 | 11 | 155*115*140 | 80*65-10 |
| WCT-OCL-40 | 15 | 155*120*140 | 80*75-10 |
| WCT-OCL-50 | 18.5 | 155*130*140 | 80*85-10 |
| WCT-OCL-60 | 22 | 155*135*140 | 80*85-10 |
| WCT-OCL-80 | 30 | 190*145*155 | 80*85-10 |
| WCT-OCL-110 | 37 | 190*150*155 | 80*85-10 |
| WCT-OCL-125 | 45 | 190*155*155 | 80*85-10 |
| WCT-OCL-150 | 55 | 225*150*225 | 120*80-12 |
| WCT-OCL-200 | 75 | 225*160*225 | 120*90-12 |
| WCT-OCL-250 | 90(93) | 225*165*225 | 120*90-12 |
| WCT-OCL-280 | 110 | 225*170*225 | 120*90-12 |
| WCT-OCL-300 | 132 | 260*170*255 | 135*95-12 |
| WCT-OCL-400 | 160 | 260*180*255 | 135*105-12 |
| WCT-OCL-450 | 187 | 260*185*255 | 135*105-12 |
| WCT-OCL-500 | 200 | 260*190*255 | 135*105-12 |
| WCT-OCL-540 | 220 | 290*200*305 | 135*105-12 |
| WCT-OCL-600 | 250 | 290*210*305 | 135*115-12 |
| WCT-OCL-700 | 280 | 290*215*305 | 135*115-12 |
| WCT-OCL-800 | 315 | 290*240*305 | 135*145-12 |
| WCT-OCL-1000 | 400 | 290*260*305 | 135*165-12 |
| WCT-OCL-1300 | 500 | 290*265*305 | 135*165-12 |
| WCT-OCL-1500 | 550 | 290*270*305 | 135*175-12 |
