WST-ACL
Winston
Products Description
1. The power supply to other equipment has obvious interference (interference, overvoltage)
2. Voltage imbalance between power supply phases > 1.8% of rated voltage
3. Very low impedance line (power transformer for frequency converter rating more than 10 times)
4. A large number of frequency converters installed on a line to reduce line current
5. Use COS <φ (power factor) to correct capacitance or power factor correction unit
Features
1. Rated working voltage: 380V/440V 50Hz
2. Rated working current: 5A to 1600A@ 40℃
3. Electrical strength: core 1 winding 3000VAC/50Hz/5mA/10s without arc breakdown (factory test)
4. Insulation resistance: 1000VDC insulation resistance value ≥100MV
5. Reactor noise: less than 65dB(with the reactor horizontal distance point 1 meter test)
6. Protection class: IP00
7. Insulation grade: F grade or above
8. Product implementation standard: IEC289:1987 reactor
GB10229-88 reactor (EQV IEC289:1987)
Jb9644-1999 Reactance for semiconductor electric drives

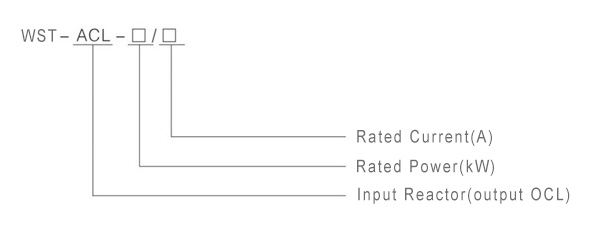

Model Explanation

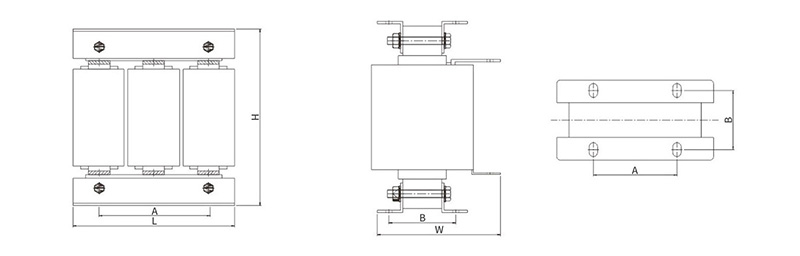

Dimension
Technical Parameters
| Incoming reactor current (A) | Frequency converter governor power KW | Overall Dimensions L×W×H(mm) | A×B |
| WST-ACL-8 | 0.75(1.5) | 155*105*140 | 80*65-10 |
| WST-ACL-10 | 2.5 | 155*105*140 | 80*65-10 |
| WST-ACL-10 | 4 | 155*110*140 | 80*65-10 |
| WST-ACL-15 | 5.5 | 155*115*140 | 80*75-10 |
| WST-ACL-20 | 7.5 | 155*120*140 | 80*75-10 |
| WST-ACL-30 | 11 | 155*125*140 | 80*75-10 |
| WST-ACL-40 | 15 | 155*130*140 | 80*85-10 |
| WST-ACL-50 | 18.5 | 155*135*140 | 80*85-10 |
| WST-ACL-60 | 22 | 155*140*140 | 80*85-10 |
| WST-ACL-80 | 30 | 190*145*155 | 80*85-10 |
| WST-ACL-110 | 37 | 190*170*155 | 80*105-10 |
| WST-ACL-125 | 45 | 225*160*215 | 120*85-12 |
| WST-ACL-150 | 55 | 225*150*225 | 120*80-12 |
| WST-ACL-200 | 75 | 225*155*225 | 120*80-12 |
| WST-ACL-250 | 90(93) | 225*165*225 | 120*90-12 |
| WST-ACL-280 | 110 | 225*170*225 | 120*90-12 |
| WST-ACL-300 | 132 | 260*160*255 | 135*85-12 |
| WST-ACL-400 | 160 | 260*170*255 | 135*95-12 |
| WST-ACL-450 | 187 | 260*175*255 | 135*95-12 |
| WST-ACL-500 | 200 | 260*180*255 | 135*95-12 |
| WST-ACL-540 | 220 | 290*190*305 | 135*95-12 |
| WST-ACL-600 | 250 | 290*200*305 | 135*105-12 |
| WST-ACL-700 | 280 | 290*205*305 | 135*105-12 |
| WST-ACL-800 | 315 | 290*210*305 | 135*110-12 |
Packaging & Shipping
