WST-CKDG
Winston
Products Description
In capacitive reactive compensation capacitor, often by harmonic current, closing the
influence of inrush current and operating over-voltage, which reduces the damage of
capacitance and power factor, therefore need in front-end reactor with series capacitor,
to suppress and absorb harmonic, protection of capacitor, to avoid the harmonic voltage,
a few impulse voltage current Improve the power quality, improve the power factor of
the system and prolong the service life of the capacitor.
Features
1. The product is divided into single phase, iron core dry type;
2. The iron core is made of fine cold rolled silicon steel sheet, which is punched and cut
Working environment
1. The altitude shall not exceed 2000m;
2. Operating ambient temperature -25 ℃ to +45 ℃, relative temperature does not exceed 90% :
3. There is no harmful gas and inflammable and explosive articles around;
4. The surrounding environment should have good ventilation conditions. If installed in
the cabinet, ventilation equipment should be added.
Specifications
1. Can be used for capacitor voltage: 0.23kV 0.28kV 0.3KV:
2. Reactance rate: 1%, 6%, 7%, 12%, 14%;
3. Voltage grade: 3kV/min
4. Insulation grade: B, F, H,
5. Noise: ≤65dB,
6. Overload capacity: ≤1.35 times of continuous work.

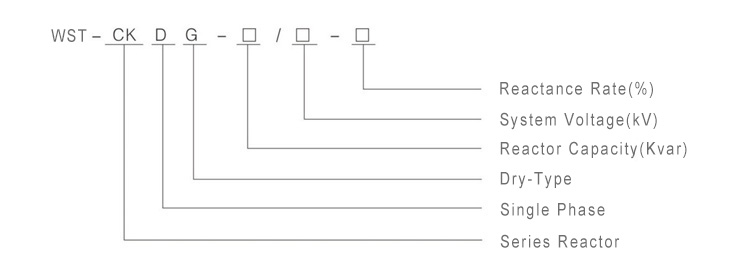

Model Explanation
Dimension
Technical Parameters
| Series reactor type for low voltage capacitors | Matching Capacitor Capacity(kVar) | Reactor Capacity (kVar) | Overall Dimensions L×W×H(mm) | Installation Dimensions A×B |
| WST-CKDG-0.3/0.28-6% | 5 | 0.3 | 115*140*135 | 90*65-6 |
| WST-CKDG-0.35/0.28-7% | 5 | 0.35 | 115*150*135 | 90*75-6 |
| WST-CKDG-0.6/0.28-6% | 10 | 0.6 | 132*160*150 | 100*90-6 |
| WST-CKDG-0.7/0.28-7% | 10 | 0.7 | 132*170*150 | 100*100-6 |
| WST-CKDG-0.9/0.28-6% | 15 | 0.9 | 150*170*160 | 120*103-8 |
| WST-CKDG-1.05/0.28-7% | 15 | 1.05 | 150*150*210 | 120*90-12 |
| WST-CKDG-1.2/0.28-6% | 20 | 1.2 | 150*160*210 | 120*100-12 |
| WST-CKDG-1.4/0.28-7% | 20 | 1.4 | 150*170*210 | 120*110-12 |
| WST-CKDG-1.5/0.28-6% | 25 | 1.5 | 150*175*210 | 120*110-12 |
| WST-CKDG-1.75/0.28-7% | 25 | 1.75 | 180*190*245 | 135*105-12 |
| WST-CKDG-1.8/0.28-6% | 30 | 1.8 | 180*195*245 | 135*105-12 |
| WST-CKDG-2.1/0.28-7% | 30 | 2.1 | 180*200*245 | 135*105-12 |
| WST-CKDG-2.4/0.28-6% | 40 | 2.4 | 180*210*245 | 135*115-12 |
