WST-CKSG Harmonic Filter Reactor Three Phase Series Reactor Produced

Availability:
Quantity:
  • WST-CKSG
  • Winston

WST-CKSG Harmonic Filter Reactor Three Phase Series Reactor Produced


Products Description


   Dry core series reactor is suitable for ac 50Hz, rated working voltage 6-35kV power system,

dry core series reactor is an important auxiliary equipment of reactive power compensation

device in power system. In capacitive reactive compensation capacitor, often by harmonic

current, closing the influence of inrush current and operating over-voltage, which reduces the

damage of capacitance and power factor, therefore need in front-end reactor with series

capacitor, to suppress and absorb harmonic,protection of capacitor, to avoid a few impulse

voltage current harmonic voltage current impact, improve power quality, improve system

power factor Extend the service life of the capacitor.


Features


1. The product is divided into three phases, iron core dry type;

2. The iron core is made of fine cold rolled silicon steel sheet, which is punched and cut by

    high speed punch, with small burrs,uniform rules, neat and beautiful lamination, ensuring

    the performance of low temperature rise and low noise of reactor operation;

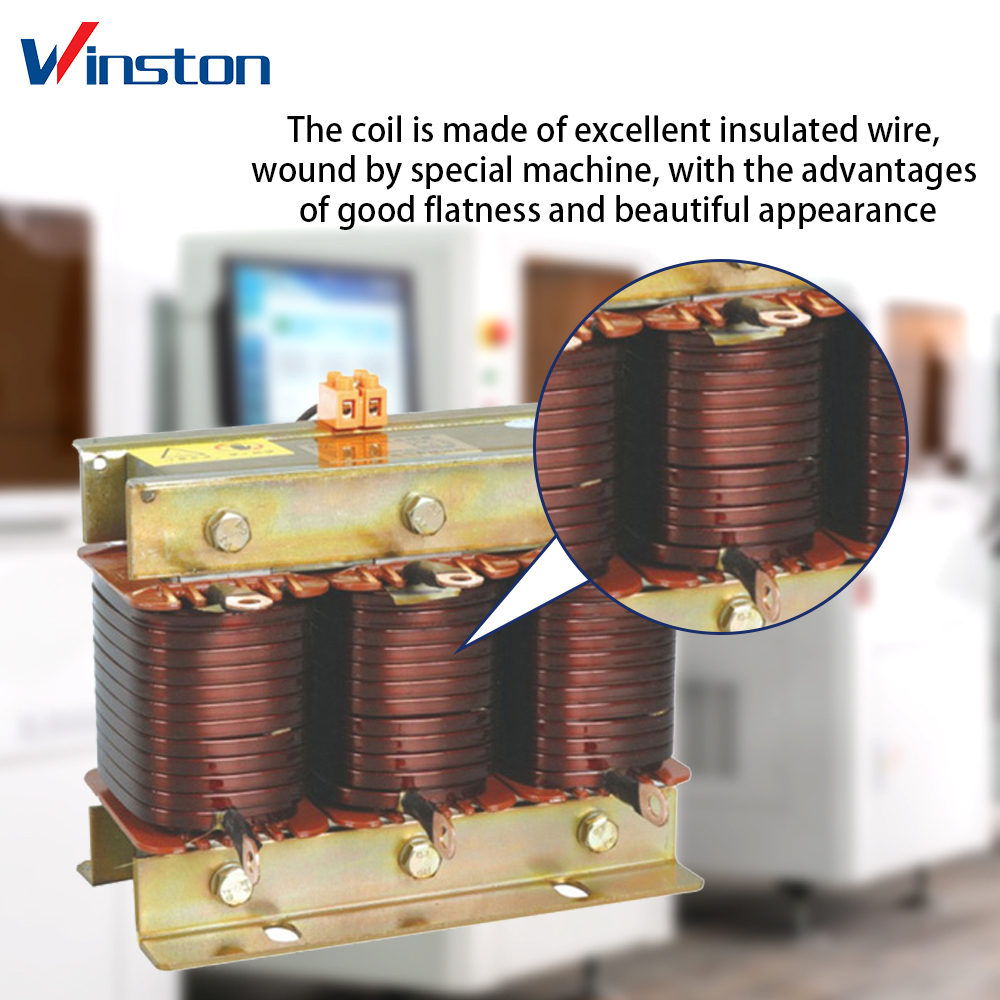

3. The coil is made of excellent insulated wire, wound by special machine, with the advantages

    of good flatness and beautiful appearance;

4. The reactor in the process of assembly, all is through anticorrosive processing, key clip with

    no magnetic material, and the preliminary drying and vacuum leaching paint a thermal drying

    curing this process, so that reactor coil and iron core solid become an organic whole, greatly

    reduces the run-time temperature rise and noise, effectively improve the quality factor of the

    reactor and reduce the effect of the harmonic.


Working environment


1. The altitude shall not exceed 2000m;

2. Operating ambient temperature -25 ℃ to +45 ℃, relative temperature does not exceed 90% :

3. There is no harmful gas and inflammable and explosive articles around;

4. The surrounding environment should have good ventilation conditions. If installed in the

    cabinet, ventilation equipment should be added.


Specifications


1. Can be used for capacitor voltage: 0.4kV 0.45kV 0.48kV 0.525kV 0.66kV 0.69kV;

2. Reactance rate: 1%, 6%, 7%, 12%, 14%;

3. Voltage grade: 3kV/min

4. Insulation grade: B, F, H,

5. Noise: ≤65dB,

6. Overload capacity: ≤1.35 times of continuous work

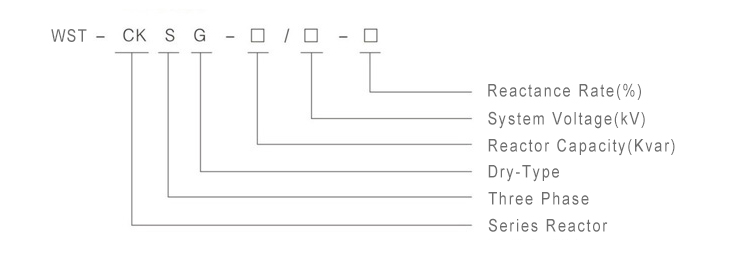

Model Explanation


01-1

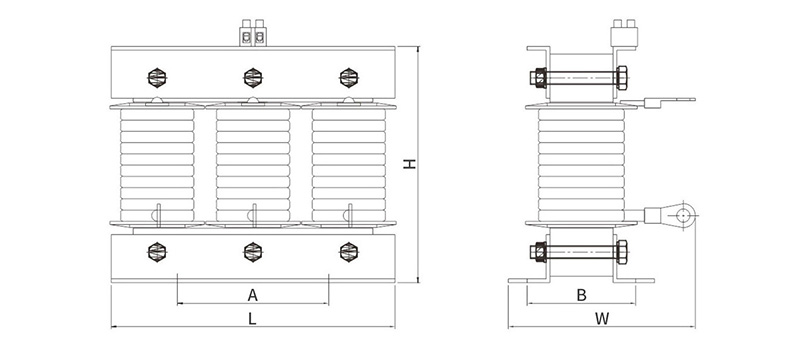

Dimension


02-1


Technical Parameters


Series reactor type for low voltage capacitors
Matching Capacitor Capacity(kVar)
Reactor Capacity
(kVar)
Overall Dimensions L×W×H(mm)
Installation Dimensions A×B
WST-CKSG-0.6/0.45-6%
10
0.6
155*135*165
80*75-8
WST-CKSG-0.7/0.45-7%
10
0.7
155*145*165
80*85-8
WST-CKSG-0.9/0.45-6%
15
0.9
190*140*185
80*85-8
WST-CKSG-1.05/0.45-7%
15
1.05
190*145*185
80*85-8
WST-CKSG-1.2/0.45-6%
20
1.2
190*150*185
80*85-8
WST-CKSG-1.4/0.45-7%
20
1.4
190*155*185
80*95-8
WST-CKSG-1.5/0.45-6%
25
1.5
190*160*185
80*95-8
WST-CKSG-1.75/0.45-7%
25
1.75
225*150*215
120*85-12
WST-CKSG-1.8/0.45-6%
30
1.8
225*155*215
120*85-12
WST-CKSG-2.1/0.45-7%
30
2.1
225*165*215
120*95-12
WST-CKSG-2.4/0.45-6%
40
2.4
225*185*215
120*105-12
WST-CKSG-2.8/0.45-7%
40
2.8
225*190*215
120*115-12
WST-CKSG-3.0/0.45-6%
50
3
225*195*215
120*115-12
WST-CKSG-3.5/0.45-7%
50
3.5
260*190*245
135*105-12
WST-CKSG-3.6/0.45-6%
60
3.6
260*195*245
135*105-12
WST-CKSG-4.2/0.45-7%
60
4.2
260*200*245
135*115-12
WST-CKSG-4.8/0.45-6%
80
4.8
260*205*245
135*115-12
WST-CKSG-5.6/0.45-7%
80
5.6
260*210*245
135*125-12



Packaging & Shipping
