SP3-80VA
Winston
| Mode code | SP3-80V | SP3-80VA | SP3-63T |
| Pole number | 2P (36mm) | ||
| Rated current | 40A, 63A, 80A | 1-40A, 1-63A, 1-80A | 1-40A, 1-63A |

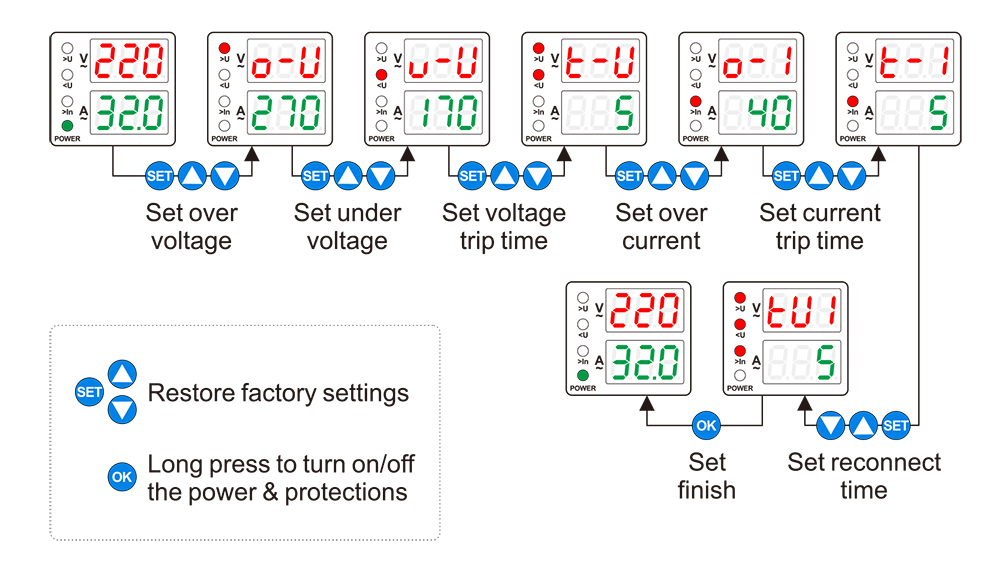

| Over-voltage range | 230-300V (Default 270V)/120-170V (Default 135V) | ||
| Under-voltage range | 110-210V (Default 170V)/60-110V (Default 90V) | ||
| Tripping delay time | 1-30S (Default 5S) | ||
| Reconnect delay time | 1-500S (Default 5S) | ||
| Power consumption | <2W | ||
| Energy measurement | No | 0-9999KW/h class 1 | |
| Accuracy | <1% | ||
| Altitude | <2000M | ||
| Ambient temperature | -20°C-70°C | ||
| Electro-mechanical life | 10,000 times | ||
| Installation | 35mm symmetrical DIN rail | ||
| Connections | Screw terminal & pillar terminal with clamp | ||
| Application | Environments of electric, industry and commerce | ||
