D52-2042
Winston
Functioning

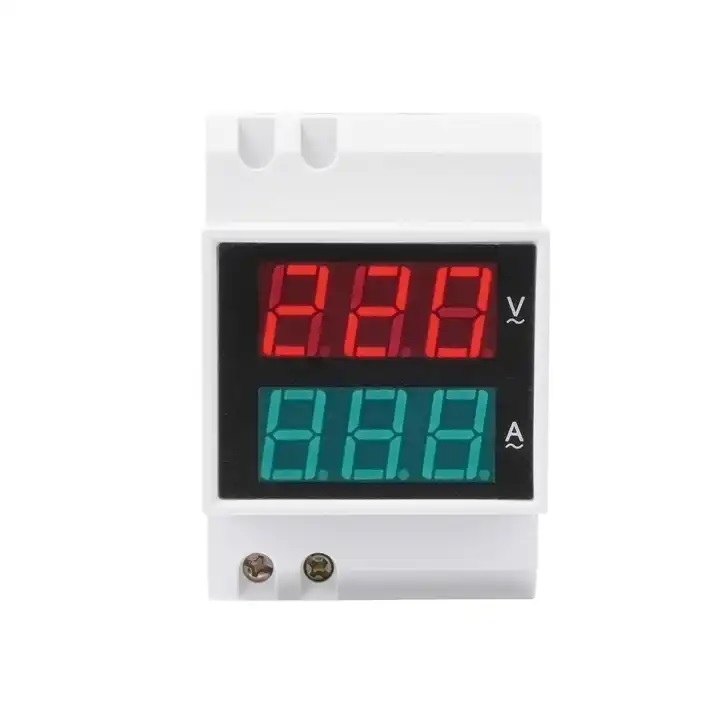

D52-2042 Din-rail AC voltage and current meter can display AC voltage and current at the same time if the measuring current is lower than 99.9A. you can get the AC current only making the wire across the hole which in the right side of the meter. If the measuring current is higher than 99.9A. You should connect it with a current transformer
Technical parameter
| Model Number | D52-2042 |
| Display Type | Digital Only |
| Phase | Single Phase |
| Acouracy Class | 1.0 |
| Output Volltage | 220V |
| Operating Temperature | 10-55℃ |
| Dimensions | 54*80*64mm |
| Usage | Voltage Current Measurement |
| Ampere Measuringrange | 0-99.9A |
| voltage Measuringrange | AC80-300V |
| Power Supply | <0.2VA |

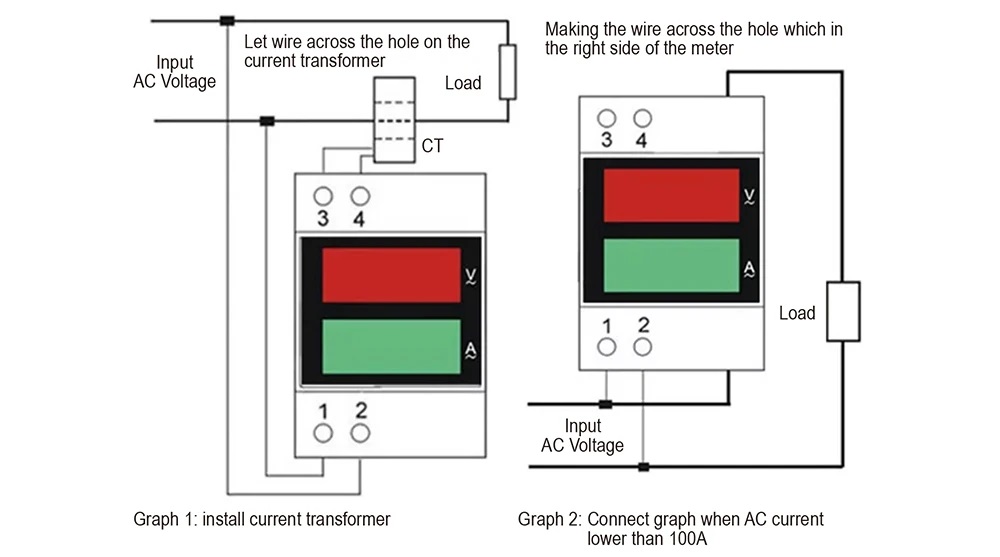

Wiring diagram
Packaging & Shipping
Functioning
D52-2042 Din-rail AC voltage and current meter can display AC voltage and current at the same time if the measuring current is lower than 99.9A. you can get the AC current only making the wire across the hole which in the right side of the meter. If the measuring current is higher than 99.9A. You should connect it with a current transformer
Technical parameter
| Model Number | D52-2042 |
| Display Type | Digital Only |
| Phase | Single Phase |
| Acouracy Class | 1.0 |
| Output Volltage | 220V |
| Operating Temperature | 10-55℃ |
| Dimensions | 54*80*64mm |
| Usage | Voltage Current Measurement |
| Ampere Measuringrange | 0-99.9A |
| voltage Measuringrange | AC80-300V |
| Power Supply | <0.2VA |
Wiring diagram
Packaging & Shipping
