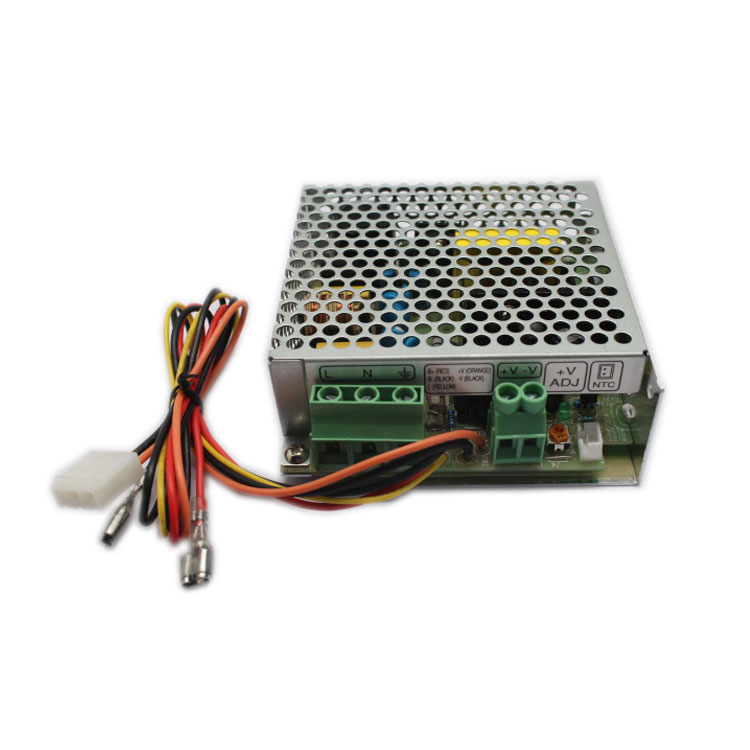

SCP-35
Winston
1.Universal AC input/Full rang
2.Protection: Short circuit / Overload / Over voltage / battery polarity protections(by fuse)
3.Cooling by free air convection
4.LED indicator for power on
5.No load power consumption<1W
6.Suitable for installation in metallic or non-metallic system enclosure
7.100% full load burn-in test
8.2 years warranty
SPECIFICATION | |||
OUTPUT | |||
Model | SCP-35-12 | SCP-35-24 | |
DC Voltage | 13.8V | 27.6V | |
Rated Current | 2.6A | 1.4A | |
Current Range | 0-2.6A | 0-1.4A | |
Rated Power | 35.9W | 38.6W | |
Ripple & Noise | 120mVp-p | 200mVp-p | |
Voltage Adj. Range | +15,-5% | +15,-5% | |
Voltage Tolerance | ±2% | ±1% | |
Inlet Stability | ±1% | ±1% | |
Load Stability | ±2% | ±1% | |
Setup, Rise, Hold Up Time | 500ms,30ms/230VAC 1200ms,30ms/115VAC at full load | ||
INPUT | |||
Voltage Range | 85~264VAC 120-370VDC | ||
Frequency Range | 47-63Hz | ||
AC Current | 0.7A/115V 0.5A/230VAC | ||
Efficiency | 83% | 86% | |
Inrush Current | Cold-start 45A | ||
Leakage Current | <2mA/240VAC | ||
PROTECTION | |||
Over Load | 3.1A~4.2A rated output power | 1.7A~2.3A rated output power | |
Protection type: hiccup mode,recovers automatically after fault condition is removed | |||
Over Voltage | 16.6~19.3V | 33.1~38.5V | |
Protection type: shut down o/p voltage, re-power on to recover | |||
ENVIRONMENT | |||
Working Temp., Humidity | -20℃~+60℃(Refer to output derating curve),20%~90%RH | ||
Storage Temp., Humidity | -40℃~+85℃, 10%~95%RH | ||
Temp. Coefficient | ±0.05%/℃(0~45℃) | ||
Vibration | 10~500Hz,2G 10min,/1cycle,Period for 60min,Each along X.Y.Z axes | ||
SAFETY | |||
Withstand Voltage | I/P-O/P: 3KVAC I/P-FG: 1.5KVAC O/P-FG: 0.5KVAC | ||
Isolation Resistance | I/P-O/P, I/P-FG, O/P-FG: 100M Ohms/500VDC | ||
STANDARD | |||
Safety Standard | UL60950-1,CCC,CE | ||
EMC Standard | EN55022,CLASS B | ||
OTHERS | |||
Dimension | 99*97*38mm(L*W*H) | ||
Net weight | 0.3436Kg | ||
Weight | 0.4Kg/pc 45pcs/carton | ||
