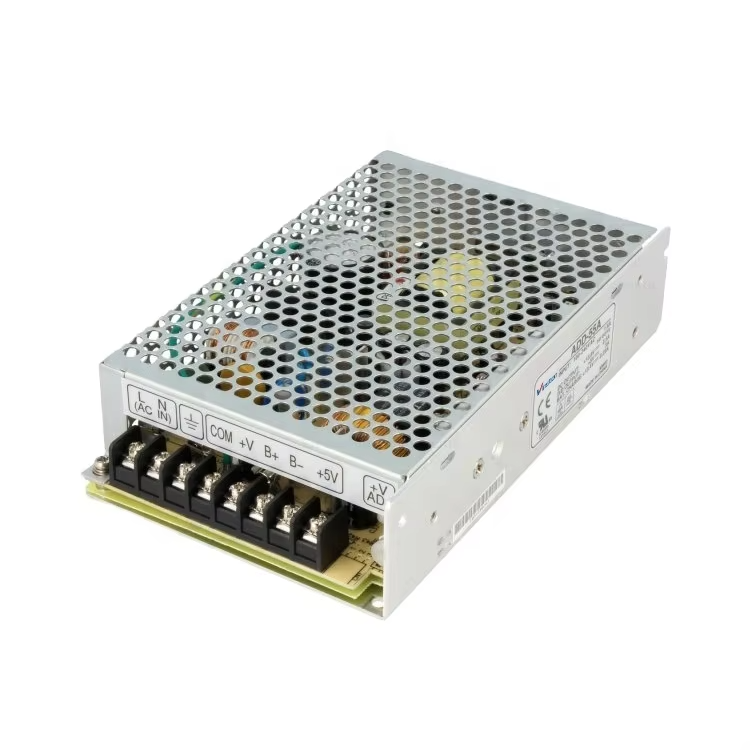

ADD-155
Winston
Features:
Universal AC input / Full range
Protections: Short circuit / Overload / Over voltage
Battery low protections
Cooling by free air convection
100% full load burn-in test
Fixed switching frequency at 45 KHz
1 year warranty
| SPECIFICATIONS | |||||||||
| MODEL | ADD-155A | ADD-155B | ADD-155C | ||||||
| Outputnumber | CH1 | CH2 | CH3 | CH1 | CH2 | CH3 | CH1 | CH2 | CH3 |
| DC voltage | 13.8V | 5V | 13.3V | 27.6V | 5V | 27.1V | 54 V | 5 V | 53.5 V |
| Rated Current | 9.5A | 3A | 0.5A | 3A | 3A | 0.5A | 0.2A | 4.5A | 2.3A |
| Current Range | 0~10.5A | 0~3A | -------- | 0~5A | 0~3A | --------- | 0~2.5A | 0~3A | --------- |
| Rated Power | 152.75W | 152.75W | 149.9W | ||||||
| Ripple&Noise | 150mVp-p | 100mVp-p | -------- | 200mVp-p | 100mVp-p | ------- | 200mVp-p | 100mVp-p | -------- |
| Voltage Adj.Range | CH1:12~14.5V | CH1:24~29V | CH1:48~58V | ||||||
| Voltage Tolerance | ±2.1% | ±0.5% | -------- | ±1.0% | ±0.5% | -------- | ±1.0% | ±5.0% | -------- |
| Line Regulation | ±1.0% | ±2.0% | -------- | ±1.0% | ±2.0% | -------- | ±1.0% | ±0.5% | -------- |
| Load Regulation | ±1.0% | ±3.0% | -------- | ±1.0% | ±3.0% | -------- | ±1.0% | ±2.0% | -------- |
| Setup,Rise Time | 1000ms, 90ms/230VAC 2000ms, 90ms/115VAC at full load | ||||||||
| Hold UpTime | 24ms/230VAC 20ms/115VAC at full load | ||||||||
| INPUT | |||||||||
| Voltage Range | 88~264VAC47~63Hz; 124~370VDC | ||||||||
| AC Current | 2.5A/115VAC 1.5A/230VAC | ||||||||
| Efficiency | 78% | 81% | 81% | ||||||
| Inrush Current | Coldstart 20A/115VAC 40A/230VAC | ||||||||
| Leakage Current | <1mA /240VAC | ||||||||
| PROTECTION | |||||||||
| Over Load | CH1,CH2:105 ~ 135% CH3:0.51 ~ 0.9Arated output power | ||||||||
| Protection type:AC Charging Mode:Hiccup mode,recovers automatically after fault condition is removed UPS Mode:Protected by internal fuse | |||||||||
| Over Voltage | CH1:15.87~18.63V | CH1:31.74~37.26V | CH1:62.1~72.9V | ||||||
| Protection type: Hiccup mode, recovers automatically after fault condition is removed | |||||||||
| Battery Low | 10V±0.8V | 19.5V±1.5V | 39V±2V | ||||||
| ENVIRONMENT | |||||||||
| Working Temp. | -10~+60℃(Refer to“Derating Curve”) | ||||||||
| Working Humidity | 20~90%RH non-condensing | ||||||||
| Storage Temp.,Humidity | -20~+85℃,10~95%RH | ||||||||
| Temp.Coefficient | ±0.03%/ ℃(0~50℃ )on CH1 output | ||||||||
| Vibration | 10~500Hz,2G10min./1cycle,60min.each along X, Y,Z axes | ||||||||
| SAFETY &EMC | |||||||||
| Safety Standards | Design refer to UL60950-1, TUV EN60950-1 | ||||||||
| Withstand Voltage | I/P-O/P:3KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC | ||||||||
| Isolation Resistance | I/P-O/P,I/P-FG,O/P-FG:100M Ohms/500VDC /25℃ /70%RH | ||||||||
| EMC Emission | Compliance to EN55022(CISPR22) Class B, EN61000-3-2,-3 | ||||||||
| EMC Immunity | Compliance to EN61000-4-2,3,4,5,6,8,11,EN55024,light industry level, criteria A | ||||||||
| OTHERS | |||||||||
| Dimension | 119*11*50mm(L*W*H) | ||||||||
| Weight | 1Kg | ||||||||
| Packing | 20pcs/12.6Kg/0.75CUFT | ||||||||
| NOTE | |||||||||
| 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature. | |||||||||
| 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12” twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. | |||||||||
| 3. Tolerance: includes set up tolerance, line regulation and load regulation. | |||||||||
| 4. The power supply is considered a component which will be installed into final equipment. The final equipment must be re-confirmed that it still meetsEMC directives. | |||||||||
