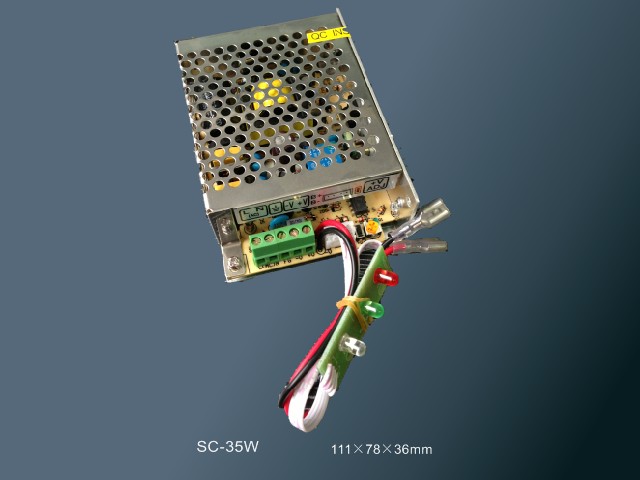

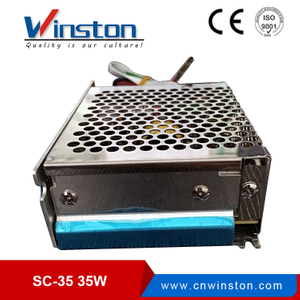

SC-35W UPS function monitor power supply

UPS function monitor power supply
• standard watt:35W
• Backup battery charging & discharging control and UPS function (have to be connected with lead-acid battery)
• Apply to security monitor facility or variety battery backup
• 2 years warranty.
Quantity:
  • SC-35

  • Winston

  • 8504401990

  • SC-35W

  • CE

  • Winston/OEM

  • Made in China

  • Export standard carton box

  • PCS

  • 10

  • 3-7days

  • 1

  • T/T

SC-35W UPS function monitor power supply

Features:
   ·universal AC input
       ·Small volumelow weighthigh efficiency
       ·Protections:short circuit/over load
       ·Indicator for power on/charge/normal(LED)
       ·100% full load burn-in test
       ·Battery protection at low voltage
       ·2 Year warranty




         Model



         SC-35-12



         SC-35-24















         output


  DC voltage      CH1:13.8V     CH1:13.4V     CH1:27.6V     CH2:26.5V
 Voltage tolerance

±2%

 ----    ±1%  -----
 Rated current   2.0A  0.5A   1.0A   0.3A
  Current range

0~2.0A

 -----  0~1.0A  -----
  Rated power         34.3W  35.6W
       Ripple&noise
   120mvp-p
    -----
   120mvp-p
    -----

 DCvoltage ADJ.range

  CH1:11.3~14.9V      CH1:21.3~29.8V


 Setup,rise,hold time

 800ms,50ms,80ms/230VAC,  1600ms,50ms,16ms/115VAC










         input


 Voltage range   90~264VAC127~370VDC

frequency

  47~63HZ

AC current

  0.9A/115VAC0.45A/230VAC
 efficiency    81%   83%
 Inrush current  Cold start current 25A/115VAC45A/230VAC
 Leakage current

< 1mA/240VAC







         protection



 Over load

 Rated output power110%~150%  start over load protection
  protection mode: AC charging mode:hiccup mode auto-recovery after fault condition is removed
 Battery protection
 At low voltage
        9.5~11V            20~22V
 protection mode:cutoff output


  Function




         UPS introduction


 long-term online floating charge to battery,high charging efficiency,battery can saturate to more than 90% ,cauto-stop charging when it's full,prevent over charging. Effectively extend battery life,AC/battery auto switch ,no switch time,no need human guard,  cold-start ,when there is no AC input ,can use battery start UPS,Meet the user's emergency needs


         environment


  Working temp,humidity       -10~+6020%~90%RH
   Storagetemp,humidity   -20~+8510%~95%RH non-condensing
   Withstand vibration

10~500HZ2G 10min/1cycleperiod for 60 minuteseach axes



         safety



    Withstand voltage

  I/P-O/P:3KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC
 Isolated resistance     I/P-O/P,I/P-FG,O/P-FG:100Mohms/500VDC


         Fitstandard


 Safety standard  Compliance to UL60950-1
  EMC standard  Compliance to EN55022CLASSB


        others


  Dimension   111*78*36mm (L*W*H)
 Weight/packing

 0.3kg/50pcs/16kg/0.027m³/0.96CUFT



         note


  1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and25of ambient temperature.
 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.

3. Tolerance : includes set up tolerance, line regulation and load regulation.
