PR30 connector typr waterproof 10mm 15mm flush non-flush inductive sensor switch

Availability:
Quantity:
Inquire Add to Basket

  • PR30

  • Winston

Model Explanation
PR30 Detection   Distance 10mm
Flush DC 6-36VDC NPN NO PR30-10DN
NC PR30-10DN2
NO+NC PR30-10DN3
PNP NO PR30-10DP
NC PR30-10DP2
NO+NC PR30-10DP3
Two wire system NO PR30-10DO
NC PR30-10DC
AC90-250VAC SCR                   Control-lable silicon NO PR30-10AO
NC PR30-10AC
Detection   Distance 15mm
Non-Flush DC 6-36VDC NPN NO PR30-15DN
NC PR30-15DN2
NO+NC PR30-15DN3
PNP NO PR30-15DP
NC PR30-15DP2
NO+NC PR30-15DP3
Two wire system NO PR30-15DO
NC PR30-15DC
AC90-250VAC SCR                   Control-lable silicon NO PR30-15AO
NC PR30-15AC
Control    output DC 200mA
SCR/Relay 300mA
Output vol;tage drop DC/AC DC (NPN PNP) type 3V or less,Two wire 3.9Vor   less, AC 10Vor less DC
Consumption current DC (NPN PNP) type 12V 8mA,24V 15mA , AC 10mA or   less DC
Repeated precision 0.5
DC/AC 200Hz/10Hz
Working environment temperature —25℃ ~ + 65 ℃
Insulation resistance 50MΩ
Shell material Metal
Protection grade IP67

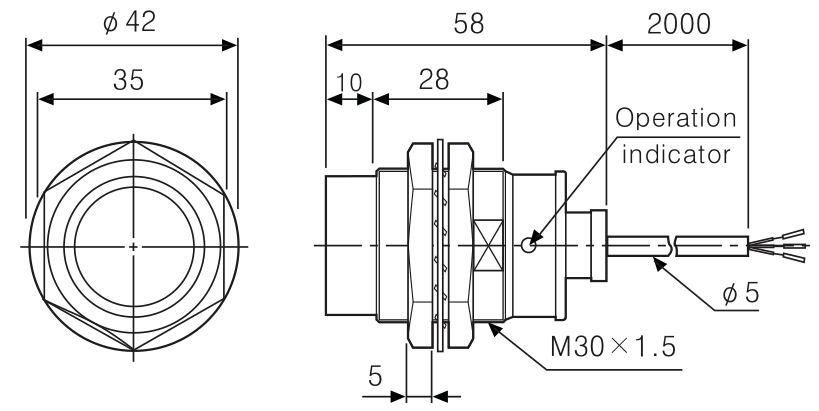

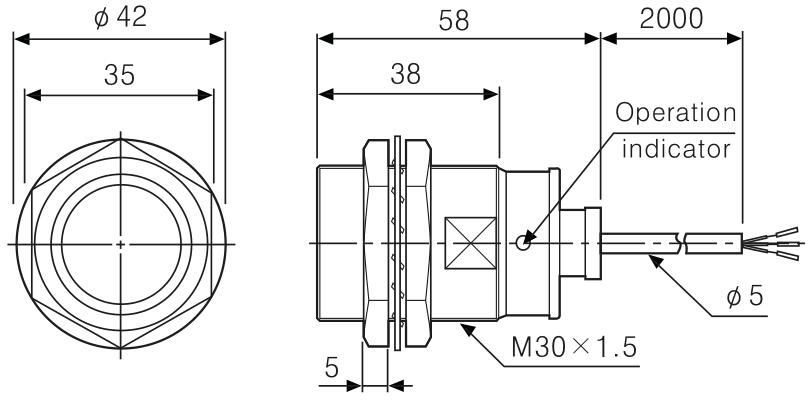

Overall dimensions


pr30 -15.jpg



Application
Packaging & Shipping
