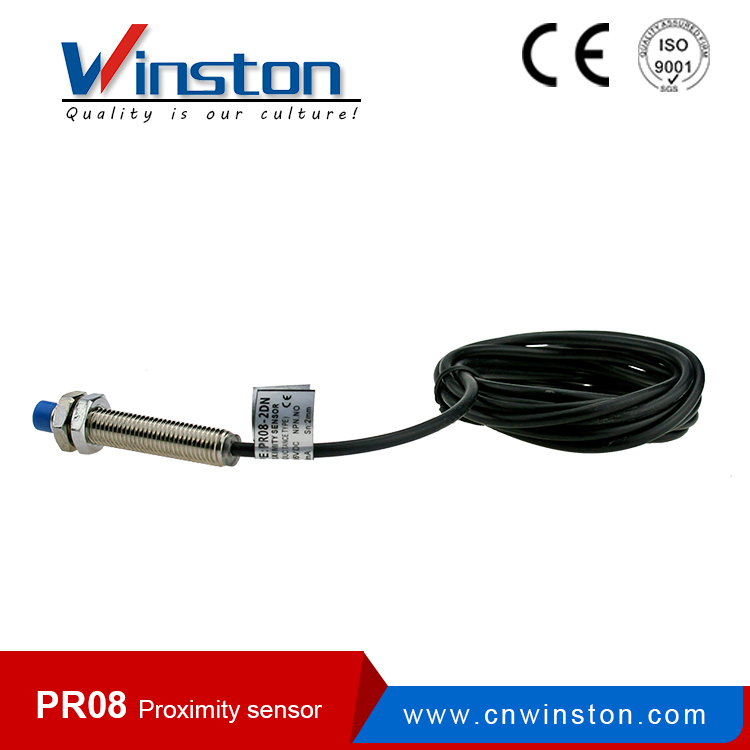

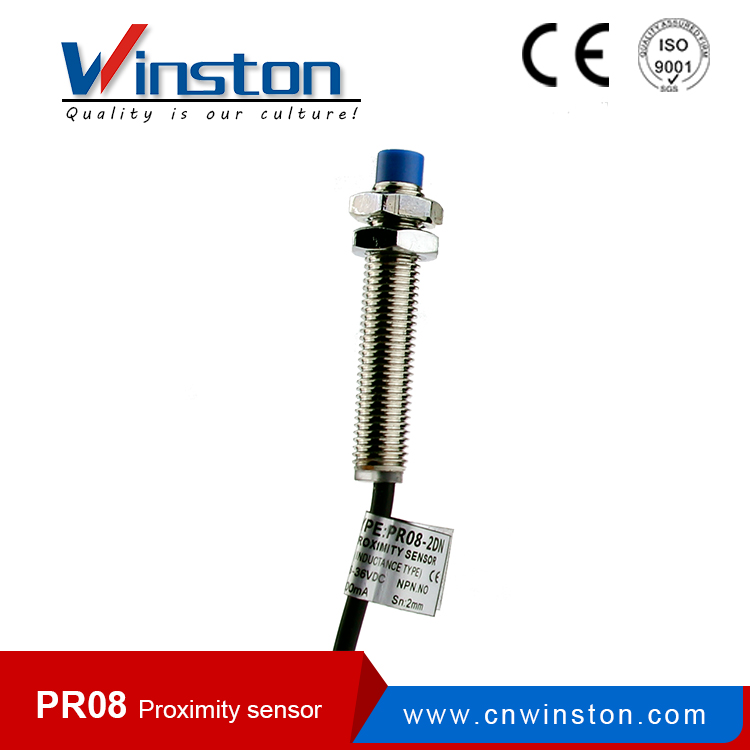

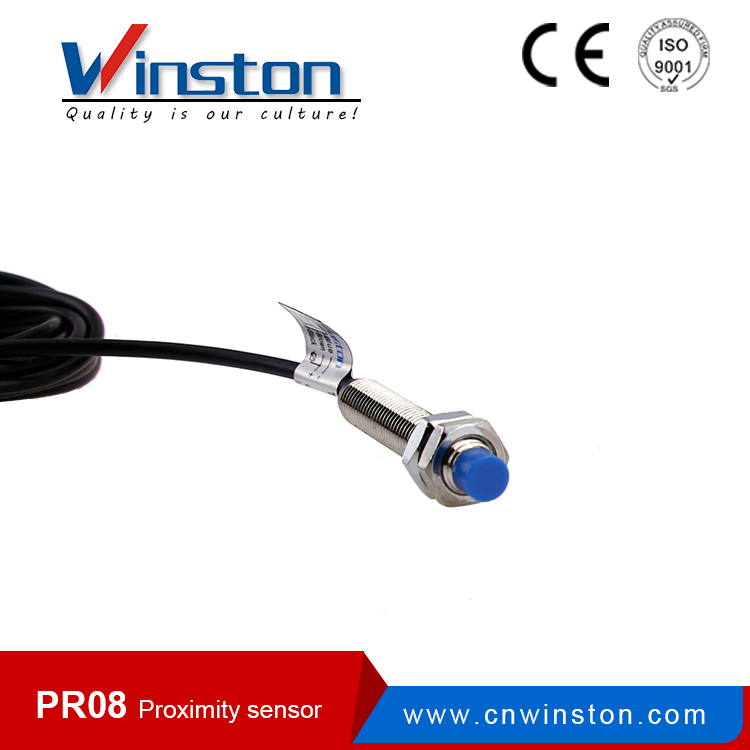

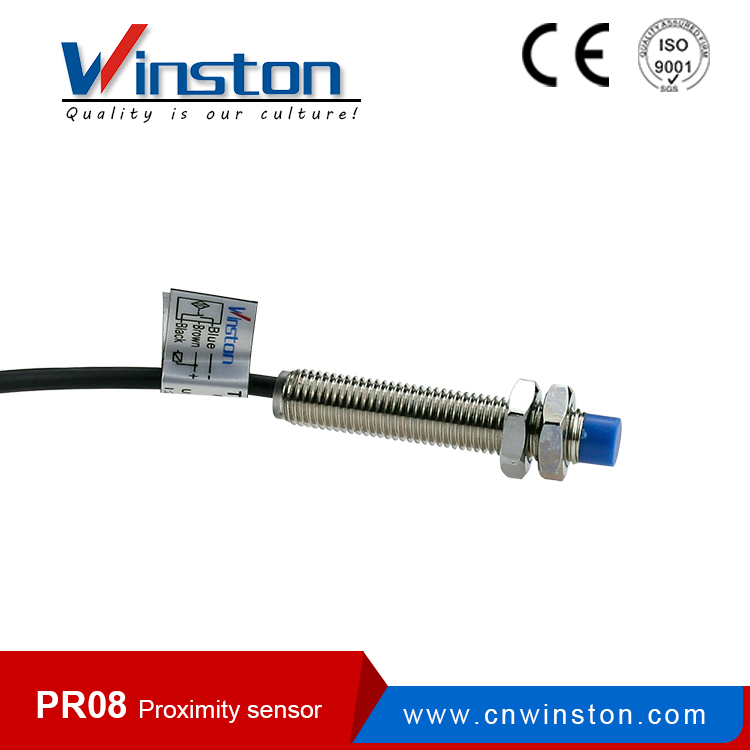

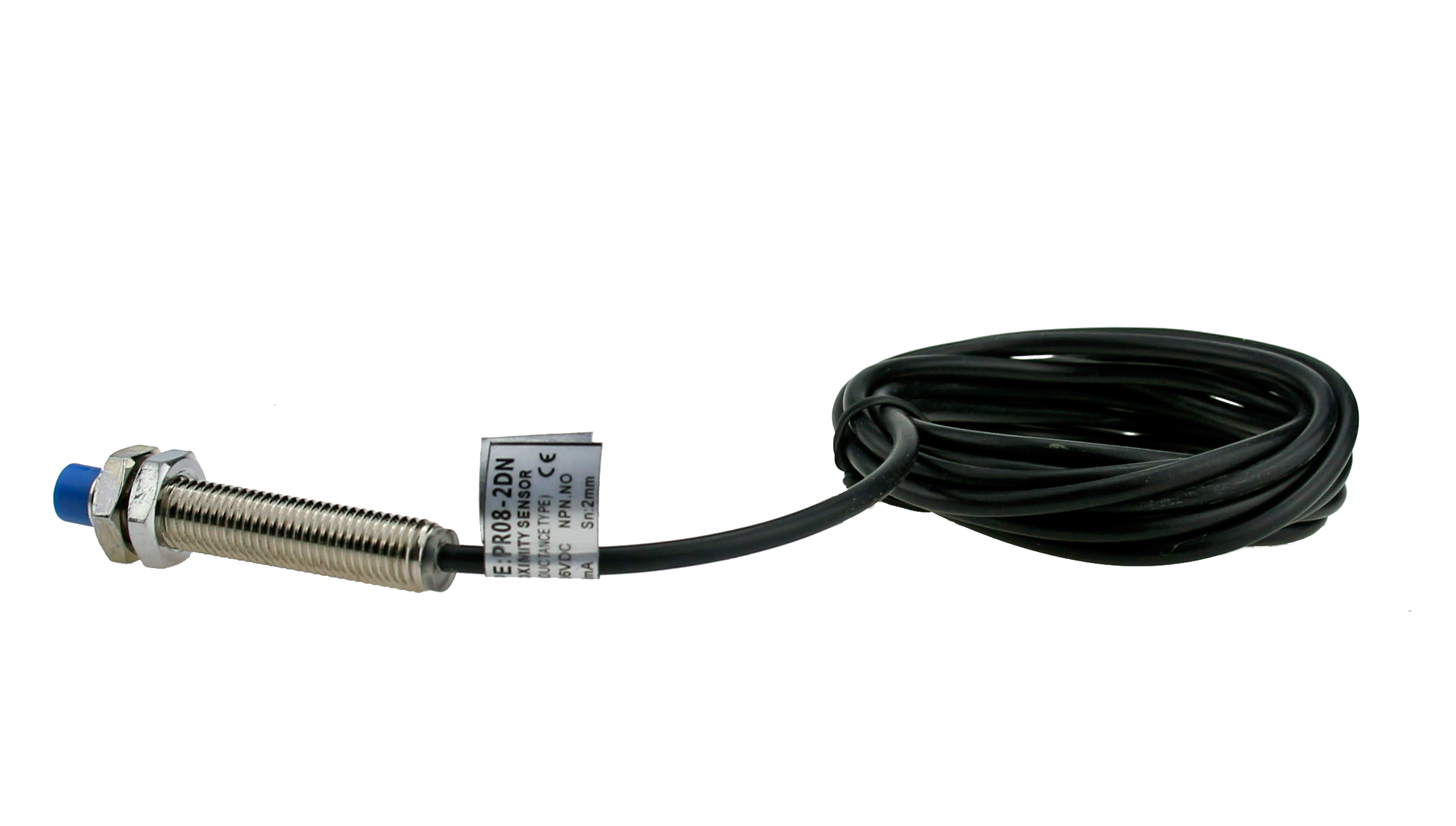

PR08 metal detector connector type proximity sensor

Share to:

PR08 metal detector connector type proximity sensor

Availability:

Quantity:



Inquire Add to Basket

Model:
PR08
Brand:
Winston

PR08 metal detector connector type proximity sensor

Compact volume
high precision of repeated location
Diversified exterior structures
Good performance of anti-interference.
Many output forms
High on-off frequency.
Wide voltage range
Dust proof,vibration proof,water proof and oil proof.
With short-circuit protection and inverted connecting protection.
Long service life

Winston M18 All metal stainless steel integral proximity switch waterproof

M12 Inductive NPN NC All metal stainless steel integral proximity switch

M6 Proximity Sensor Unshielded Type M6 PNP NC / NO (LM6-3001NA)

Inductive Proximity Sensor Shielded Type PNP NO (LM5-3001PA)

M30 Inductive Proximity Sensor Switch 15mm Connector Type (LM30-T / T3)

M18 Proximity Sensor Shield Unshielded with Connector (LM18-T / T3)

M12 Inductive Proximity Switch NPN NC 4mm (LM12-T / T3)

Inductive Proximity Senosr Switch NPN / PNP With Connector (LM8-T / T3)

IP67 Flush LM18 NO NC Inductive Proximity Switch Sensor

IP67 Non-flush LM18 PNP NPN 3Wires Inductive Proximity Switch Sensor

ABS Resin LMF11 Inductive Proximity Switch Sensor

LM12 flush type 2mm detection proximity switch sensor with ce

LM8 non flush type NO NC NO+NC detect metal proximity switch sensor

LM8 Flush type 1 mm detection NPN PNP proximity sensor switch

E2E-X10 E2E-X18 10mm 18mm NPN PNP Flush Non-flush Inductive Switch Sensor

Winston E2E-X8 flush E2E-X10 non-flush 8mm 10mm connector type sensor

E2E-X4 flush E2E-X5 non-flush NPN PNP inductive switch sensor with ce

Winston E2E-X2 E2E-X4 flush non-flush connector type proximity switch sensor

PR30 connector typr waterproof 10mm 15mm flush non-flush inductive sensor switch

Winston PR18 5mm 8mm detection npn pnp proximity switch sensor with ce

	DETECTION DISTANCE 1.5mm
Flush	DC 10-30V	NPN	NO	PR08-1.5DN
			NC	PR08-1.5DN2
			NO+NC	PR08-1.5DN3
		PNP	NO	PR08-1.5DP
			NC	PR08-1.5DP2
			NO+NC	PR08-1.5DP3
		two wire system	NO	PR08-1.5DO
			NC	PR08-1.5DC
	AC 90-250V	SCR Control-lable silicon	NO	PR08-1.5AO
			NC	PR08-1.5AC
			NO+NC
		Relay output
	DETECTION DISTANCE 2MM
Non-Flush	DC 10-30V	NPN	NO	PR08-2DN
			NC	PR08-2DN2
			NO+NC	PR08-2DN3
		PNP	NO	PR08-2DP
			NC	PR08-2DP2
			NO+NC	PR08-2DP3
		two wire system	NO	PR08-2DO
			NC	PR08-2DC
	AC 90-250V	SCR Control-lable silicon	NO	PR08-2AO
			NC	PR08-2AC
			NO+NC
		Relay output
Controloutput		DC		200mA
		SCR/ Relay		300mA/2A
Output voltagc dropDC/AC				NPN/PNP<3V,Two wire<3V,AC<10V
Consumption current				DC<15mA,AC<10mA
Standard detected object
Repeated precision				0.5
DC/AC				200HZ/10HZ
Working environment temperature				-25℃～+70℃
Insulation resistance				50MΩ
Shell material				metal
Protection grade				IP67
Altemative model at home and abroad

	DETECTION DISTANCE 1.5mm
Flush	DC 10-30V	NPN	NO	PR08-1.5DN
			NC	PR08-1.5DN2
			NO+NC	PR08-1.5DN3
		PNP	NO	PR08-1.5DP
			NC	PR08-1.5DP2
			NO+NC	PR08-1.5DP3
		two wire system	NO	PR08-1.5DO
			NC	PR08-1.5DC
	AC 90-250V	SCR Control-lable silicon	NO	PR08-1.5AO
			NC	PR08-1.5AC
			NO+NC
		Relay output
	DETECTION DISTANCE 2MM
Non-Flush	DC 10-30V	NPN	NO	PR08-2DN
			NC	PR08-2DN2
			NO+NC	PR08-2DN3
		PNP	NO	PR08-2DP
			NC	PR08-2DP2
			NO+NC	PR08-2DP3
		two wire system	NO	PR08-2DO
			NC	PR08-2DC
	AC 90-250V	SCR Control-lable silicon	NO	PR08-2AO
			NC	PR08-2AC
			NO+NC
		Relay output
Controloutput		DC		200mA
		SCR/ Relay		300mA/2A
Output voltagc dropDC/AC				NPN/PNP<3V,Two wire<3V,AC<10V
Consumption current				DC<15mA,AC<10mA
Standard detected object
Repeated precision				0.5
DC/AC				200HZ/10HZ
Working environment temperature				-25℃～+70℃
Insulation resistance				50MΩ
Shell material				metal
Protection grade				IP67
Altemative model at home and abroad
