PR08
Winston

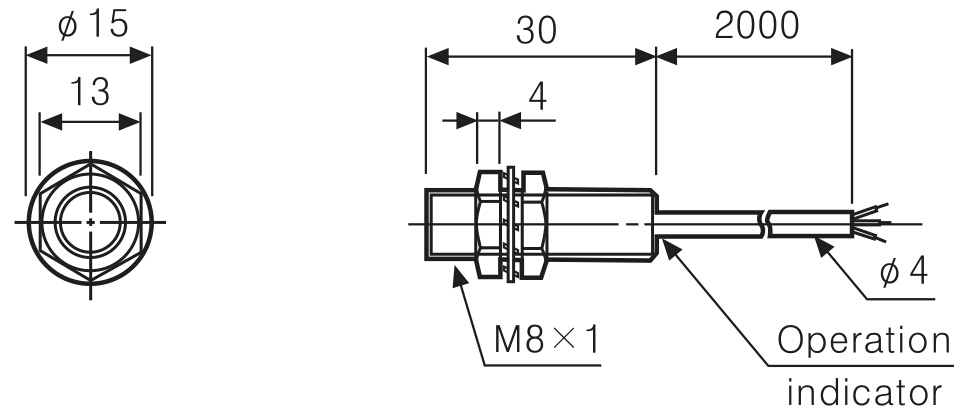

| PR08 | Detection Distance | 1.5mm | |||
| Flush | DC 6-36VDC | NPN | NO | PR08-1.5DN | |
| NC | PR08-1.5DN2 | ||||
| NO+NC | PR08-1.5DN3 | ||||
| PNP | NO | PR08-1.5DP | |||
| NC | PR08-1.5DP2 | ||||
| NO+NC | PR08-1.5DP3 | ||||
| Two wire system | NO | PR08-1.5DO | |||
| NC | PR08-1.5DC | ||||
| AC90-250VAC | SCR Control-lable silicon | NO | PR08-1.5AO | ||
| NC | PR08-1.5AC | ||||

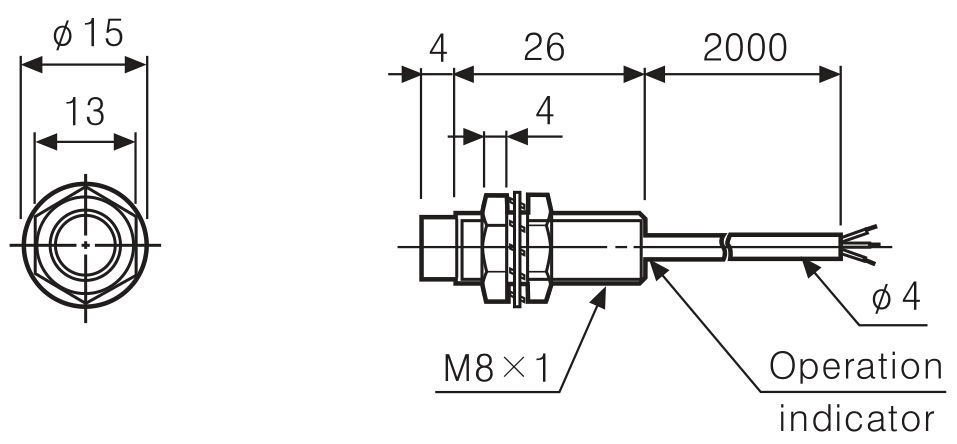

| Detection Distance | 2mm | ||||
| Non-Flush | DC 6-36VDC | NPN | NO | PR08-2DN | |
| NC | PR08-2DN2 | ||||
| NO+NC | PR08-2DN3 | ||||
| PNP | NO | PR08-2DP | |||
| NC | PR08-2DP2 | ||||
| NO+NC | PR08-2DP3 | ||||
| Two wire system | NO | PR08-2DO | |||
| NC | PR08-2DC | ||||
| AC90-250VAC | SCR Control-lable silicon | NO | PR08-2AO | ||
| NC | PR08-2AC | ||||
| Control output | DC | 200mA | |||
| SCR/Relay | 300mA | ||||
| Output vol;tage drop DC/AC | DC (NPN PNP) type 3V or less,Two wire 3.9Vor less, AC 10Vor less DC | ||||
| Consumption current | DC (NPN PNP) type 12V 8mA,24V 15mA , AC 10mA or less DC | ||||
| Repeated precision | 0.5 | ||||
| DC/AC | 200Hz/10Hz | ||||
| Working environment temperature | —25℃ ~ + 65 ℃ | ||||
| Insulation resistance | 50MΩ | ||||
| Shell material | Metal | ||||
| Protection grade | IP67 | ||||
| PR08 | Detection Distance | 1.5mm | |||
| Flush | DC 6-36VDC | NPN | NO | PR08-1.5DN | |
| NC | PR08-1.5DN2 | ||||
| NO+NC | PR08-1.5DN3 | ||||
| PNP | NO | PR08-1.5DP | |||
| NC | PR08-1.5DP2 | ||||
| NO+NC | PR08-1.5DP3 | ||||
| Two wire system | NO | PR08-1.5DO | |||
| NC | PR08-1.5DC | ||||
| AC90-250VAC | SCR Control-lable silicon | NO | PR08-1.5AO | ||
| NC | PR08-1.5AC | ||||
| Detection Distance | 2mm | ||||
| Non-Flush | DC 6-36VDC | NPN | NO | PR08-2DN | |
| NC | PR08-2DN2 | ||||
| NO+NC | PR08-2DN3 | ||||
| PNP | NO | PR08-2DP | |||
| NC | PR08-2DP2 | ||||
| NO+NC | PR08-2DP3 | ||||
| Two wire system | NO | PR08-2DO | |||
| NC | PR08-2DC | ||||
| AC90-250VAC | SCR Control-lable silicon | NO | PR08-2AO | ||
| NC | PR08-2AC | ||||
| Control output | DC | 200mA | |||
| SCR/Relay | 300mA | ||||
| Output vol;tage drop DC/AC | DC (NPN PNP) type 3V or less,Two wire 3.9Vor less, AC 10Vor less DC | ||||
| Consumption current | DC (NPN PNP) type 12V 8mA,24V 15mA , AC 10mA or less DC | ||||
| Repeated precision | 0.5 | ||||
| DC/AC | 200Hz/10Hz | ||||
| Working environment temperature | —25℃ ~ + 65 ℃ | ||||
| Insulation resistance | 50MΩ | ||||
| Shell material | Metal | ||||
| Protection grade | IP67 | ||||
