SW-2
Winston
SW-2 is a sensor can replace any mechanical feed micro switch in the hopper, silo and last pan feeder. It have a built-in microprocessor, which can make the performance to achieve optimal. As soon as the material close to the top of the sensor, the switch will start.
SW-2 is a sensor can replace any mechanical feed micro switch in the hopper, silo and last pan feeder. It have a built-in microprocessor, which can make the performance to achieve optimal. As soon as the material close to the top of the sensor, the switch will start.
Working principle of capacitance proximity switch
| Structural category | Object Inductive surface RC Oscillator Switching stage Magnified ouptu stage |
| Outward appearance illustration | ![]() |
Outward appearance illustration
Working principle of capacitance proximity switch
| Structural category | Object Inductive surface RC Oscillator Switching stage Magnified ouptu stage |
| Outward appearance illustration | ![]() |
Outward appearance illustration
| Sensing range | 1-15mm |
| Output function | NO/NC can be selected |
| Operating voltage | 20-250VAC/DC |
| Load Current | 5A |
| Short-circuit protection | Yes |
| Delay setting | 1…3600 sec |
| Voltage drop | <7V |
| Current consumption | <10mA |
| Switch-point drift | ≤±10 |
| Hysteresis | 5…15 |
| Switching frequency | 50/60Hz |
| Housing material | PBT |
| Ambient temperature | -25…70℃ |
| Protection grade | IP67 |
| Switching status | Red LED |
| Certification standard | CE |

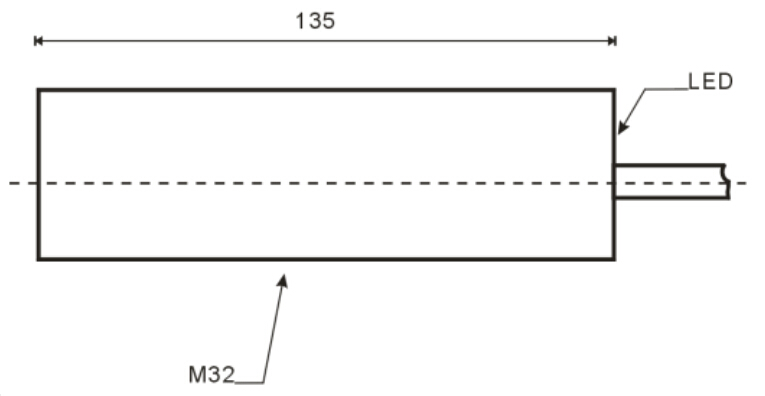

Dimension
Drawing
| Sensing range | 1-15mm |
| Output function | NO/NC can be selected |
| Operating voltage | 20-250VAC/DC |
| Load Current | 5A |
| Short-circuit protection | Yes |
| Delay setting | 1…3600 sec |
| Voltage drop | <7V |
| Current consumption | <10mA |
| Switch-point drift | ≤±10 |
| Hysteresis | 5…15 |
| Switching frequency | 50/60Hz |
| Housing material | PBT |
| Ambient temperature | -25…70℃ |
| Protection grade | IP67 |
| Switching status | Red LED |
| Certification standard | CE |
Dimension
Drawing
