LMF55
Winston

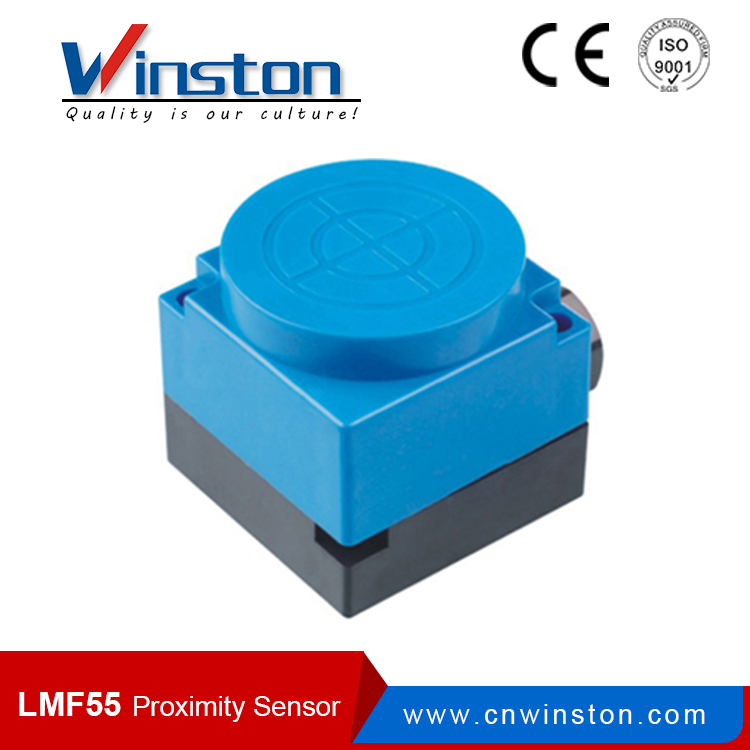

This is winston inductive sensor LMF55,the shape is a little difference from the type LM, but the detection object of this two type are the same,it is the iron,the detection range of this type LMF55 is about 20mm,as you can see, the light on and the distance is 20mm.
This is winston inductive sensor LMF55,the shape is a little difference from the type LM, but the detection object of this two type are the same,it is the iron,the detection range of this type LMF55 is about 20mm,as you can see, the light on and the distance is 20mm.
NPN PNP LMF55 Waterproof Inductance Proximity Switch
Compact volume
high precision of repeated location
Diversified exterior structures
Good performance of anti-interference.
Many output forms
High on-off frequency.
Wide voltage range
Dust proof,vibration proof,water proof and oil proof.
With short-circuit protection and inverted connecting protection.
Long service life
NPN PNP LMF55 Waterproof Inductance Proximity Switch
Compact volume
high precision of repeated location
Diversified exterior structures
Good performance of anti-interference.
Many output forms
High on-off frequency.
Wide voltage range
Dust proof,vibration proof,water proof and oil proof.
With short-circuit protection and inverted connecting protection.
Long service life
Model explanation of proximity switch
1. Switch category(LM: inductance type; CM: capactitance type;SM:Hall type; AM:safety explosion-proof type; XM: mimic linear type)
2. Outward appearance code(C: Cylinder type; F: Angular column type and planeinstallation type)
3. Operating voltage(30: 6-36VDC; 310: 5-24VDC; 320: 12-60VDC; 20:90-250VAC; 210: 24-250VAC;220: 380VAC; 40: 12-240VDC/24-240AC; 50: Special voltage)
4. Detection distance( 01: 1mm; 05:5mm; 10:10mm)
5. Output method (N: Three-line DC NPN output;P: Three-line DC PNP output;
L: Two-line DC output; AC two-wire output;J: Relay output;NP: NPN+PNP output)
6. Output status(A: NO; B: NC; C: NO+NC; MU: Mimic voltage; MI: Mimic current)
7. Auxi function code(T: With connector; Y: Water proof, oil proof; I: Special requirement;
H: High temp resistance; R: Ring type)
Technical Parameters:
| OVERALL DIMENSIONS |
| |||
| DETECTION DISTANCE | ||||
| Flush | DC 10-30V | NPN | NO | |
| NC | ||||
| NO+NC | ||||
| PNP | NO | |||
| NC | ||||
| NO+NC | ||||
| two wire system | NO | |||
| NC | ||||
| AC 90-250V | SCR Control-lable silicon | NO | ||
| NC | ||||
| NO+NC | ||||
| Relay output | ||||
| DETECTION DISTANCE 25MM | ||||
| Non-Flush | DC 10-30V | NPN | NO | LMF55-3025NA |
| NC | LMF55-3025NB | |||
| NO+NC | LMF55-3025NC | |||
| PNP | NO | LMF55-3025PA | ||
| NC | LMF55-3025PB | |||
| NO+NC | LMF55-3025PC | |||
| two wire system | NO | LMF55-3025LA | ||
| NC | LMF55-3025LB | |||
| AC 90-250V | SCR Control-lable silicon | NO | LMF55-2025A | |
| NC | LMF55-2025B | |||
| NO+NC | LMF55-2025C | |||
| Relay output | ||||
| Controloutput | DC | 200mA | ||
| SCR/ Relay | 300mA/2A | |||
| Output voltagc dropDC/AC | NPN/PNP<3V,Two wire<3.9V,AC<10V | |||
| Consumption current | DC<15mA,AC<10mA | |||
| Standard detected object | 70*70*1(A3 iron) | |||
| Repeated precision | 0.2 | |||
| DC/AC | 200HZ/10HZ | |||
| Working environment temperature | -25℃～+70℃ | |||
| Insulation resistance | 50MΩ | |||
| Shell material | ABS Resin | |||
| Protection grade | IP67 | |||
| Altemative model at home and abroad | HE-/HD- | |||
