LTA506 LED Signal Tower Light (Φ55)

LTA506 LED Signal Tower Light (Φ55)
Model explain


Description

1.Application:industrial safety equipment,maintenance of machine status

2.Make from noncombustible ABS,acidproof and dustproof

3.IP Rating:IP54

4.Different light source is available and adjustable,led and bulb

5.Integral alarm with adjustable volume up to 90db

Technical parameters


Legend
Model	LTA506-1	LTA506-2	LTA506-3	LTA506-4	LTA506-5
Function	T:stady burn,W:falshing,J:With Buzzer	T:stady burn,W:falshing,J:With Buzzer	T:stady burn,W:falshing,J:With Buzzer	T:stady burn,W:falshing,J:With Buzzer	T:stady burn,W:falshing,J:With Buzzer
Light Source	LED	LED	LED	LED	LED
Lighting	LED Stady Burn/Flashing	LED Stady Burn/Flashing	LED Stady Burn/Flashing	LED Stady Burn/Flashing	LED Stady Burn/Flashing
Power	2W	4W	6W	8W	10W
Mounting	Multifuntional installation	Multifuntional installation	Multifuntional installation	Multifuntional installation	Multifuntional installation
Sound	J:With Buzzer	J:With Buzzer	J:With Buzzer	J:With Buzzer	J:With Buzzer
Play Sound	1  2  3	1  2  3	1  2  3	1  2  3	1  2  3
Voltage	DC12V DC24V AC110V AC220V	DC12V DC24V AC110V AC220V	DC12V DC24V AC110V AC220V	DC12V DC24V AC110V AC220V	DC12V DC24V AC110V AC220V
Segments Num.	1 Segments	2 Segments	3 Segments	4 Segments	5 Segments
Color

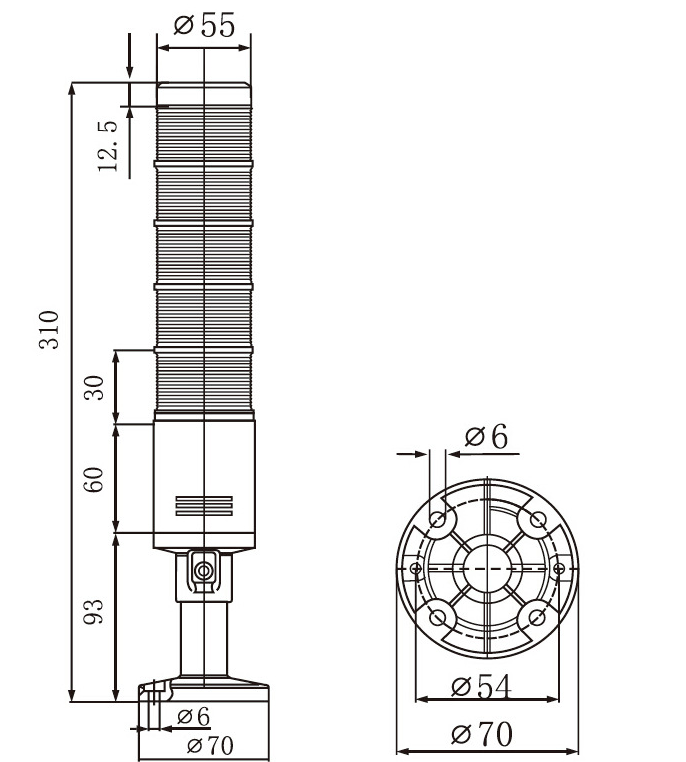

Overall dimensions

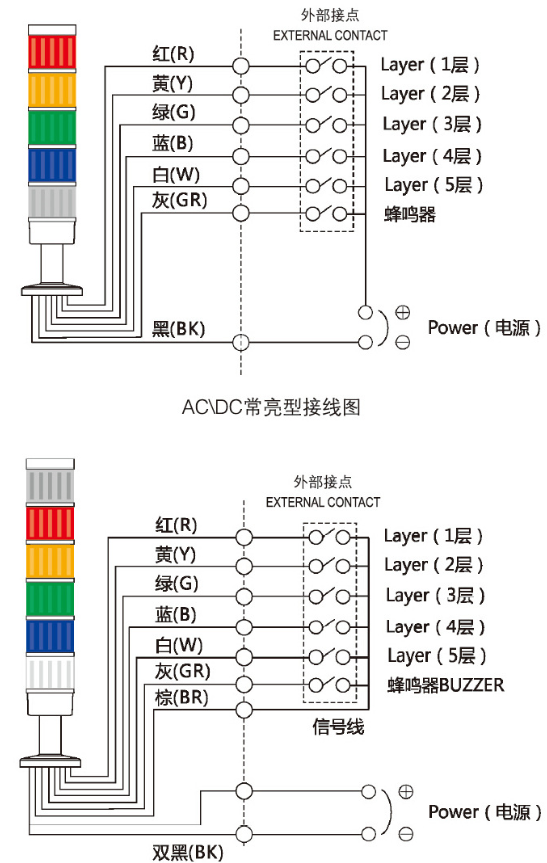

Wiring connect
