LTA204-1,LTA204-2,LTA204-3,LTA204-4
Winston
8531809000
LTA-205 Tower warning light

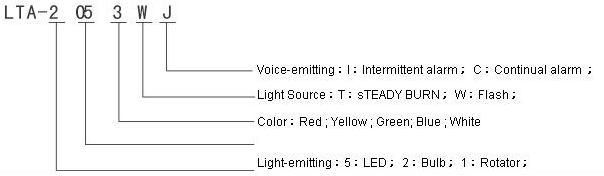

Model explain:
Description
1.Application:industrial safety equipment,maintenance of machine status
2.Make from noncombustible ABS,acidproof and dustproof
3.IP Rating:IP54
4.Different light source is available and adjustable,led and bulb
5.Integral alarm with adjustable volume up to 90db
Technical parameters
Legend | ||||
Model | LTA204-1 | LTA204-2 | LTA204-3 | LTA204-4 |
Function | T-steady burn,W-flashing | T-steady burn,W-flashing | T-steady burn,W-flashing | T-steady burn,W-flashing |
Light Source | Inflatable bulb | Inflatable bulb | Inflatable bulb | Inflatable bulb |
Lighting | Bulb T:steady burn, W:flashing | Bulb T:steady burn, W:flashing | Bulb T:steady burn, W:flashing | Bulb T:steady burn, W:flashing |
Power | 3W | 6W | 9W | 12W |
Mounting | Multifuntional installation | Multifuntional installation | Multifuntional installation | Multifuntional installation |
Sound | J:With Buzzer | J:With Buzzer | J:With Buzzer | J:With Buzzer |
Play Sound | 1 2 3 | 1 2 3 | 1 2 3 | 1 2 3 |
Voltage | DC12V DC24V | DC12V | DC12V | DC12V |
Segments Num. | 1 Segments | 2 Segments | 3 Segments | 4 Segments |
Color |
Model | Sections | Function | Voltage | Power | Color |
LTA204 | 1 | T (Normally on) | DC12V | 3W | Red |
W (Flash) | DC24V | ||||
LTA204 | 2 | T (Normally on) | DC12V | 6W | Red |
W (Flash) | DC24V | Green | |||
LTA204 | 3 | T (Normally on) | DC12V | 9W | Red |
W (Flash) | DC24V | Yellow | |||
Green | |||||
LTA204 | 4 | T (Normally on) | DC12V | 12W | Red |
Yellow | |||||
W (Flash) | DC24V | Green | |||
Blue |
Overall dimensions
LTA-205 Tower warning light
Model explain:
Description
1.Application:industrial safety equipment,maintenance of machine status
2.Make from noncombustible ABS,acidproof and dustproof
3.IP Rating:IP54
4.Different light source is available and adjustable,led and bulb
5.Integral alarm with adjustable volume up to 90db
Technical parameters
Legend | ||||
Model | LTA204-1 | LTA204-2 | LTA204-3 | LTA204-4 |
Function | T-steady burn,W-flashing | T-steady burn,W-flashing | T-steady burn,W-flashing | T-steady burn,W-flashing |
Light Source | Inflatable bulb | Inflatable bulb | Inflatable bulb | Inflatable bulb |
Lighting | Bulb T:steady burn, W:flashing | Bulb T:steady burn, W:flashing | Bulb T:steady burn, W:flashing | Bulb T:steady burn, W:flashing |
Power | 3W | 6W | 9W | 12W |
Mounting | Multifuntional installation | Multifuntional installation | Multifuntional installation | Multifuntional installation |
Sound | J:With Buzzer | J:With Buzzer | J:With Buzzer | J:With Buzzer |
Play Sound | 1 2 3 | 1 2 3 | 1 2 3 | 1 2 3 |
Voltage | DC12V DC24V | DC12V | DC12V | DC12V |
Segments Num. | 1 Segments | 2 Segments | 3 Segments | 4 Segments |
Color |
Model | Sections | Function | Voltage | Power | Color |
LTA204 | 1 | T (Normally on) | DC12V | 3W | Red |
W (Flash) | DC24V | ||||
LTA204 | 2 | T (Normally on) | DC12V | 6W | Red |
W (Flash) | DC24V | Green | |||
LTA204 | 3 | T (Normally on) | DC12V | 9W | Red |
W (Flash) | DC24V | Yellow | |||
Green | |||||
LTA204 | 4 | T (Normally on) | DC12V | 12W | Red |
Yellow | |||||
W (Flash) | DC24V | Green | |||
Blue |
Overall dimensions
