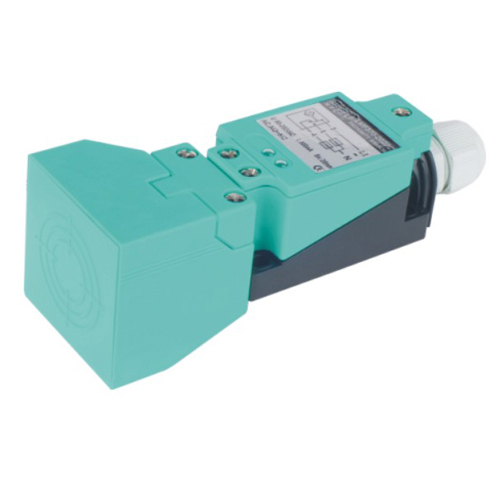

LMF370 Inductive proximity sensor

 Model explanation of proximity switch


 1. Switch category(LM: inductance type; CM: capactitance type;SM:Hall type; AM:safety explosion-proof type; XM: mimic linear type)
 2. Outward appearance code(C: Cylinder type; F: Angular column type and planeinstallation type)
 3. Operating voltage(30: 6-36VDC; 310: 5-24VDC; 320: 12-60VDC; 20:90-250VAC; 210: 24-250VAC;220: 380VAC; 40: 12-240VDC/24-240AC; 50: Special voltage)
 4. Detection distance( 01: 1mm; 05:5mm; 10:10mm)
 5. Output method (N: Three-line DC NPN output;P: Three-line DC PNP output;
 L: Two-line DC output; AC two-wire output;J: Relay output;NP: NPN+PNP output)
 6. Output status(A: NO; B: NC; C: NO+NC; MU: Mimic voltage; MI: Mimic current)
 7. Auxi function code(T: With connector; Y: Water proof, oil proof; I: Special requirement;
 H: High temp resistance; R: Ring type)

 Technical Parameters:



OVERALL DIMENSIONS
	DETECTION DISTANCE
Flush	DC 10-30V	NPN	NO
			NC
			NO+NC
		PNP	NO
			NC
			NO+NC
		two wire system	NO
			NC
	AC 90-250V	SCR Control-lable silicon	NO
			NC
			NO+NC
		Relay output
	DETECTION DISTANCE                 40MM
Non-Flush	DC 10-30V	NPN	NO	LMF370-3040NA
			NC	LMF370-3040NB
			NO+NC	LMF370-3040NC
		PNP	NO	LMF370-3040PA
			NC	LMF370-3040PB
			NO+NC	LMF370-3040PC
		two wire system	NO	LMF370-3040LA
			NC	LMF370-3040LB
	AC 90-250V	SCR Control-lable silicon	NO	LMF370-2040A
			NC	LMF370-2040B
			NO+NC	LMF370-2040C
		Relay output
Controloutput		DC		200mA
		SCR/ Relay		500mA
Output voltagc dropDC/AC				NPN/PNP<3V,Two wire<3.9V,AC<10V
Consumption current				DC<15mA,AC<10mA
Standard detected object				55*55*1(A3 iron)
Repeated precision				0.5
DC/AC				200HZ/10HZ
Working environment temperature				-25℃～+70℃
Insulation resistance				50MΩ
Shell material				ABS Resin
Protection grade				IP67
