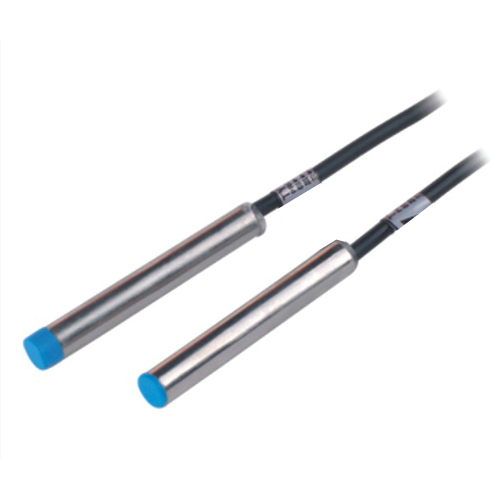

LM6 Inductance type proximity sensor
Inductive proximity switch is composed of three parts:oscillator,switch circuit and magnified output circuit The oscillator will generate an alternating electric field.When the metal object approaches this electric field adn reaches the induction distance,thirlpool will generate in metal object,resulting in attenuation of vibration and then stop.the change of vibration and stop of oscillator is treated by behind stage magnified circuit and converted to switching sign,triggering driving control for non-contact detection.

Model explanation of proximity switch

1. Switch category(LM: inductance type; CM: capactitance type;SM:Hall type; AM:safety explosion-proof type; XM: mimic linear type)
2. Outward appearance code(C: Cylinder type; F: Angular column type and planeinstallation type)
3. Operating voltage(30: 6-36VDC; 310: 5-24VDC; 320: 12-60VDC; 20:90-250VAC; 210: 24-250VAC;220: 380VAC; 40: 12-240VDC/24-240AC; 50: Special voltage)
4. Detection distance( 01: 1mm; 05:5mm; 10:10mm)
5. Output method (N: Three-line DC NPN output;P: Three-line DC PNP output;
L: Two-line DC output; AC two-wire output;J: Relay output;NP: NPN+PNP output)
6. Output status(A: NO; B: NC; C: NO+NC; MU: Mimic voltage; MI: Mimic current)
7. Auxi function code(T: With connector; Y: Water proof, oil proof; I: Special requirement;
H: High temp resistance; R: Ring type)

Outward appearance illustration				LM6
Flush	Detection distance			1mm
	DC 6-36VDC	NPN	NO	LM6-3001NA
			NC	LM6-3001NB
			NO+NC
		PNP	NO	LM6-3001PA
			NC	LM6-3001PB
			NO+NC
		Two wire system	NO	LM6-3001LA
			NC	LM6-3001LB
	AC 90~ 250 VAC	SCR Control- lable silicon	NO
			NC
			NO+NC
		RELAY OUTPUT
NOn-flush	Detection distance			1.5mm
	DC 6-36VDC	NPN	NO	LM6-3002NA
			NC	LM6-3002NB
			NO+NC
		PNP	NO	LM6-3002PA
			NC	LM6-3002PB
			NO+NC
		Two wire system	NO	LM6-3002LA
			NC	LM6-3002LB
	AC 90~ 250 VAC	SCR Control- lable silicon	NO
			NC
			NO+NC
Control output		DC		150mA
		SCR/RELAY
Output voltage dropDC/AC				DC < 3V,AC < 10V
Consumption current				DC < 15mA,AC < 10mA
Standard detected object				6×6×1(A3 iron)
Repeated precision				0.01
DC/AC Response frequency				500Hz
Working environment temperature				-25℃ ~+75℃
Insulation resistance				≥30MΩ
Shell material				Stainless steel
Protection grade				IP67
