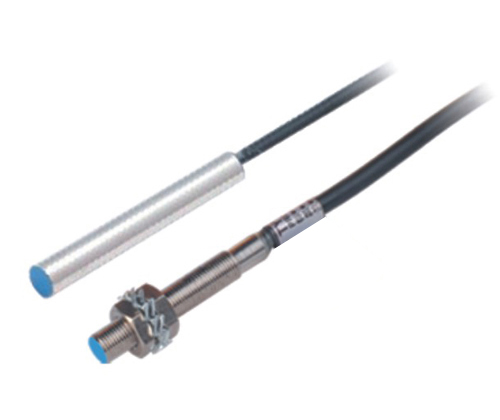

LM4/LM5 Proximity sensor

Quantity:



Inquire Add to Basket

Model:
LM4/LM5
Standard:
CE
Trademark:
Winston/OEM
Origin:
Made-in-China
Packing:
Export standard carton box
Unit:
PCS
Min order:
10
TransTime:
Within 6 days after get payment
Transportation:
6
Payment:
T/T

LM4/LM5 Inductance type proximity sensor
Inductive proximity switch is composed of three parts:oscillator,switch circuit and magnified output circuit The oscillator will generate an alternating electric field.When the metal object approaches this electric field adn reaches the induction distance,thirlpool will generate in metal object,resulting in attenuation of vibration and then stop.the change of vibration and stop of oscillator is treated by behind stage magnified circuit and converted to switching sign,triggering driving control for non-contact detection.

Main features:

compact volume
High precision of repeaed location
Diversified exterior structures
Good performance of anti-interference
Many output forms
High on-off frequency
Wide voltage range
Dust proof,vibration proof,water proof and oil proof
with short-circuit protection and inverted connecting protection
Long service life

OVERALL DIMENSIONS
	DETECTION DISTANCE 0.8mm/lmm
F l u s h	DC 10- 30 VDC AC 90- 250 VAC	NPN	NO	LM4-300.8NA/LM5-300INA
			NC
			NO+NC
		PNP	NO	LM4-300.8PA/LM5-300IPA
			NC
			NO+NC
		two wire system	NO
			NC
		SCR Control- lable silicon	NO
			NC
			NO+NC
		Relay output
	DETECTION DISTANCE
F l u s h	DC 10- 30 VDC AC 90- 250 VAC	NPN	NO
			NC
			NO+NC
		PNP	NO
			NC
			NO+NC
		two wire system	NO
			NC
		SCR Control- lable silicon	NO
			NC
			NO+NC
		Relay output
Controloutput		DC		200mA
		SCR/ Relay
Output voltagc dropDC/AC				直流(NPN PNP)型3V以下、二线型：3.9V以下、交流AC 10V以下 DC<3V、AC<10V
Consumption current				直流(NPN PNP)型DC 12V时8mA、24V时15mA、交流AC 10mA以下DC<15mA、AC<10mA
Standard detected object				6X6X1(A3 iron)
Repeated precision				0.01
DC/AC				500Hz
Working environment temperature				-25℃～+70℃
Insulation resistance				50MΩ
Shell material				Metal
Protection grade				IP67
