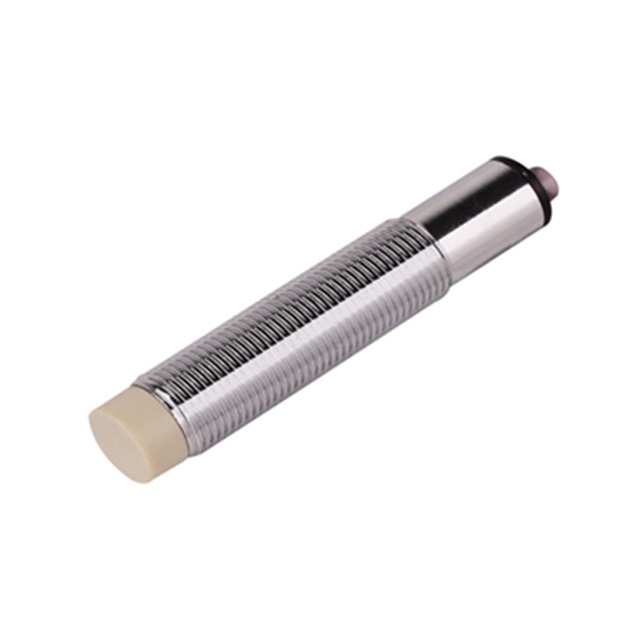

LM12
Winston
| Model NO. | Detection distance | Working voltage | Output | | |
| Form | State | ||||
| LM12-3002NA | 2mm | DC6-36V AC90-250 | NPN NPN | NO | Flush |
| LM12-3002NB | NC | ||||
| LM12-3002NC | NO+NC | ||||
| LM12-3002PA | PNP PNP | NO | |||
| LM12-3002PB | NC | ||||
| LM12-3002PC | NO+NC | ||||
| LM12-3002LA | Two wire system | NO | |||
| LM12 -2002LB | Two wire system | NC | |||
| LM12 -2002A | SCR Control label silicon | NO | |||
| LM12 -2002B | NC | ||||
| LM12-3004NA | 4mm | NPN NPN | NO | Non-flush | |
| LM12-3004NB | NC | ||||
| LM12-3004NC | NO+NC | ||||
| LM12-3004PA | PNP PNP | NO | |||
| LM12-3004PB | NC | ||||
| LM12-3004PC | NO+NC | ||||
| LM12-3004LA | Two wire system | NO | |||
| LM12 -3004LB | Two wire system | NC | |||
| LM12 -2004A | SCR Control label silicon | NO | |||
| LM12 -2004B | NC | ||||

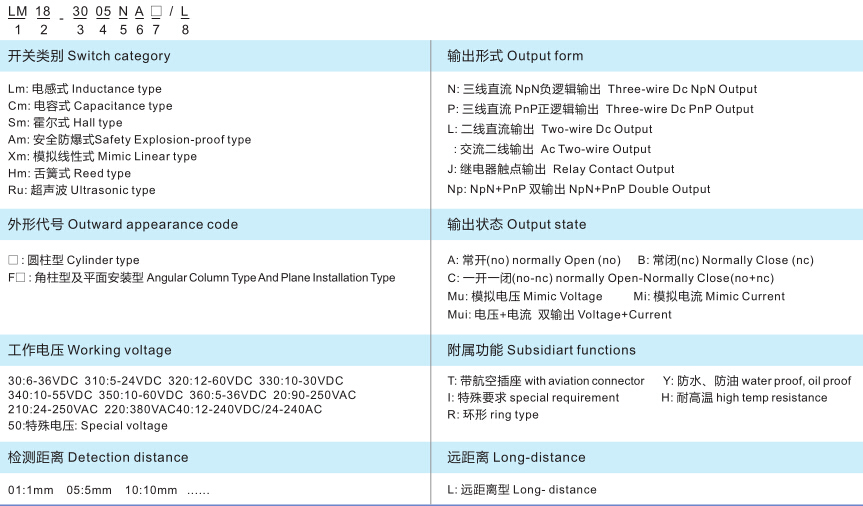

Model explanation
| Model NO. | Detection distance | Working voltage | Output | | |
| Form | State | ||||
| LM12-3002NA | 2mm | DC6-36V AC90-250 | NPN NPN | NO | Flush |
| LM12-3002NB | NC | ||||
| LM12-3002NC | NO+NC | ||||
| LM12-3002PA | PNP PNP | NO | |||
| LM12-3002PB | NC | ||||
| LM12-3002PC | NO+NC | ||||
| LM12-3002LA | Two wire system | NO | |||
| LM12 -2002LB | Two wire system | NC | |||
| LM12 -2002A | SCR Control label silicon | NO | |||
| LM12 -2002B | NC | ||||
| LM12-3004NA | 4mm | NPN NPN | NO | Non-flush | |
| LM12-3004NB | NC | ||||
| LM12-3004NC | NO+NC | ||||
| LM12-3004PA | PNP PNP | NO | |||
| LM12-3004PB | NC | ||||
| LM12-3004PC | NO+NC | ||||
| LM12-3004LA | Two wire system | NO | |||
| LM12 -3004LB | Two wire system | NC | |||
| LM12 -2004A | SCR Control label silicon | NO | |||
| LM12 -2004B | NC | ||||
Model explanation
