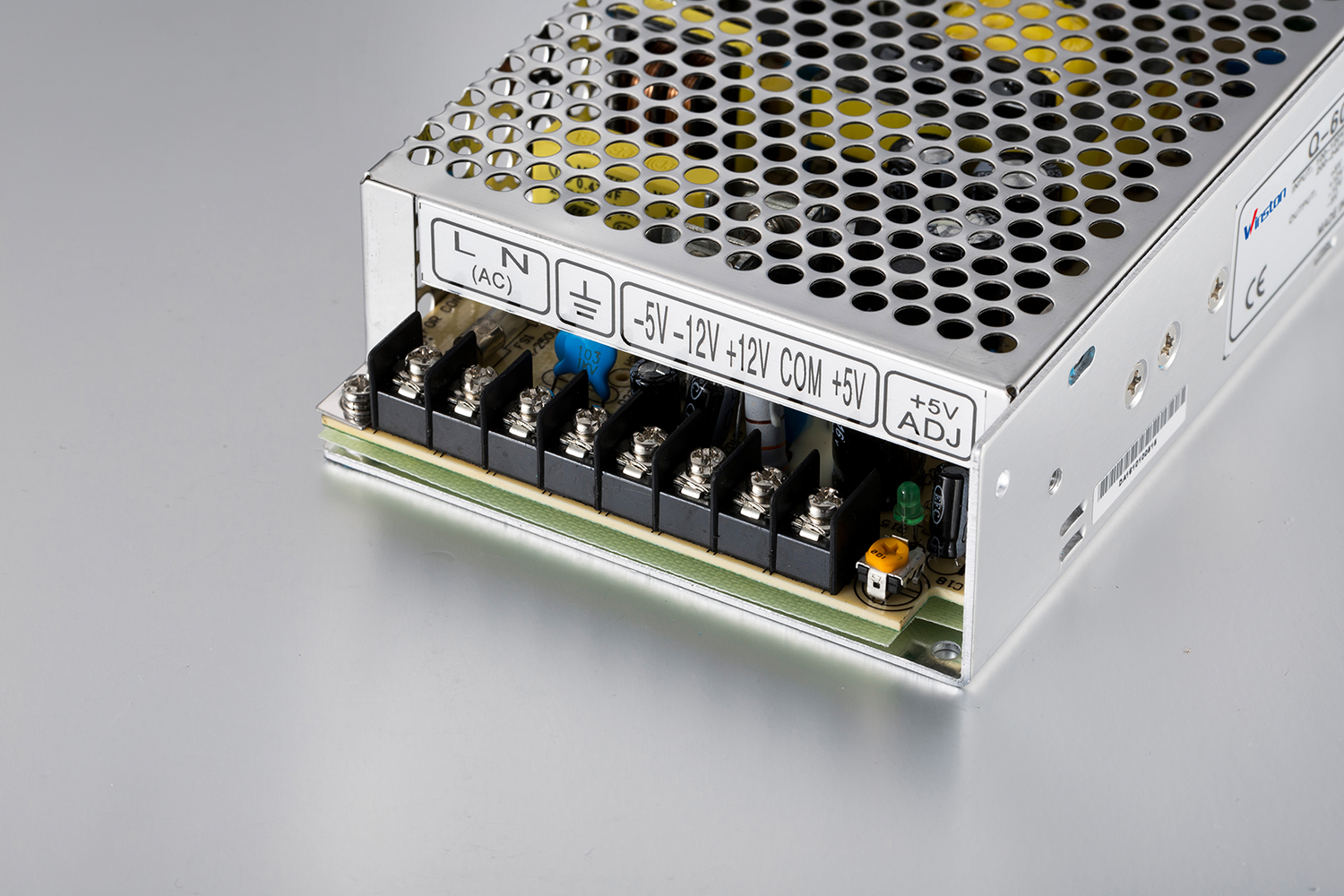

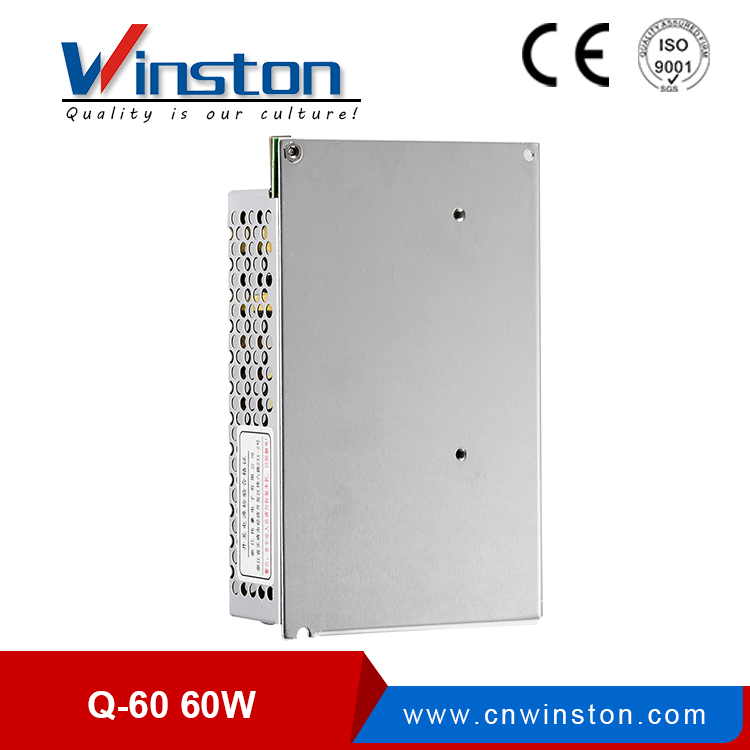

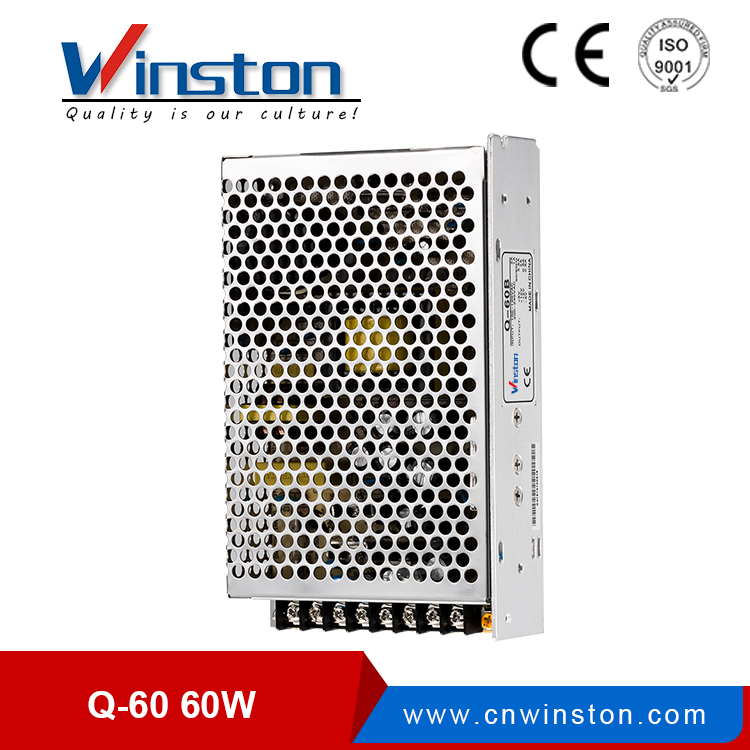

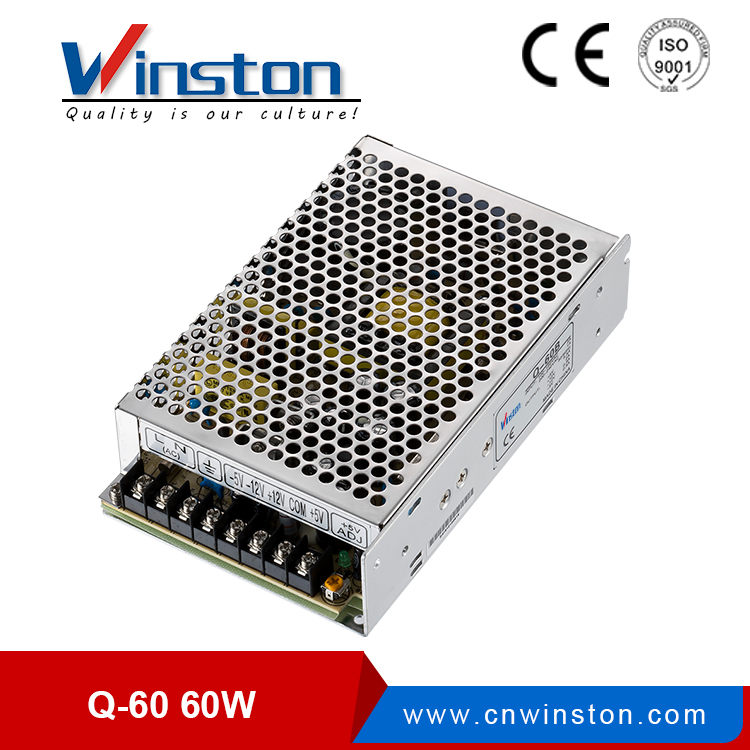

Q-60W
Winston
1) High Efficiency, High Reliability, Low Cost
2) AC Input Range:85-264VAC 120-370VDC
3) 100% Full Load Burn-In Test
4) Protections: Short Circuit / Over Load/Over Voltage
5) LED Indicator For Power On

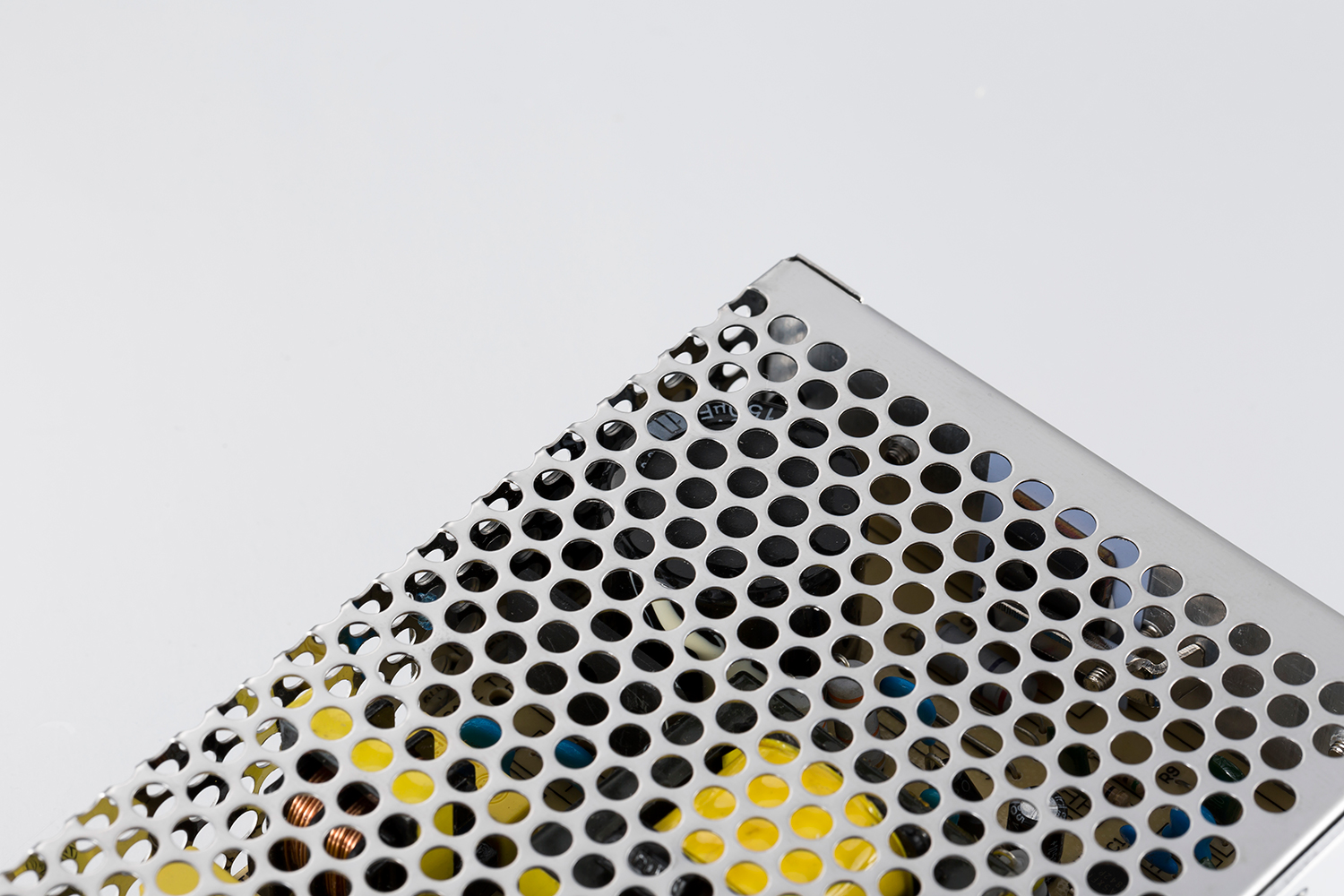

6) Cooling By Free Air Convection
7) Approvals: CE RoHS
8) 2 Year Warranty.
2.Specification

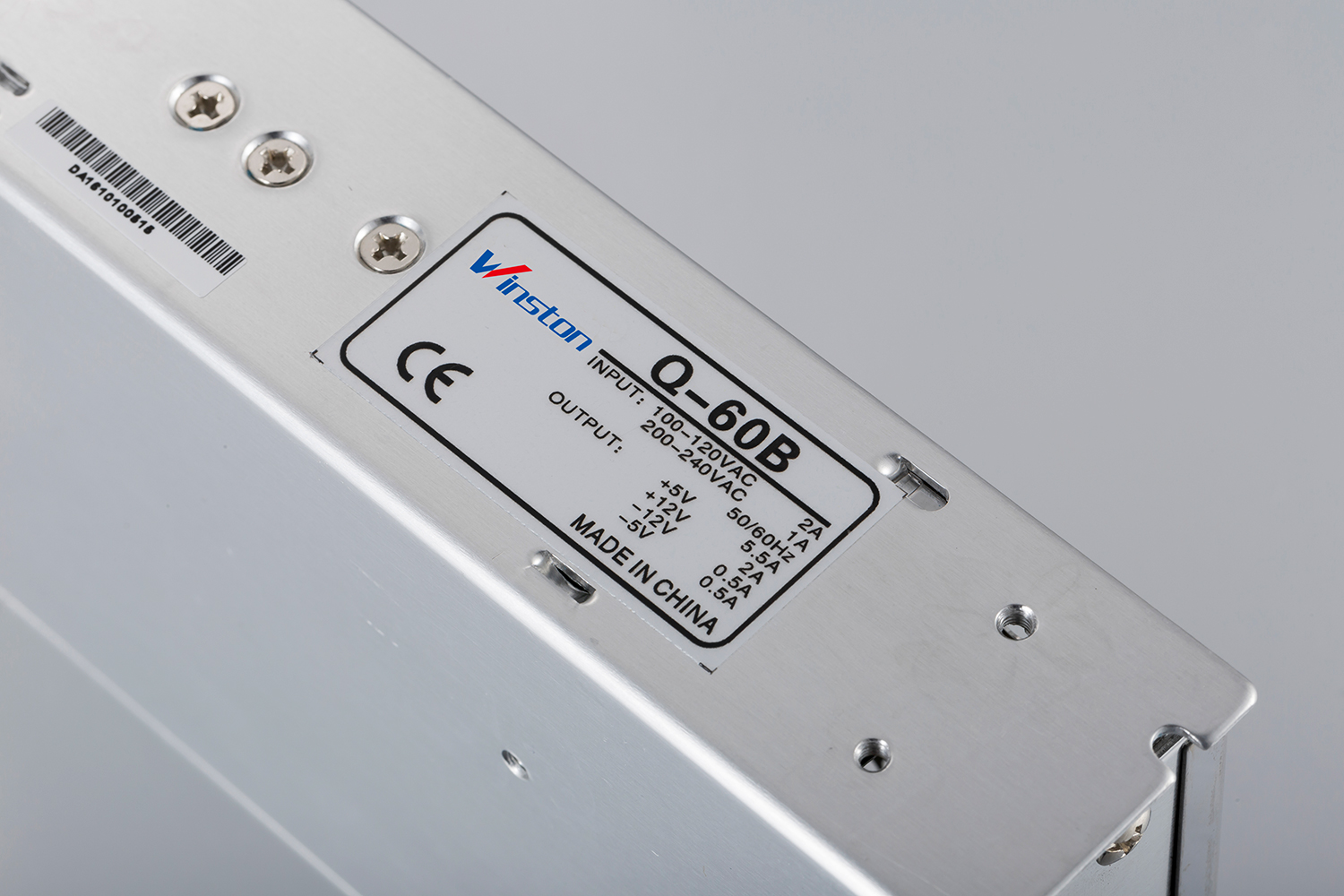

MODEL | Q-60B | Q-60C | Q-60D | |||||||||
DC VOLTAGE | 5V | 12V | -5V | -12V | 5V | 15V | -5V | -15V | 5V | 12V | 24V | -12V |
RATED CURRENT | 0~5.5A | 0~2A | 0~0.5A | 0~0.5A | 0~5.5A | 0~1.5A | 0~0.5A | 0~0.5A | 0-4A | 0~1A | 0~1A | 0~0.5A |
RIPPLE&NOISE | 100m Vp-p | 120m Vp-p | 100m Vp-p | 120m Vp-p | 100m Vp-p | 120m Vp-p | 100m Vp-p | 120m Vp-p | 100m Vp-p | 120m Vp-p | 150m Vp-p | 120m Vp-p |
EFFICIENCY | 70% | 72% | 75% | |||||||||
| INLET WIRE REGULATION | ±0.5% | ±1% | ±0.5% | ±0.5% | ±0.5% | ±2% | ±0.5% | ±0.5% | ±0.5% | ±1% | ±2% | ±0.5% |
LOAD REGULATION | ±0.5% | ±4% | ±1% | ±1% | ±0.5% | ±4% | ±1% | ±1% | ±0.5% | ±4% | ±4% | ±1% |
ADJUSTABLE RANGE FOR DC VOLTAGE | CH1:4.75-5.5V | CH1:4.75-5.5V | CH1:4.75-5.5V | |||||||||
SETUP,RISE,HOLD UP TIME | 800ms,20ms,60ms/230VAC at full load | |||||||||||
VOLTAGE RANGE | 85-264VAC/120-370VDC | |||||||||||
FREQUENCY RANGE | 47-63HZ | |||||||||||
IMPACT CURRENT | Cold start current 15A/115VAC 30A/230VAC | |||||||||||
OVERLOAD PROTECTION | 105-150% cut offtheoutput, automatic recovery | |||||||||||
OVER VOLTAGE PROTECTION | CH1:115-135% shut down O/P voltage ,re-power on to recover. | |||||||||||
WORKING TEMP | -10~ +60°C | |||||||||||
WITHSTAND VOLTAGE | I/P-O/P:1.5KV I/P-FG:1.5KV O/P-FG:0.5KV 1minute | |||||||||||
ISOLATION RESISTANCE | I/P-O/P,I/P-FG,O/P-FG:500VDC/100M Ohms | |||||||||||

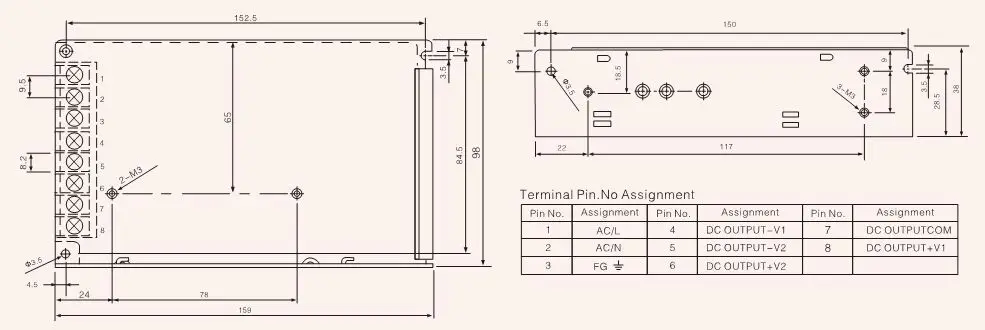

DIMENSION | 159*98*38mm | |||||||||||
WEIGHT | 0.55kg | |||||||||||
PACKING | 34*32*24cm/30pcs/15kg | |||||||||||
