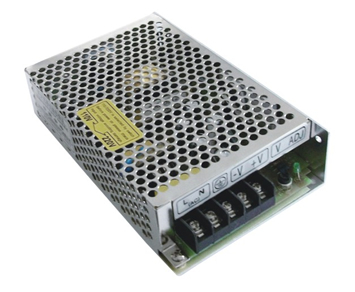

D-60 Daul output switching power supply





Model        Specification	D-60A		D-60B
	CH1	CH2	CH1	CH2
DC output voltage	5V	12V	5V	24V
Output voltage error（Note：2）	±2%	±6%	±2%	±5%
Rated output current	4A	3A	3A	1.8A
Output current rage	0.3-6A	0.2-4A	0.3-6A	0.2-2.2A
Wave and noise(Note ：3）	75mVp-p	150mVp-p	75mVp-p	150mVp-p
Inlet stability(Note ：4）	±0.5%	±1%	±0.5%	±0.5%
Load stablity (Note ：5）	±0.5%	±4%	±0.5%	±4%
DC output power	56W		58W
Efficiency	73%		73%
Adjustable range for DC voltage	CH1;+10,-5%		CH1:+10,-5%
AC input voltage range	85-264VAC 47-63Hz,120-370VDC
Input current	2A/115V 1A/230A
AC INnrush current	Cold-start current30A/115V 60A/230V
Leakage current	<1mA/240VAC
Overload proctection	105%-150%Type:Foldback:current limiting reset:auto recovery
Over-voltage protection	CH1：5.75~6.75V
High-temperature protection	…………
Temperature coefficient	±0.03%/℃（0-50℃）ON+5V
Setup rise hold up time	800ms,50ms,30ms/115AC 300ms,50ms,80ms/230AC
Vibration	10-500Hz,2G 10min,/1cycle，Period for60min，Each axes
Withstand voltage	Input and output internal：1.5KVAC,Input and enclosure：1.5KVAC,Output and enclosure：0.5KVAC
Isolation resistance	Input and output internal:Input and enclosure,Output and enclosure：500VDC/100MΩ
Working temperature and humidity	-10℃~+60℃（Refer to output derating curve），20%~90%RH
Store temperature and humidity	-20℃~+85℃。10%~95%RH
Overall dimension	159×97×38mm
Weight	0.55Kgs
Safety standards	UL 1012 TUV EN60950(IEC950,UL1950)Approved
EMC standards	CISPR22（EN55022）class B，IEC801-2，3，4，IEC555-2 Approved
Note：        1.The testing condition for the paramenter above is :230VAC input,rated load,25℃70% RH.Humidity.        2.Error.include the setting error,line stability and load stability.(Note:5).        3.Wave test:adopting "A12"double wire for 20MHz,and 0.1UF&47UF capacitor short-circuit for interrupting.        4.Inlet voltage stability test:when is over load,the lowest voltage of inlet is up to the highest voltage.        5.Load stability test:the load is from 0% to 100%.        6.Total output canbe maximum Current,total load can not exceed the maximum output power        7、C2、3、6 must be knocked down.
