D-60W
Winston
1) High Efficiency, High Reliability, Low Cost
2) AC Input Range:85-264VAC 120-370 VDC
3) 100% Full Load Burn-In Test
4) Protections: Short Circuit / Over Load/Over Voltage
5) LED Indicator For Power On
6) Cooling By Free Air Convection
7) Approvals: CE RoHS
8) 2 Year Warranty.
2.Specification
MODEL | D-60A | D-60B | D-60C | D-60F | ||||
DC VOLTAGE | 5V | 12V | 5V | 24V | 12V | -12V | 12V | 24V |
RATED CURRENT | 0~4A | 0~3A | 0~3A | 0~1.8A | 1~2.5A | 0.3~2.5A | 1~2A | 0.2~1.5A |
RIPPLE&NOISE | 70mVp-p | 150mVp-p | 75mVp-p | 150mVp-p | 100mVp-p | 100mVp-p | 100mVp-p | 120mVp-p |
EFFICIENCY | 73% | 73% | 73% | 73% | ||||
ADJUSTABLE RANGE FOR DC VOLTAGE | ±10% | ±5% | ±10% | ±5% | ±10% | ±5% | ±10% | ±5% |
LINE REGULATION | ±0.5% | ±1% | ±0.5% | ±0.5% | ±1% | ±1% | ±1% | ±1% |
LOAD REGULATION | ±0.5% | ±4% | ±0.5% | ±4% | ±5% | ±5% | ±0.5% | ±8% |
SETUP,RISE,HOLD UP TIME | 300ms,50ms,80ms at full load | |||||||
VOLTAGE RANGE | 85-264VAC/120-370VDC | |||||||
FREQUENCY RANGE | 47-63HZ | |||||||
IMPACT CURRENT | Cold start current 30A/115VAC 60A/230VAC | |||||||
OVERLOAD PROTECTION | 105-150% cut offtheoutput, automatic recovery | |||||||
OVER VOLTAGE PROTECTION | CH1:115-135% shut down O/P voltage ,re-power on to recover. | |||||||
WORKING TEMP | -10~ +50°C | |||||||
WITHSTAND VOLTAGE | I/P-O/P:1.5KV I/P-FG:1.5KV O/P-FG:0.5KV 1minute | |||||||
ISOLATION RESISTANCE | I/P-O/P,I/P-FG,O/P-FG:500VDC/100M Ohms | |||||||

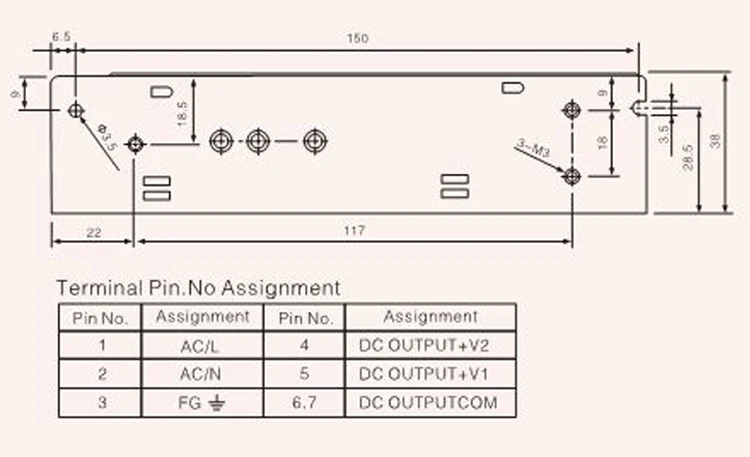

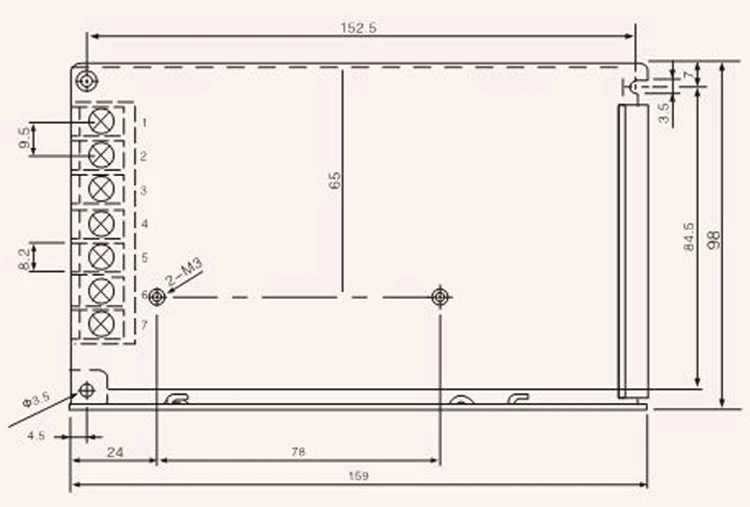

DIMENSION | 159*98*38mm | |||||||
WEIGHT | 0.55kg | |||||||
PACKING | 34*32*24cm/30pcs/15kg | |||||||
