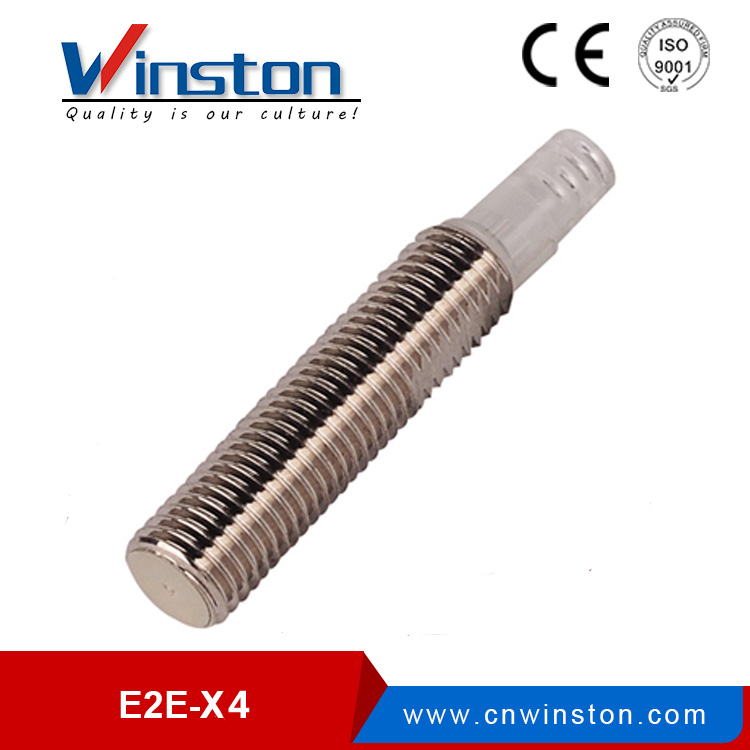

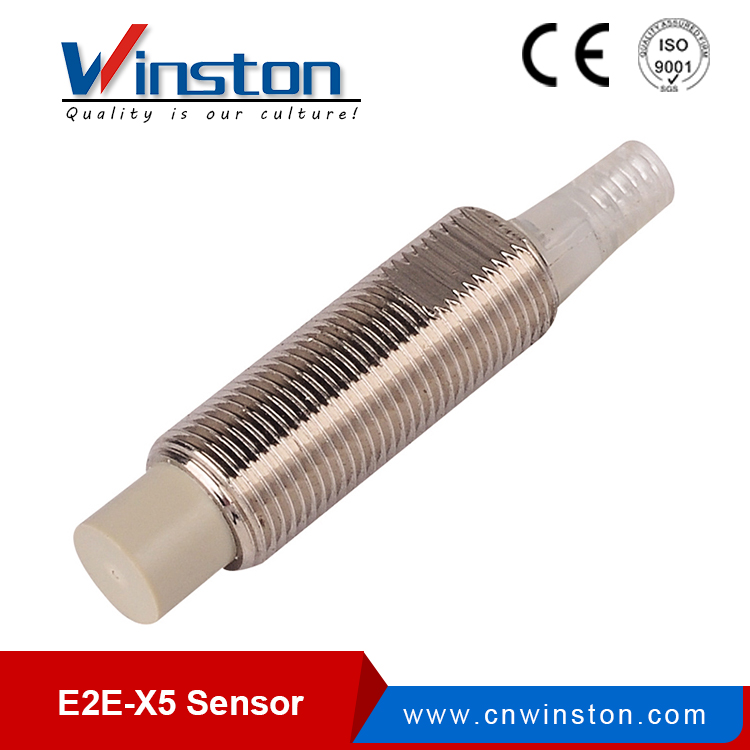

E2E-X4 flush E2E-X5 non-flush NPN PNP inductive switch sensor with ce

Share to:

E2E-X4 flush E2E-X5 non-flush NPN PNP inductive switch sensor with ce

Availability:

Quantity:



Inquire Add to Basket

Model:
E2E-X4, E2E-X5
Brand:
Winston

Product Description

Model Explanation

E2E-X4	Detection Distance				4mm
	Flush	DC 6-36VDC	NPN	NO	E2E-X4E1
				NC	E2E-X4E2
				NO+NC	E2E-X4E3
			PNP	NO	E2E-X4F1
				NC	E2E-X4F2
				NO+NC	E2E-X4F3
			Two wire system	NO	E2E-X4D1
				NC	E2E-X4D2
		AC90-250VAC	SCR Control-lable silicon	NO	E2E-X4Y1
				NC	E2E-X4Y2
E2E-X5	Detection Distance				5mm
	Non-Flush	DC 6-36VDC	NPN	NO	E2E-X5ME1
				NC	E2E-X5ME2
				NO+NC	E2E-X5ME3
			PNP	NO	E2E-X5MF1
				NC	E2E-X5MF2
				NO+NC	E2E-X5MF3
			Two wire system	NO	E2E-X5MD1
				NC	E2E-X5MD2
		AC90-250VAC	SCR Control-lable silicon	NO	E2E-X5MY1
				NC	E2E-X5MY2
	Control output	DC	200mA
		SCR/Relay	300mA
	Output vol;tage drop DC/AC		DC (NPN PNP) type 3V or less,Two wire 3.9Vor less, AC 10Vor less DC
	Consumption current		DC (NPN PNP) type 12V 8mA,24V 15mA , AC 10mA or less DC
	Repeated precision		0.5
	DC/AC		200Hz/10Hz
	Working environment temperature		—25℃ ~ + 65 ℃
	Insulation resistance		50MΩ
	Shell material		Metal
	Protection grade		IP67

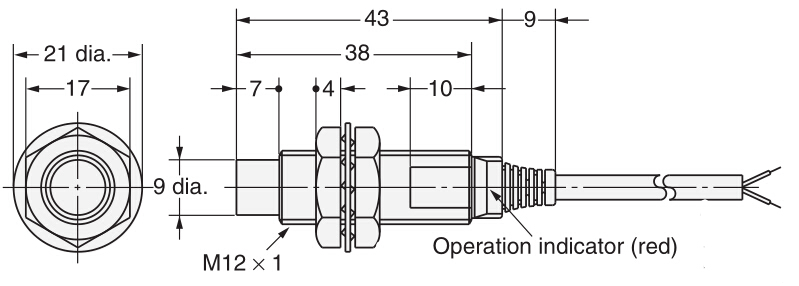

Overall dimensions

e2e-x4 -2 12.jpg

e2e-x5 1.jpg
