E2E -X
Winston

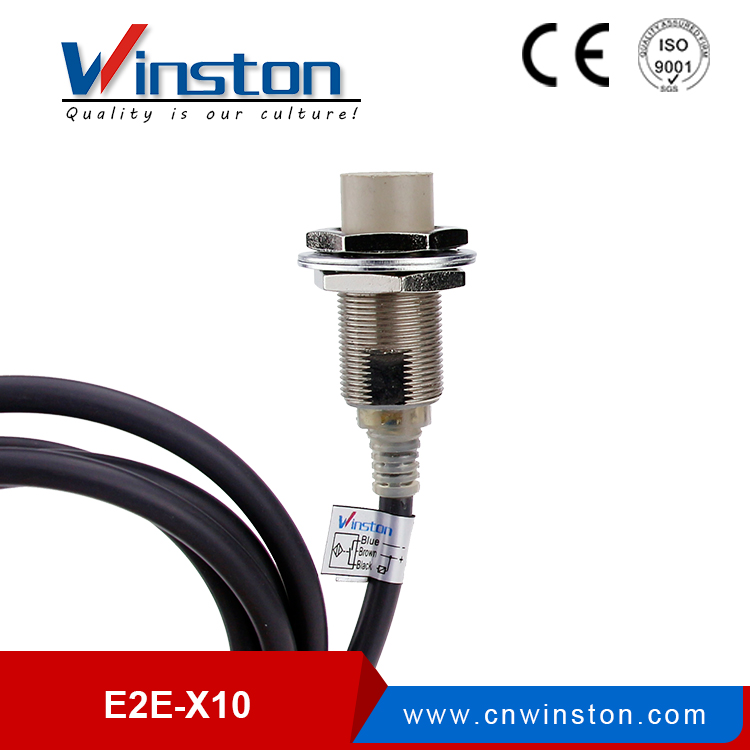

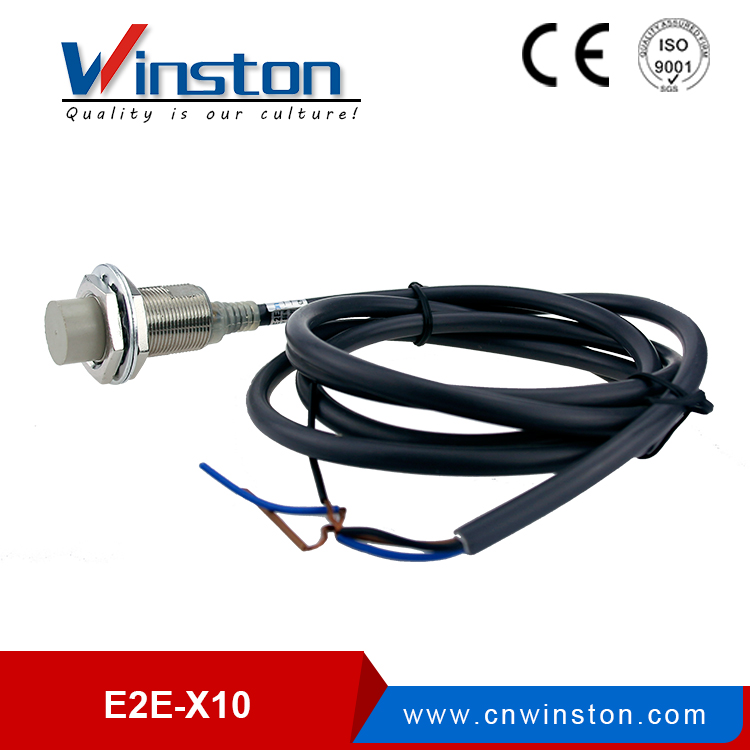

E2E-X10 Proximity sensor

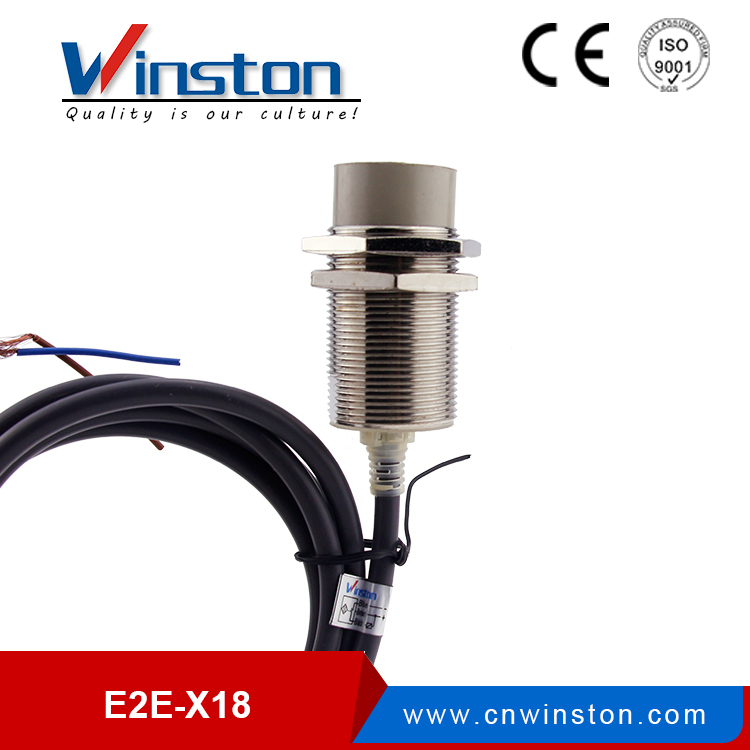

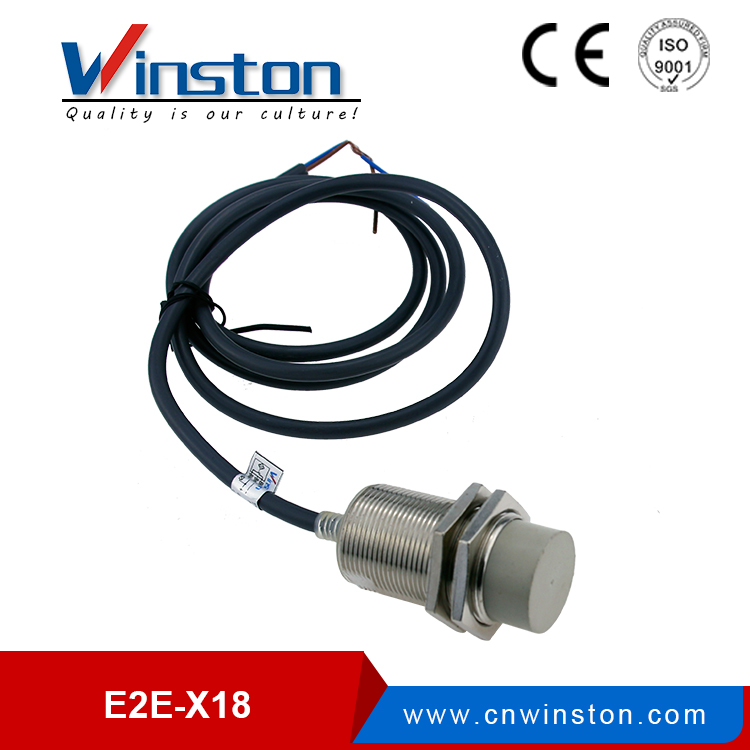

E2E-X18 Proximity sensor
E2E-X10 Proximity sensor
E2E-X18 Proximity sensor
| Voltage | DC12~24V (P-P)fluctuate at 10% less | ||||||||
| Power voltage | 13mA less | ||||||||
| Standard deteced object | magnetic metal | ||||||||
| standard detected object | 8×8×1mm | 12×12×1mm | 2×12×1mm | 15×15×1 mm | 18×18×1 mm | 30×30×1 mm | 30×30×1 mm | 54×54×1 mm | |
| tolerance distance | 10% of detection distance less | ||||||||
| tolerance frequency *3 | 2.0kHz | 0.8kHz | 1.5kHz | 0.4kHz | 0.6kHz | 0.2kHz | 0.4kHz | ||
| output control (switch capacity)*2 | max 200mA | ||||||||
| influence of temperature | within 10% of detection distance at +23 C in the range of -25~+70 C | ||||||||
| influence of voltage | ±15% / ±1% | ||||||||
| residual voltage | (Load current of 200 mA and 2 m long conductor) | ||||||||
| insulation resistance | between the main body and crust of charger | ||||||||
| Crust | Cuzn | PBT | |||||||
Item NO. | M8 | M12 | M18 | M30 | |||||
Shield | Non-shield | Shield | Non-shield | Shield | Non-shield | Shield | Non-shield | ||
E2E-1R5E | E2E-X2ME | E2E-X2E | E2E-X5ME | E2E-X5E | E2E-X10ME | E2E-X10E | E2E-X18ME | ||
1.5mm±10% | 2mm±10% | 2mm±10% | 5mm±10% | 5mm±10% | 10mm±10% | 10mm±10% | 18mm±10% | ||
| Dimension | Detecting distance | Output | Item NO. | |
| Shield | M8 | 1.5mm | NO | E2E-X1R5Y1 |
| M12 | 2mm | NO | E2E-X2Y1 *1.2 | |
| NC | E2E-X2Y2 | |||
M18 | 5mm | NO | E2E-X5Y1 *1.2 | |
| NC | E2E-X5Y2 | |||
| M30 | 10mm | NO | E2E-X10Y1 *1.2 | |
| NC | E2E-X10Y2 | |||
| | M8 | 2mm | NO | E2E-X2MY1 |
| M12 | 5mm | NO | E2E-X5MY1 *1.2 | |
| NC | E2E-X5MY2 | |||
| M18 | 10mm | NO | E2E-X10MY1 *1 | |
| NC | E2E-X10MY2 | |||
| M30 | 18mm | NO | E2E-X18MY1 *1 | |
| NC | E2E-X18MY2 | |||
| Voltage | DC12~24V (P-P)fluctuate at 10% less | ||||||||
| Power voltage | 13mA less | ||||||||
| Standard deteced object | magnetic metal | ||||||||
| standard detected object | 8×8×1mm | 12×12×1mm | 2×12×1mm | 15×15×1 mm | 18×18×1 mm | 30×30×1 mm | 30×30×1 mm | 54×54×1 mm | |
| tolerance distance | 10% of detection distance less | ||||||||
| tolerance frequency *3 | 2.0kHz | 0.8kHz | 1.5kHz | 0.4kHz | 0.6kHz | 0.2kHz | 0.4kHz | ||
| output control (switch capacity)*2 | max 200mA | ||||||||
| influence of temperature | within 10% of detection distance at +23 C in the range of -25~+70 C | ||||||||
| influence of voltage | ±15% / ±1% | ||||||||
| residual voltage | (Load current of 200 mA and 2 m long conductor) | ||||||||
| insulation resistance | between the main body and crust of charger | ||||||||
| Crust | Cuzn | PBT | |||||||
Item NO. | M8 | M12 | M18 | M30 | |||||
Shield | Non-shield | Shield | Non-shield | Shield | Non-shield | Shield | Non-shield | ||
E2E-1R5E | E2E-X2ME | E2E-X2E | E2E-X5ME | E2E-X5E | E2E-X10ME | E2E-X10E | E2E-X18ME | ||
1.5mm±10% | 2mm±10% | 2mm±10% | 5mm±10% | 5mm±10% | 10mm±10% | 10mm±10% | 18mm±10% | ||
| Dimension | Detecting distance | Output | Item NO. | |
| Shield | M8 | 1.5mm | NO | E2E-X1R5Y1 |
| M12 | 2mm | NO | E2E-X2Y1 *1.2 | |
| NC | E2E-X2Y2 | |||
M18 | 5mm | NO | E2E-X5Y1 *1.2 | |
| NC | E2E-X5Y2 | |||
| M30 | 10mm | NO | E2E-X10Y1 *1.2 | |
| NC | E2E-X10Y2 | |||
| | M8 | 2mm | NO | E2E-X2MY1 |
| M12 | 5mm | NO | E2E-X5MY1 *1.2 | |
| NC | E2E-X5MY2 | |||
| M18 | 10mm | NO | E2E-X10MY1 *1 | |
| NC | E2E-X10MY2 | |||
| M30 | 18mm | NO | E2E-X18MY1 *1 | |
| NC | E2E-X18MY2 | |||
