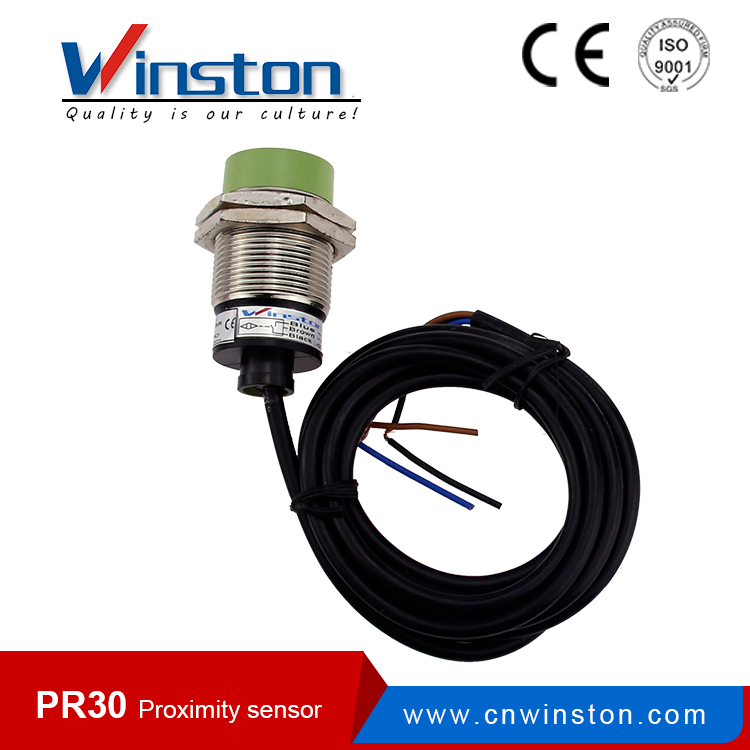

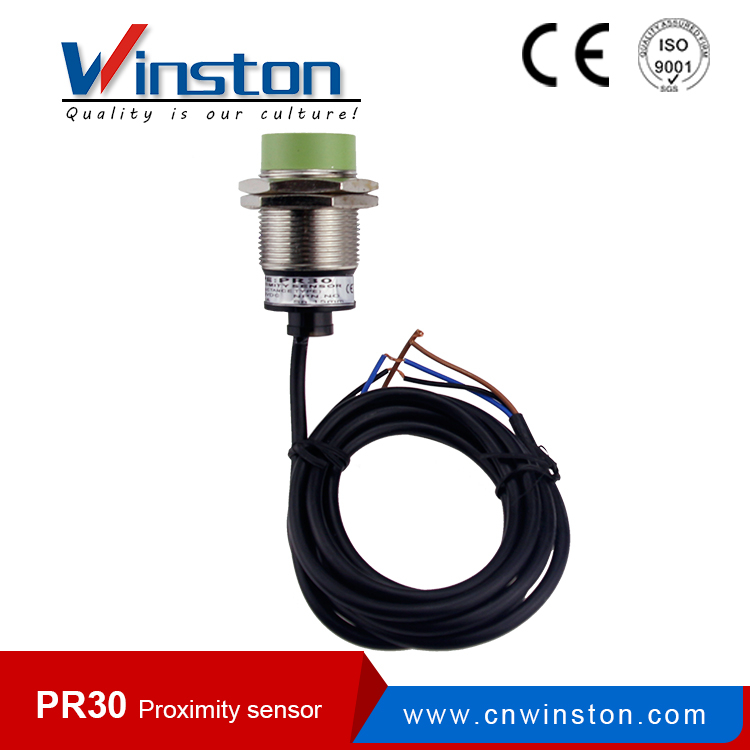

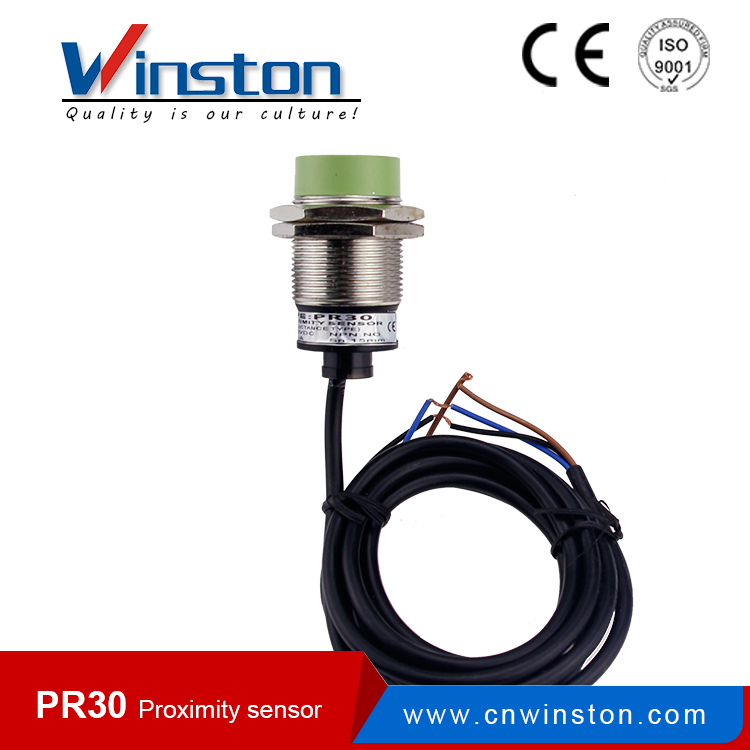

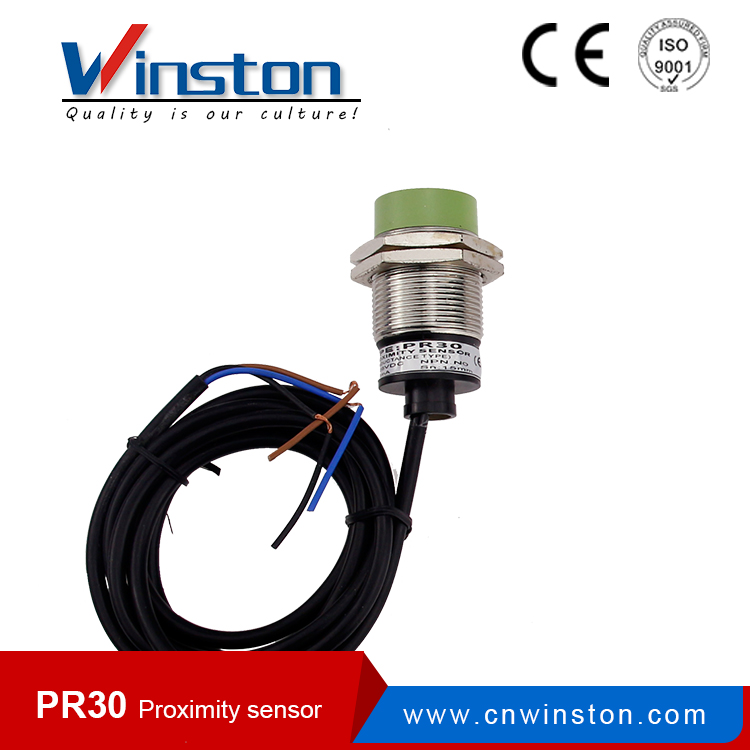

PR30
Winston
Compact volume
high precision of repeated location
Diversified exterior structures
Good performance of anti-interference.
Many output forms
High on-off frequency.
Wide voltage range
Dust proof,vibration proof,water proof and oil proof.
With short-circuit protection and inverted connecting protection.
Long service life
Compact volume
high precision of repeated location
Diversified exterior structures
Good performance of anti-interference.
Many output forms
High on-off frequency.
Wide voltage range
Dust proof,vibration proof,water proof and oil proof.
With short-circuit protection and inverted connecting protection.
Long service life
Technical Parameters:
| 10mm | ||||
| Flush | DC 10-30V | NPN | NO | PR30-10DN |
| NC | PR30-10DN2 | |||
| NO+NC | PR30-10DN3 | |||
| PNP | NO | PR30-10DP | ||
| NC | PR30-10DP2 | |||
| NO+NC | PR30-10DP3 | |||
| two wire system | NO | PR30-10DO | ||
| NC | PR30-10DC | |||
| AC 90-250V | SCR Control-lable silicon | NO | PR30-10AO | |
| NC | PR30-10AC | |||
| NO+NC | ||||
| Relay output | ||||
| DETECTION DISTANCE 15MM | ||||
| Non-Flush | DC 10-30V | NPN | NO | PR30-15DN |
| NC | PR30-15DN2 | |||
| NO+NC | PR30-15DN3 | |||
| PNP | NO | PR30-15DP | ||
| NC | PR30-15DP2 | |||
| NO+NC | PR30-15DP3 | |||
| two wire system | NO | PR30-15DO | ||
| NC | PR30-15DC | |||
| AC 90-250V | SCR Control-lable silicon | NO | PR30-15AO | |
| NC | PR30-15AC | |||
| NO+NC | ||||
| Relay output | ||||
| Controloutput | DC | 200mA | ||
| SCR/ Relay | 300mA/2A | |||
| Output voltagc dropDC/AC | NPN/PNP<3V,Two wire<3V,AC<10V | |||
| Consumption current | DC<15mA,AC<10mA | |||
| Standard detected object | | |||
| Repeated precision | | |||
| DC/AC | ||||
| Working environment temperature | | |||
| Insulation resistance | | |||
| Shell material | | |||
| Protection grade | ||||
| Altemative model at home and abroad | ||||
