DL85-2030
Winston
Products Description
DL85-2030 digital AC voltage and DC voltage dual display meter is to display the measured AC
voltage and DC voltage simultaneously on one meter. The AC voltage and DC voltage are completely
isolated on the meter and the measurement circuit does not interfere with each other. Widely used in
switching power supplies, inverters, car modification, power distribution automation.
Features
Measurement Range & Rate: AC measurement range is 130-250V, DC measurement range is 0-
600V, measurement rate is about 2 times per second.
LED Display & No Need Power Supply: the volt reader is designed with 0.39in Green LED for DC
voltage monitor, Red LED for AC voltage monitor; no need external power supply.
Easy Wring: connect the measured DC voltage to the terminal of 1 and 2( blue ); connect the
measured AC voltage to the terminal of 3 and 4 ( green ).
Note: The meter begins to display the measured value after the AC voltage input is connected, and
the meter will not be displayed when there is only DC voltage input.
Technical Parameters
Model | DL85-2030 |
Power supply | AC80-150VAC~DC0-99.9V AC80-150VAC~DC-600V AC130-250V~DC0-99.9V AC130-250V~DC-600V |
Power consumption | <0.2VA |
Display | LED |
Color | Red,Green |
Shell color | Black/White |
Size | 70*40*39mm |
Install size | 68*38mm |
Accuracy | 0.1%±2 words |

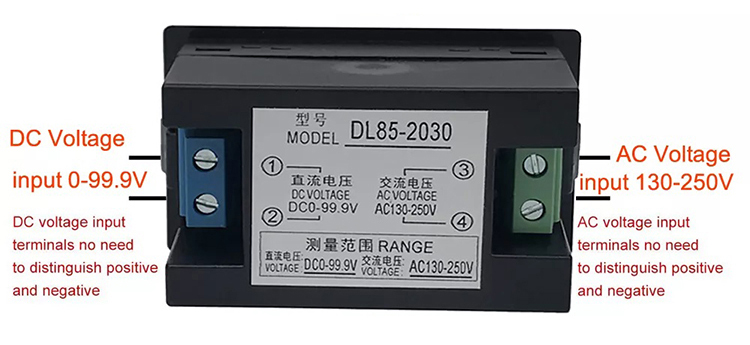

Wiring diagram
Dimension
Details Images
