AC 80-300V 100A Digital dual display LED AC voltmeter ammeter Amp Volt Current Meter Panel Meters

Availability:
Quantity:
  • DL85-2042
  • Winston

AC 80-300V 100A Digital dual display LED AC voltmeter ammeter
Amp Volt Current Meter Panel Meters


Products Description


   AC voltage and current meter can display AC voltage and current at the same time.

If the measuring current is lower than100.0A.You can get the AC current only making

the wire across the CT on the meter.


Features


1.Display the AC voltage and current simultaneously by LED digital tube.

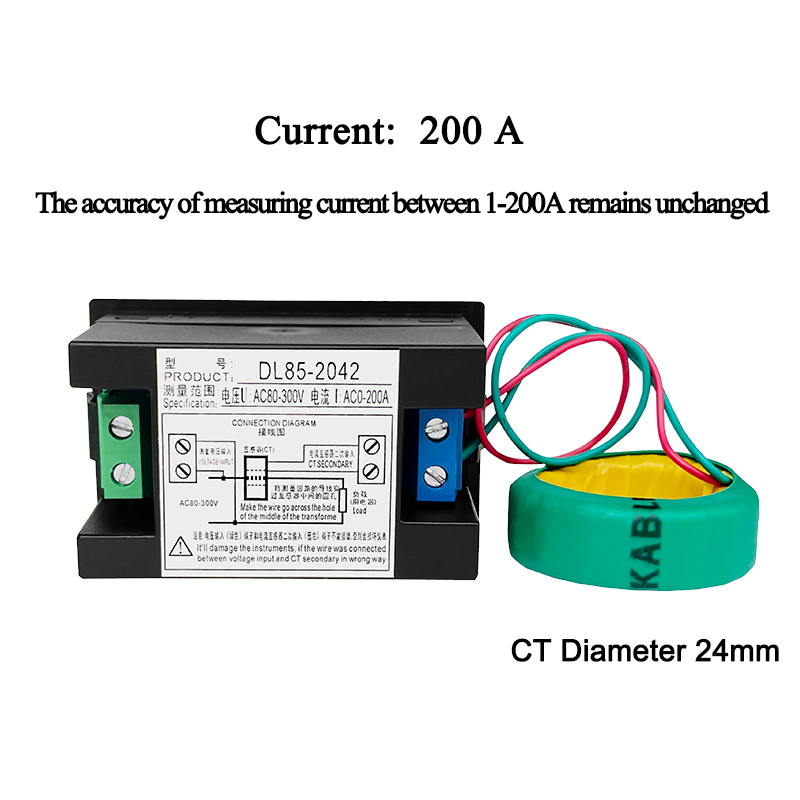

2.Including one independent small precise current transformer with a rear cover.

3.Wide measurement voltage and current range.

4.No need to add power supply and AC transformer.

5.Widely used in audio amplifier, power distribution box, distribution cabinet, regulators,

   teaching aids, household small distribution box, etc.


Technical Parameters


Model
DL85-2042
Power supply
AC80-300VAC for 110V 220V,
200-450V for 380V;
AC0-100A,AC0-200A
Power
Two wire(no need working power supply)
Display
LED
Color
Red,Green
Shell color
Black/White
CT
External
Size
70*40*20mm
Install size
68*38mm
Accuracy
0.5%±2 words

O1CN01DrVpPL1odAuHViGp4O1CN01mp2J871odAuO6TFtO1CN01qjzDZL1H3Yiv6E8dk_O1CN019xb4751H3Yiv6Bn6F_b


Details Images


O1CN01azus1g26mTwxm8HK7-1O1CN010Ov7IG1H3YirELZTE-1O1CN01wrp5q61odAuNXIKOP_!!-1


Packaging & Shipping


说明板块_02
