AC 80-300V LCD Digital Display EU US AU Plug Socket Tester Electric pen Volt Voltage Meter Voltmeter

Availability:
Quantity:
  • DM55-1
  • Winston

AC 80-300V LCD Digital Display EU US AU Plug Socket Tester
Electric pen Volt Voltage Meter Voltmeter


Products Description


  Plug-in digital voltmeter (electric pen voltmeter) is widely used in AC80-300V detection

(real-time monitoring current grid voltage).Plug the voltmeter directly into power or into

the switch on the wall , it can immediately display the current voltage (whether home,

office, industrial and mining enterprises, etc.).The biggest advantage is that when you

see the current voltage is too low or too high, you can selectively turn off certain

appliances or equipment operation (especially low voltage easy burning appliances),

thus effectively protecting your appliances and longing equipment life (It can also be

used as a simple electrical measuring pen).


Features


1. Wide measuring range: This measuring voltage range of plug-in voltage monitor is

    AC 80-300V(110V, 220V), low consumption.

2. Flat plug: Designed as a flat plug, plug-in design, this volt tester can immediately detect

    and measure the current voltage by connecting to the switch plug or wall socket.

3. Function: It helps to check on power health of devices for preventing the low voltage damage

    to your household appliances.

4. LCD display: LCD digital display with blue backlight, clear and convenient for you to view

    the data even in a dark room.

5. Applications: Widely apply to measuring the AC voltage in family, office, industrial etc.

6. Good quality: Constructed from good quality ABS material, impact resistant, eco-friendly

    and flame resistant.

7. Easy to carry: Mini size and light weight, portable to transport and store.


Application


1. According to connection graph, connect the green wire of secondary current transformer

    to the blueterminal of meter and make the wire of measurement circuit through the hole

    in the current transformer.

2. Supply power and start to measure and display the result.

3. Press down the button last for 5 second, the electric energy will to be zero.


Technical parameter


Model
DM55-1 Electric pen voltmeter
Power supply
AC80-300VAC for 220V,
AC80-199VAC for 110V;
Plug
Euro type
Flat us type
Display
LCD
Color
Red,Green
Shell color
White
Material
Flame-retardant PC
Size
55.5*40.5*25mm
Frequency
50-60Hz
Accuracy
0.5%±2 words

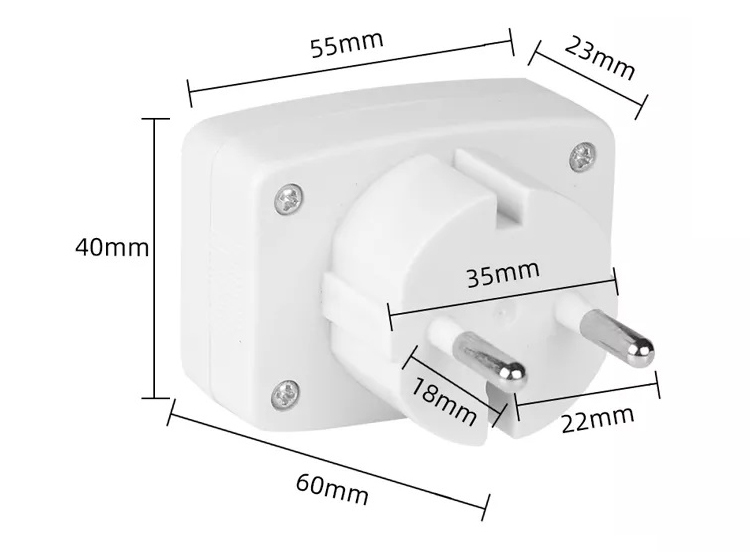

Dimension


1652689434(1)-1

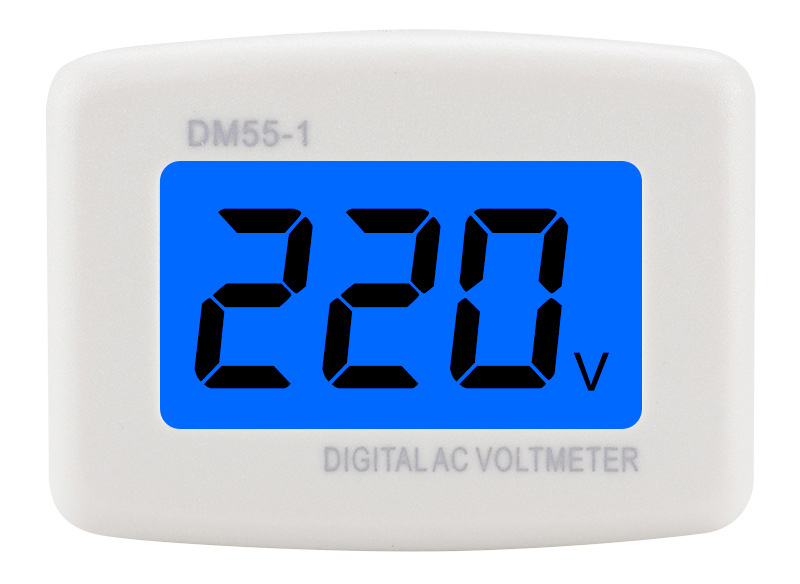

Details Images


22569846727_43247173-122569888083_43247173-122653598783_43247173-1
