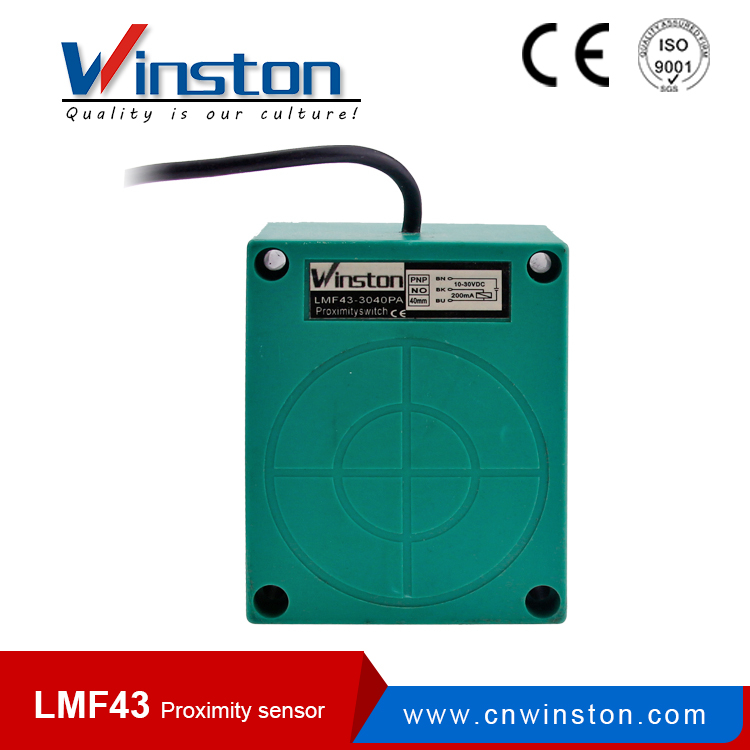

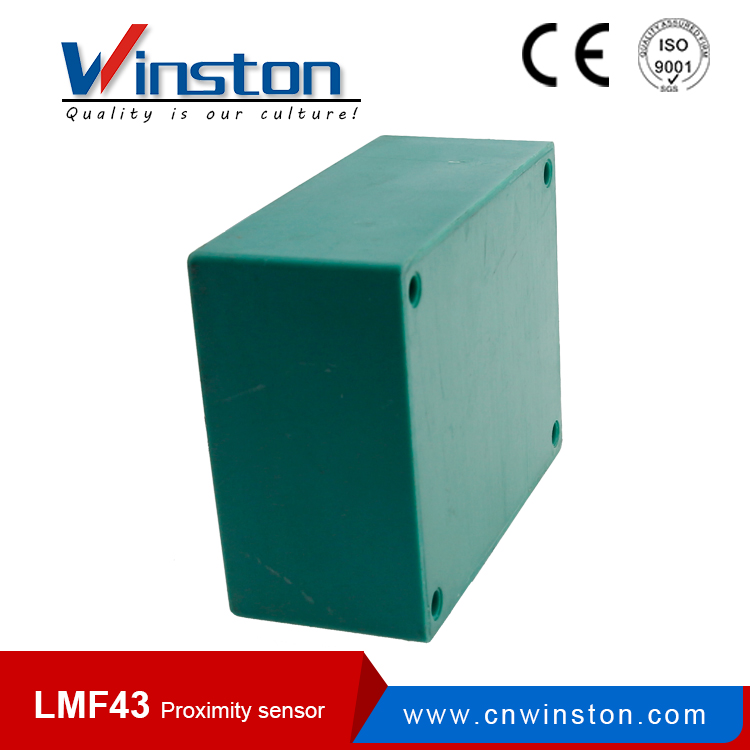

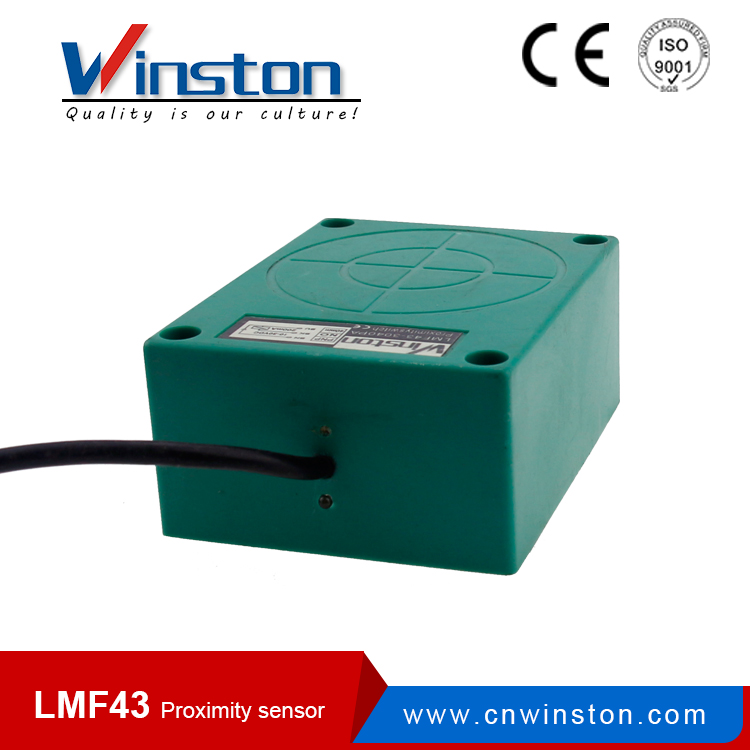

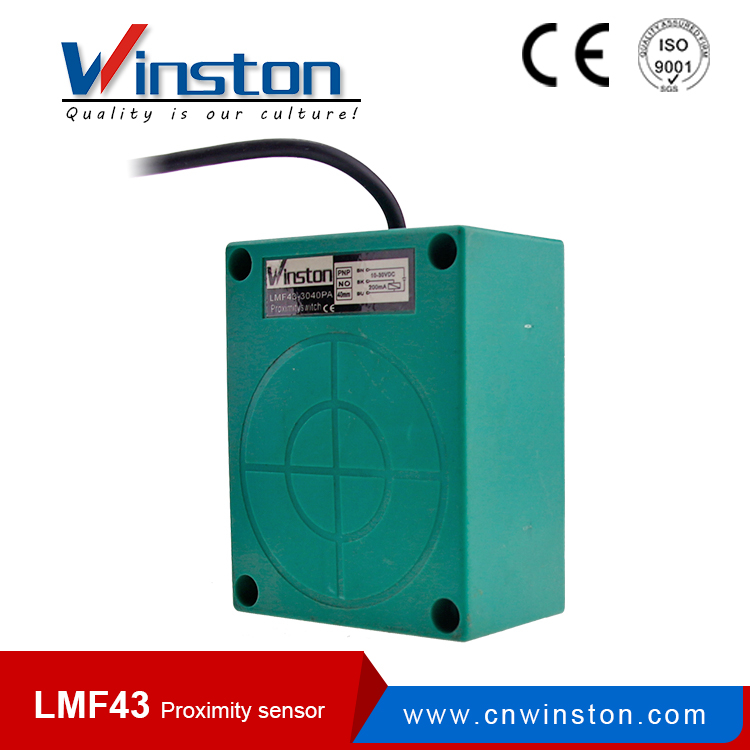

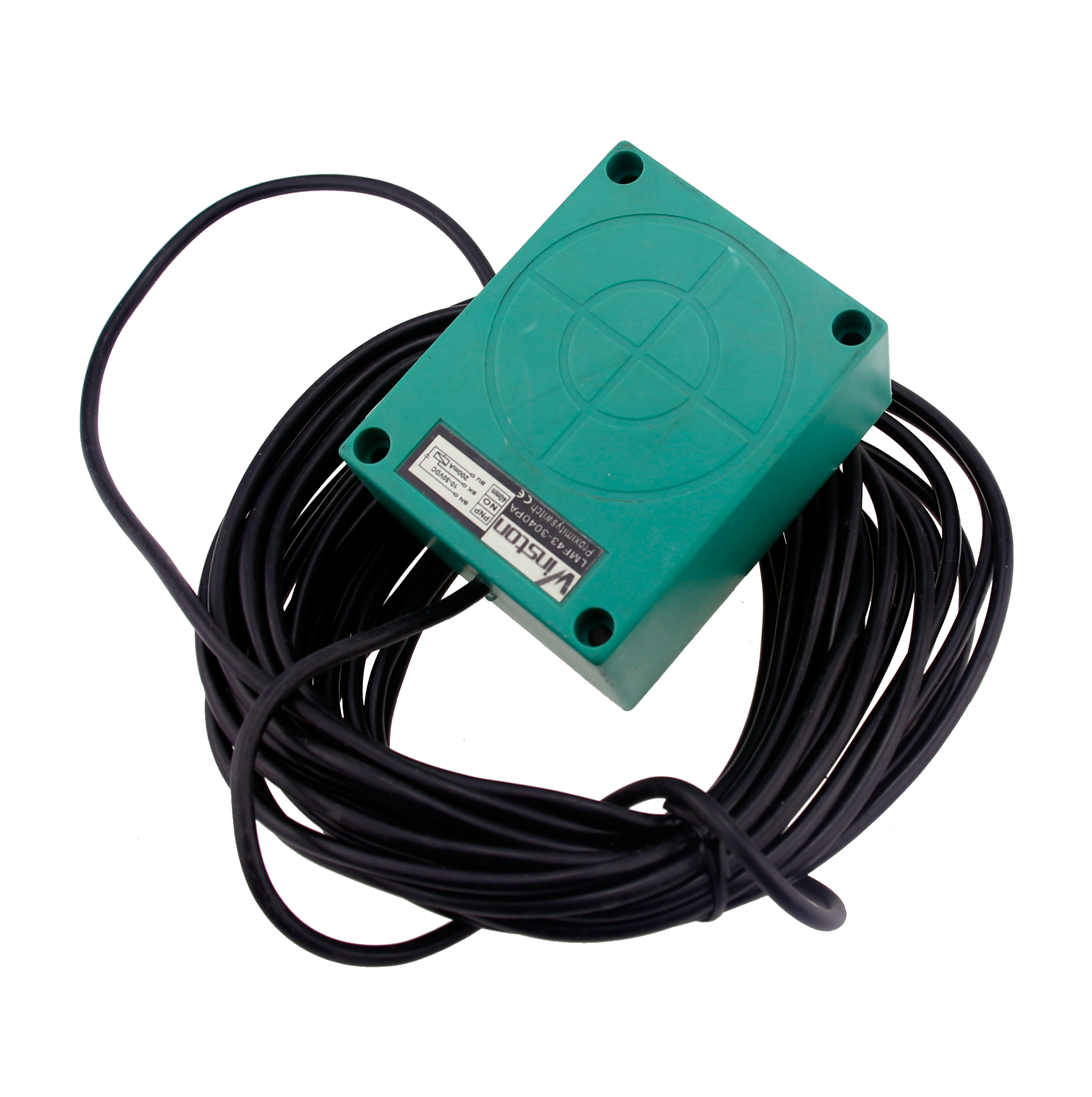

LMF43
Winston
Compact volume
high precision of repeated location
Diversified exterior structures
Good performance of anti-interference.
Many output forms
High on-off frequency.
Wide voltage range
Dust proof,vibration proof,water proof and oil proof.
With short-circuit protection and inverted connecting protection.
Long service life
Compact volume
high precision of repeated location
Diversified exterior structures
Good performance of anti-interference.
Many output forms
High on-off frequency.
Wide voltage range
Dust proof,vibration proof,water proof and oil proof.
With short-circuit protection and inverted connecting protection.
Long service life
Model explanation of proximity switch
1. Switch category(LM: inductance type; CM: capactitance type;SM:Hall type; AM:safety explosion-proof type; XM: mimic linear type).
2. Outward appearance code(C: Cylinder type; F: Angular column type and planeinstallation type).
3. Operating voltage(30: 6-36VDC; 310: 5-24VDC; 320: 12-60VDC; 20:90-250VAC; 210: 24-250VAC;220: 380VAC; 40: 12-240VDC/24-240AC; 50: Special voltage).
4. Detection distance( 01: 1mm; 05:5mm; 10:10mm)
5. Output method (N: Three-line DC NPN output;P: Three-line DC PNP output; L: Two-line DC output; AC two-wire output; J: Relay output;NP: NPN+PNP output).
6. Output status(A: NO; B: NC; C: NO+NC; MU: Mimic voltage; MI: Mimic current).
7. Auxi function code(T: With connector; Y: Water proof, oil proof; I: Special requirement; H: High temp resistance; R: Ring type).
Technical Parameters:
| OVERALL DIMENSIONS |
| |||
| DETECTION DISTANCE | ||||
| Flush | DC 10-30V | NPN | NO | |
| NC | ||||
| NO+NC | ||||
| PNP | NO | |||
| NC | ||||
| NO+NC | ||||
| two wire system | NO | |||
| NC | ||||
| AC 90-250V | SCR Control-lable silicon | NO | ||
| NC | ||||
| NO+NC | ||||
| Relay output | ||||
| DETECTION DISTANCE 40MM | ||||
| Non-Flush | DC 10-30V | NPN | NO | LMF43-3040NA |
| NC | LMF43-3040NB | |||
| NO+NC | LMF43-3040NC | |||
| PNP | NO | LMF43-3040PA | ||
| NC | LMF43-3040PB | |||
| NO+NC | LMF43-3040PC | |||
| two wire system | NO | LMF43-3040LA | ||
| NC | LMF43-3040LB | |||
| AC 90-250V | SCR Control-lable silicon | NO | LMF43-2040A | |
| NC | LMF43-2040B | |||
| NO+NC | LMF43-2040C | |||
| Relay output | LMF43-2040JC | |||
| Controloutput | DC | 200mA | ||
| SCR/ Relay | 300mA/2A | |||
| Output voltagc dropDC/AC | NPN/PNP<3V,Two wire<3.9V,AC<10V | |||
| Consumption current | DC<15mA,AC<10mA | |||
| Standard detected object | 100*100*1(A3 iron) | |||
| Repeated precision | 0.05 | |||
| DC/AC | 300HZ/10HZ | |||
| Working environment temperature | -25℃～+70℃ | |||
| Insulation resistance | 50MΩ | |||
| Shell material | ABS Resin | |||
| Protection grade | IP65 | |||
| Altemative model at home and abroad | ||||
