Mes-145/100 Series 800/5A to 3000/5A DIN Rail Current Transformer

Quantity:
  • MES-145/100
  • Winston

Mes-145/100 Series 800/5A to 3000/5A DIN Rail Current Transformer

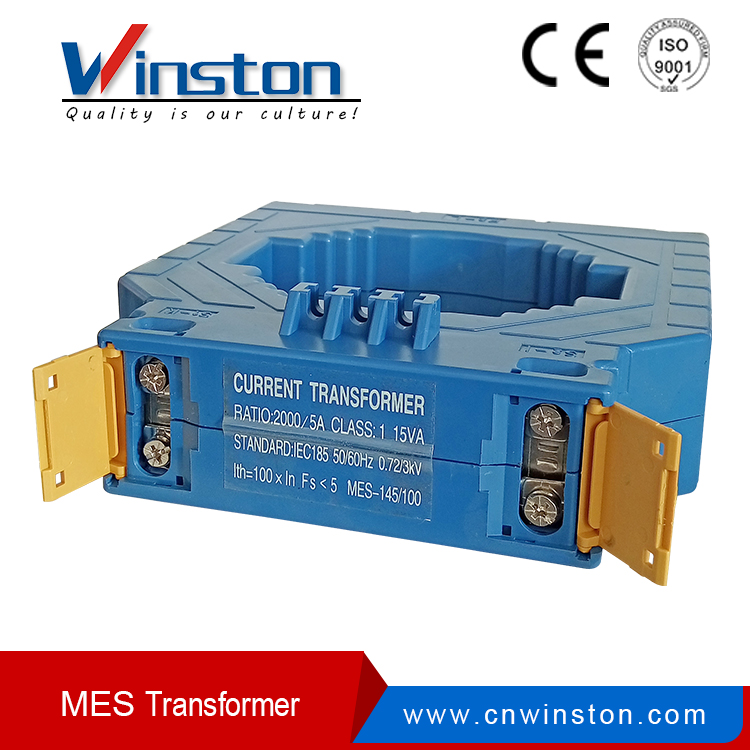

mes-transformer


Feature

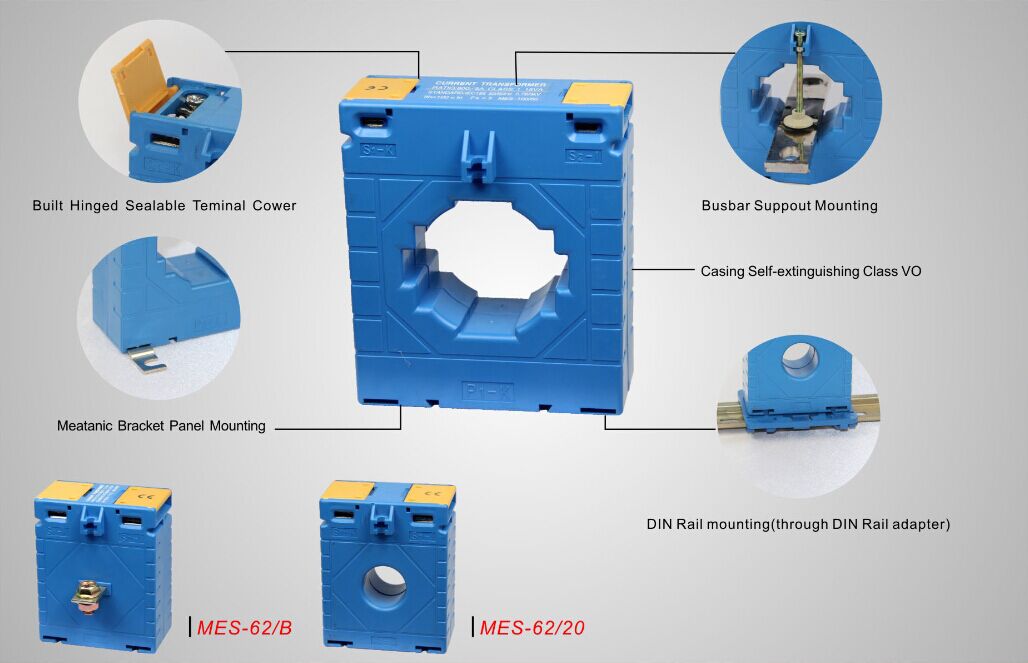

Three installation methods: Panel / Busbar/ Din Rail
Built-in hinged Terminal Cover
Primary current :up to 3000A
Second Current: 5A or 1A

Specifications:

Rated frequency 50Hz/60Hz
Rated test voltage 3kv AC (1min)
Rated short-time thermal current (lth) 60in
Rated dynamic current (ldyn) 2.5lth
Rated voltage (Um) 0.72kv AC
Continuous overload (ld) 1.2In
Operating temperature -10°C~50°C
Housing self-extinguishing class VO
Safety factor FS 5
Secondary current 5A / 1A


MES-145/100 Series Datasheet

Type Ration Current (A) Rated power (VA)
Class: 0.5 Class: 1.0
MES-145/100 800/5 15 25
MES-145/100 1000/5 15 25
MES-145/100 1200/5 15 25
MES-145/100 1250/5 15 25
MES-145/100 1500/5 15 25
MES-145/100 1600/5 15 2.5
MES-145/100 2000/5 15 25
MES-145/100 2500/5 15 25
MES-145/100 3000/5 15 25

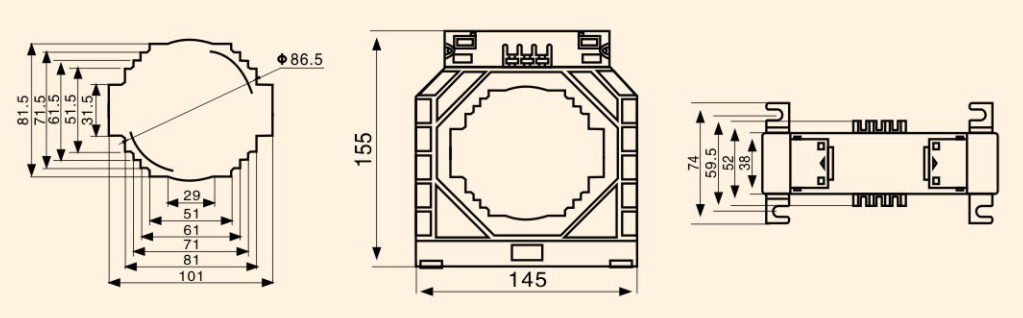

Dimension:

MES 145.png
