MES-62/20 30/5A 40/5A 55/5A 60/5A 75/5A 100/5A Instrument Current Transformer

Availability:
Quantity:
Inquire Add to Basket

  • MES-62/20

  • Winston

Description



A range of  (9 Models) compact design plastic case current transformer . It`s volume is much smaller than general model, integral hinged plate terminal cover, DIN rail mounting all makes this series CT match the requipment in space limited panels.



Feature

Three installation methods: Panel / Busbar./ Din Rail
Built-in hinged Terminal Cover
Primary current :5A up to 150A
Second Current: 5A or 1A





MES-62/20 30/5A 40/5A 55/5A 60/5A 80/5A 100/5A Current Transformer With CE


Model MES-62/20
Rated frequency 50Hz/60Hz
Rated test voltage 3kv AC (1min)
Rated short-time thermal current (lth) 60in
Rated dynamic current (ldyn) 2.5lth
Rated voltage (Um) 0.72kv AC
Continuous overload (ld) 1.2In
Operating temperature -10°C~50°C
Housing self-extinguishing class VO
Safety factor FS 5
Secondary current 5A / 1A



MES-62/20 Series Model & Datasheet:



Type Ratio (A)          Burden(VA)
Class:0.5 Class:1.0
MES-62/20 30/5 / 2.5 (4T)
MES-62/20 40/5 / 2.5 (3T)
MES-62/20 55/5 / 2.5 (3T)
MES-62/20 60/5 / 2.5 (2T)
MES-62/20 75/5 / 1.5
MES-62/20 80/5 / 2.5
MES-62/20 100/5 1.5 2.5
MES-62/20 150/5 2.5 3.75
MES-62/20 200/5 3.75 5

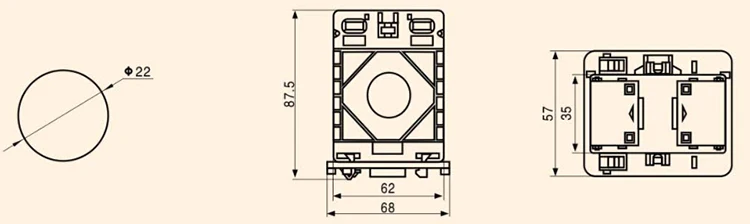

Dimension

MES-62/20 30/5A 40/5A 55/5A 60/5A 80/5A 100/5A Current Transformer With CE
