Winston Low Voltage Three Phase Current Transformer (MSQ-85)

Quantity:
  • MSQ-85
  • Winston
Description

The MSQ Series current transformer has been specially designed to facilitate their installation in new or already existing net works. They may be installed without opening any cable or busbar circuit.The connection of conventional CTs usually requires the interruption of the primary side current to pass cables or busbar through the transformer core to connect such cables to the primary terminals.

Feature
Two installation methods: Panel / Busbar.
Wide inner window,allowing clamping of big cables or busbar
Wide range of sizes to accommodate all the existing installation
Primary current from 5A to 5000A

features

Product Description


Rated frequency 50Hz/60Hz
Rated test voltage 3kv AC (1min)
Rated short-time thermal current (lth) 60in
Rated dynamic current (ldyn) 2.5lth
Rated voltage (Um) 0.72kv AC
Continuous overload (ld) 1.2In
Operating temperature -10°C~50°C
Housing self-extinguishing class VO
Safety factor FS 5
Secondary current 5A/1A



Technical data and dimension

Type Ration (A) Rated power (VA)
Class: 0.5 Class: 1.0
MSQ-85 750/5 5 10
MSQ-85 800/5 7.5 10
MSQ-85 1000/5 10 10
MSQ-85 1200/5 10 15
MSQ-85 1500/5 15 15
MSQ-85 1600/5 15 15
MSQ-85 2000/5 15 15

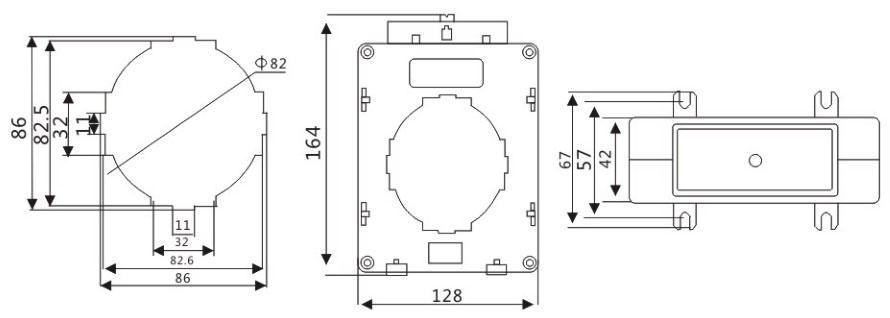

msq-85 dimension


Details

product-details

Packaging & Shipping

dp-package
