LC1-D6511 AC 65A Electrical 3 Phase Contactor

Quantity:
  • LC1-D6511
  • Winston


LC1-D Series AC contactor(simplified AC contactor in the following)is suitable for using in the circuits up to the rated voltage 660V AC 50Hz or 60Hz,rated current 95A,for making and breaking and frequent starting,controlling the AC motor.Combined with the auxiliary contact group,air delayer,machine interlocking devece etc,it is combined into the delay contactor,mechanical interlocking device etc, it is combined into the delay contactor,mechanical interlocking contactor,star-triangle starter, with the thermal relay,it is combined into the electromagnetic starter.





Type Rated working current

Standard

Power ratings of 3-phase motors 50/60Hz in

Category AC-3

Rated heat current Electrical life Mechanical life(×10∧4) Number of the contacts
AC3 AC4 220/230V 380/400V 415V 500V 660/690V AC3(×10∧4) AC4(×10∧4)
D65 65 28 18.5 30 37 37 37 80 60 15 800 3P+NO+NC

Model explanation

model explanation.jpg

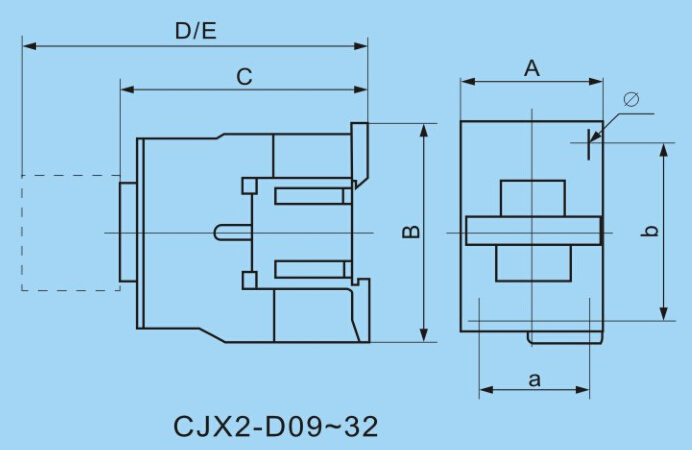

LC1 D09-32 dimension

Type A B C D E a b Ø
CJX2-D09~12 77 129 116 145 165 40 100/110 6.5



This is winston electric ac contactor. We opened this product for more details.

This is a base, the material is PA66 flame retardant.

And this one is iron core. It has 32pcs and the material is silicon steel core.

For this one is a coil. As you can see, we made it with full red copper.


Professional manufacturer, quality is our culture!
