LC1-D0910
Winston
LC1-D Series AC contactor(simplified AC contactor in the following)is suitable for using in the circuits up to the rated voltage 660V AC 50Hz or 60Hz,rated current 95A,for making and breaking and frequent starting,controlling the AC motor.Combined with the auxiliary contact group,air delayer,machine interlocking devece etc,it is combined into the delay contactor,mechanical interlocking device etc, it is combined into the delay contactor,mechanical interlocking contactor,star-triangle starter, with the thermal relay,it is combined into the electromagnetic starter.
LC1-D Series AC contactor(simplified AC contactor in the following)is suitable for using in the circuits up to the rated voltage 660V AC 50Hz or 60Hz,rated current 95A,for making and breaking and frequent starting,controlling the AC motor.Combined with the auxiliary contact group,air delayer,machine interlocking devece etc,it is combined into the delay contactor,mechanical interlocking device etc, it is combined into the delay contactor,mechanical interlocking contactor,star-triangle starter, with the thermal relay,it is combined into the electromagnetic starter.
Type | Rated working current | Standard Power ratings of 3-phase motors 50/60Hz in Category AC-3 | Rated heat current | Electrical life | Mechanical lif e(×10∧4) | Number of the contacts | |||||||
AC3 | AC4 | 220 /230V | 380/ 400V | 415V | 500V | 660 /690V | AC3 (×10∧4) | AC4 (×10∧4) | |||||
D09 | 9 | 3.5 | 2.2 | 4 | 4 | 5.5 | 5.5 | 20 | 100 | 20 | 1000 | 3P+NO | 3P+NC |

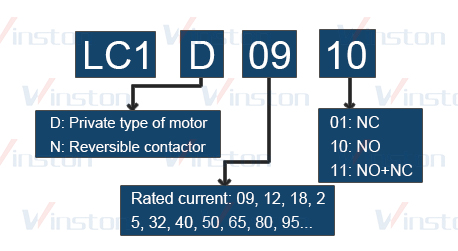

Model explanation
Type | Rated working current | Standard Power ratings of 3-phase motors 50/60Hz in Category AC-3 | Rated heat current | Electrical life | Mechanical lif e(×10∧4) | Number of the contacts | |||||||
AC3 | AC4 | 220 /230V | 380/ 400V | 415V | 500V | 660 /690V | AC3 (×10∧4) | AC4 (×10∧4) | |||||
D09 | 9 | 3.5 | 2.2 | 4 | 4 | 5.5 | 5.5 | 20 | 100 | 20 | 1000 | 3P+NO | 3P+NC |
Model explanation

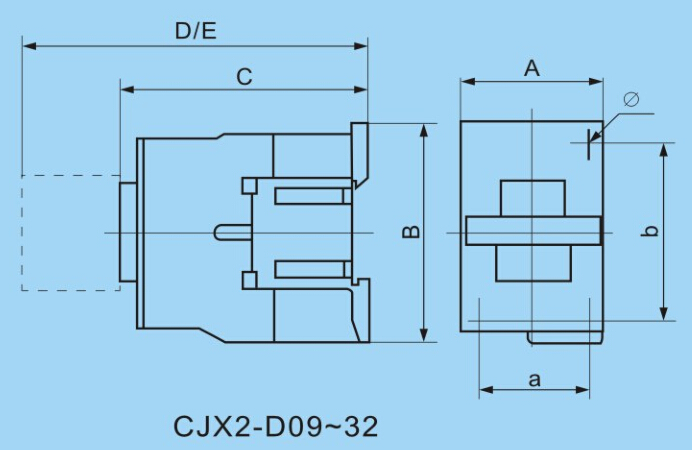

Type | A | B | C | D | E | a | b | Ø |
CJX2-D09~12 | 47 | 76 | 82 | 113 | 133 | 34/35 | 50/60 | 4.5 |
Type | A | B | C | D | E | a | b | Ø |
CJX2-D09~12 | 47 | 76 | 82 | 113 | 133 | 34/35 | 50/60 | 4.5 |
This is winston electric ac contactor. We opened this product for more details.
This is a base, the material is PA66 flame retardant.
And this one is iron core. It has 32pcs and the material is silicon steel core.
For this one is a coil. As you can see, we made it with full red copper.
This is winston electric ac contactor. We opened this product for more details.
This is a base, the material is PA66 flame retardant.
And this one is iron core. It has 32pcs and the material is silicon steel core.
For this one is a coil. As you can see, we made it with full red copper.
