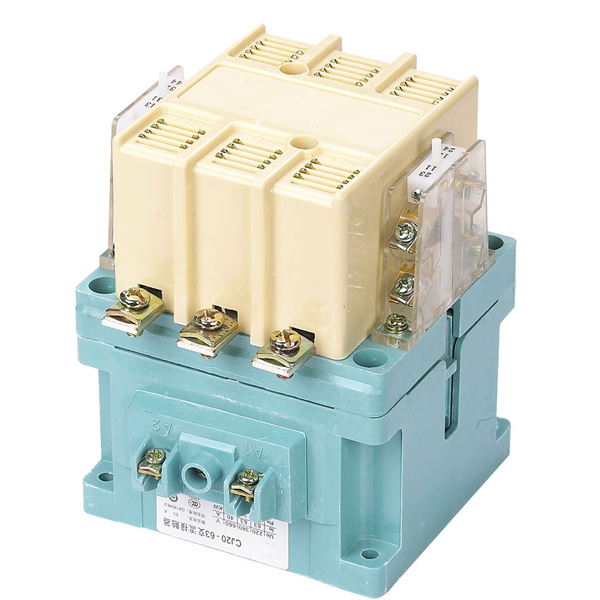

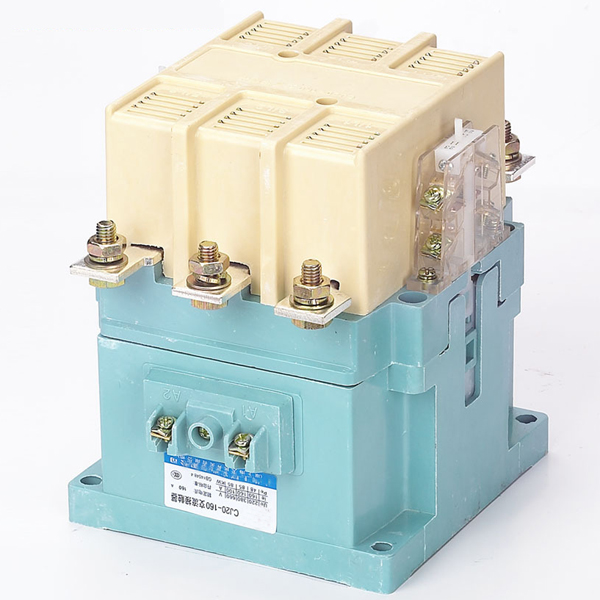

CJ20 Series
CE
Winston/OEM
Made in China
Export standard carton box
PCS
10
3-7days
1
T/T
1.Application:
CJ20 Series AC Contactor is mainly used for electric electric power circuit of AC 50/60Hz,Rated voltage to 660V(Individual grade to 1140V),Current to 630A for frequently making and breaking circuit and control AC motor,and it can be formed electromagnetic starter with thermoal relay or electronic protector for protecting circuit.
The contactor is suitable for the following rated duty:eight-hour duty,interrupt duty,interrupted period duty,short time duty.
The products comply with IEC60947-4.
2.Specifications:
| Type | Rated insulation voltage(V) | Rated thermal current (A) | Control power under AC-3 use category Pe kW | |||
| 220V | 380V | 660V | 1140V | |||
| CJ20-10 | AC690V | 10 | 2.2 | 4 | 4 | - |
| CJ20-16 | 16 | 4.5 | 7.5 | 11 | - | |
| CJ20-25 | 32 | 5.5 | 11 | 13 | - | |
| CJ20-40 | 55 | 11 | 22 | 22 | - | |
| CJ20-63 | 80 | 18 | 30 | 35 | - | |
| CJ20-100 | 125 | 28 | 50 | 50 | - | |
| CJ20-160 | 200 | 48 | 85 | 85 | - | |
| CJ20-160/11 | AC1140V | 200 | - | - | - | 85 |
| CJ20-250 | AC690V | 315 | 80 | 132 | - | - |
| CJ20-250/06 | 190 | - | ||||
| CJ20-400 | 400 | 115 | 200 | 220 | - | |
| CJ20-630 | 630 | 175 | 300 | - | - | |
| CJ20-630/06 | 350 | - | ||||
| CJ20-630/11 | AC1140V | 400 | - | - | - | 400 |
| Type | Rated operation voltage Ue(V) | Holding power(KW) | Energy saving rate | Temperature rise K | Noise dB |
| CJ20-40 | 220,380 | 5.7 | 86 | >15 | <25 |
| CJ20-63 | 16.5 | 94 | |||
| CJ20-100 | 21.5 | 95 | |||
| CJ20-160 | 34 | 96 | |||
| CJ20-250 | 65 | 95.4 | |||
| CJ20-400 | 75 | 95.3 | |||
| CJ20-630 | 118 | 96.6 |
3.Overall and mounting dimensions(mm)
