D69-2058
Winston
Products Description
D69-2058 multi-function Digital meter can measure AC voltage, AC current, active power,
power factor, power frequency and electric energy. HD LCD has adopt for display module
Technical Parameters
| Model | D69-2058 |
| Power supply | AC80-300VAC for 110V 220V, 200-450V for 380V; AC0-100.0A |
| Active power | (measuring AC80-300V) 0-30000W (measuring AC200-450V 45000W) |
| Electric energy | 0-99999kwh |
| COSφ | 0.00-1.00PF |
| Measuring speed | About 2 times/s |
| CT | External |
| Size | 79*43*48mm |
| Install size | 79*39mm |
| Accuracy | 1％±2 words |

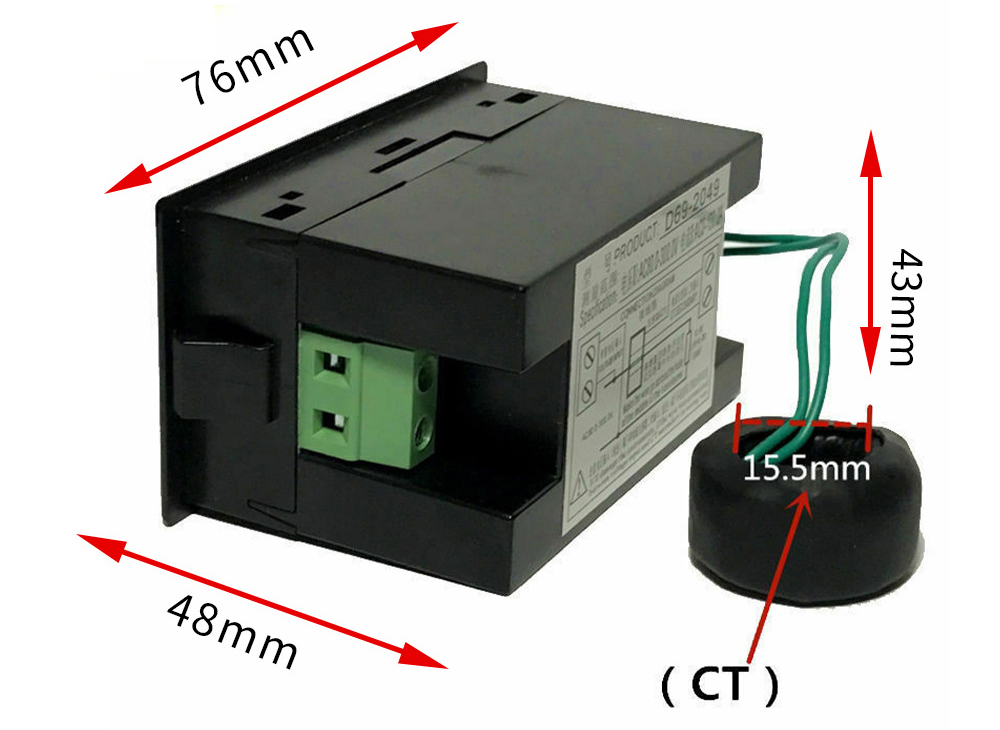

Dimension

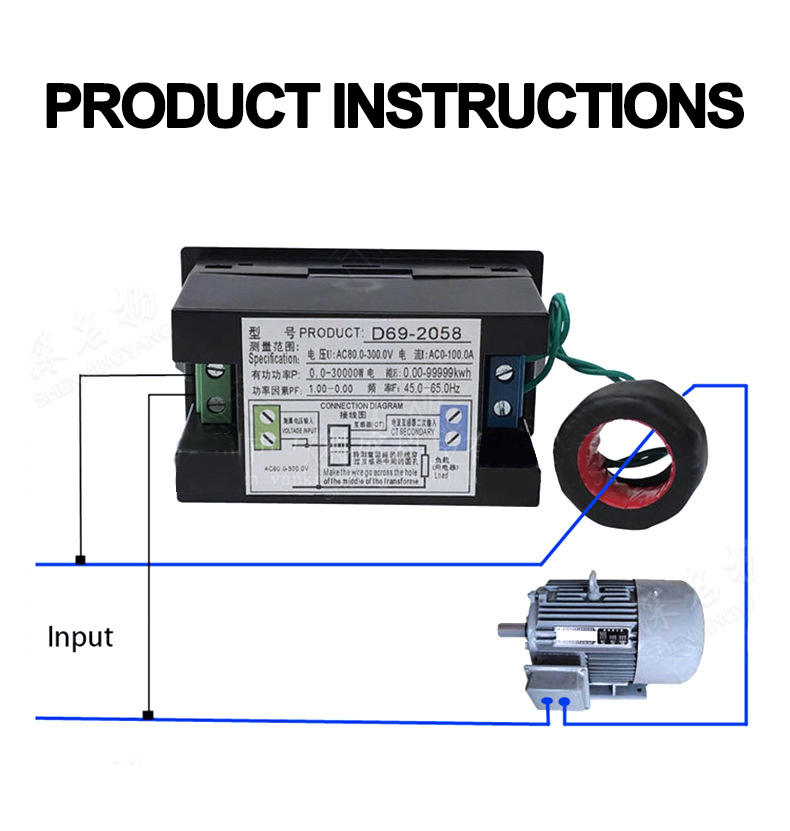

Wiring diagram
Application Method

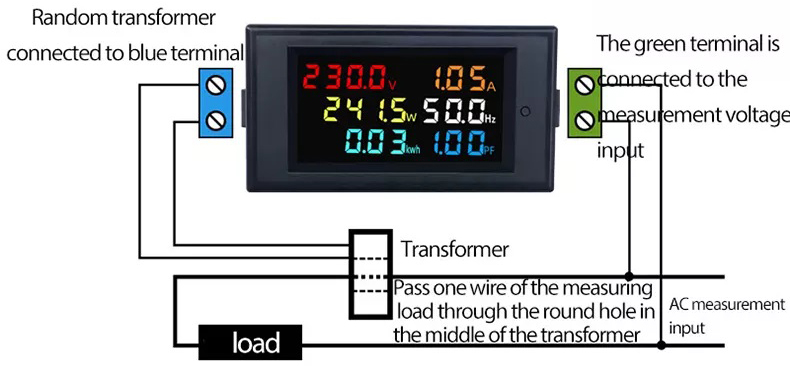

1.According to connection graph, connect the green wire of secondary current transformer
to the blueterminal of meter and make the wire of measurement circuit through the hole in
the current transformer.
2.Supply power and start to measure and display the result.
3.Press down the button last for 5 second, the electric energy will to be zero.
