D69-2048
Winston
Products Description

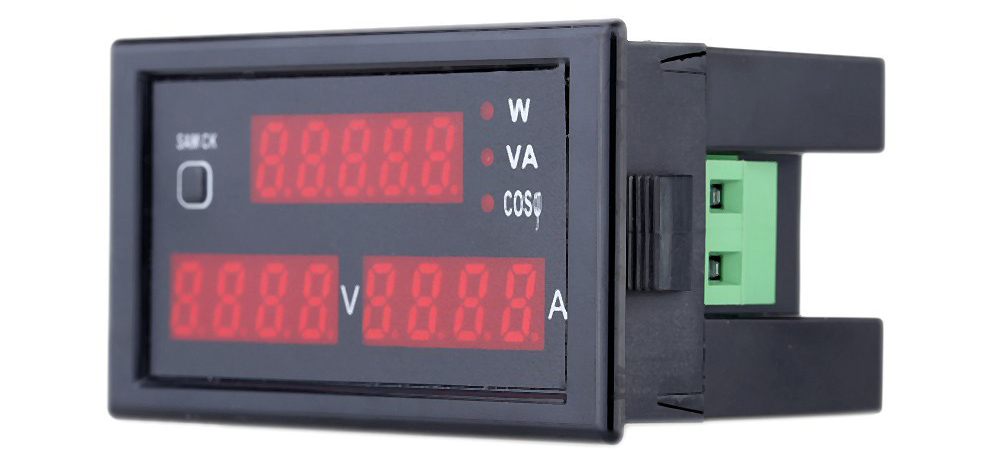

The item is a multi-function meter. On the instrument, it can respectively display the
measured AC voltage, AC current, active power, apparent power and power factor at the
same time.
Features
Wide voltage and current measurement range
Display the AC voltage and current, etc. simultaneously by LED digital tube
Measure AC voltage, AC current, active power, electric energy and power factor
Suitable for monitoring the operating situation of appliances
Operation

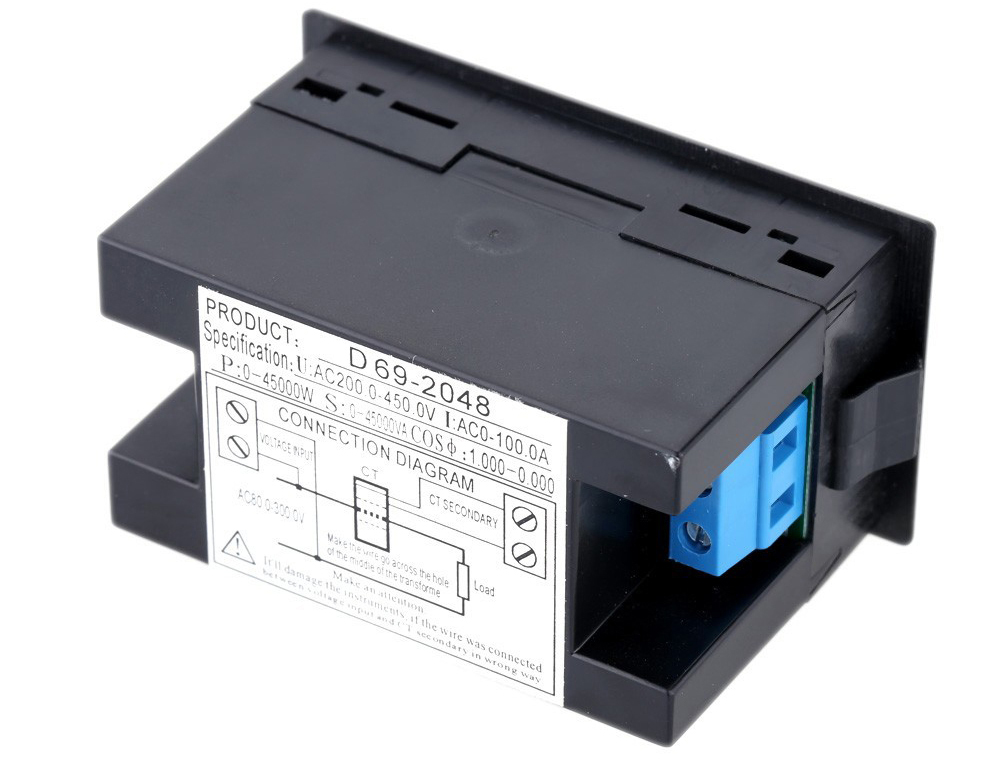

Connect the wires (blue wire) of secondary transformer to the blue terminal on the meter,
the meaure line must across the hole in the current transformer;
Connect the measure voltage wire to the green terminal;
The default disply power is active power(V), click the suwitch (SAMCK) can, change to the
reactive power (VA) and power factor(cosX)
Technical Parameters
| Model | D69-2048 |
| Power supply | AC80-300VAC for 110V 220V, 200-450V for 380V; AC0-100.0A |
| Active power | (measuring AC80-300V) 0-30000W (measuring AC200-450V 45000W) |
| Apparent power | (measuring AC80-300V) 0-30000W (measuring AC200-450V 45000W) |
| COSφ | 0.00-1.00PF |
| Measuring speed | About 2times/s |
| CT | External |
| Size | 79*43*48mm |
| Install size | 79*39mm |
| Install size | 1％±2 words |
Application Method
1.Connect the wires of secondary transformer to the blue terminal on the meter, the measure
line must across the hole int the current transformer.
2. Connect the measure voltage wire to the green terminal
3.The default display power is active power (V),click the switch (SAM CK)can change to the
reactive power(VA) and power factor(cos)
