D69-2049
Winston
Products Description
D69-2049 type digital display multi-function meter is to display the measured AC voltage,
AC current, active power and electric quantity at the same time on one instrument. The display
part of the instrument adopts a color high-definition LCD display.
Technical Parameters
| Model | D69-2049 |
| Power supply | AC80-300VAC for 110V 220V, 200-450V for 380V; AC0-99.99A above 100a,display 100.0A |
| Active power | 0-10000W display 0-9999.9W; above 10000W display 10000-22000W |
| Electric energy | 0-10000kwh, above 10kwh 00000.99kwh~9999999kwh |
| Measuring speed | About 2 times/s |
| CT | External |
| Size | 79*43*48mm |
| Install Size | 79*39mm |
| Accuracy | 1％±2 words |

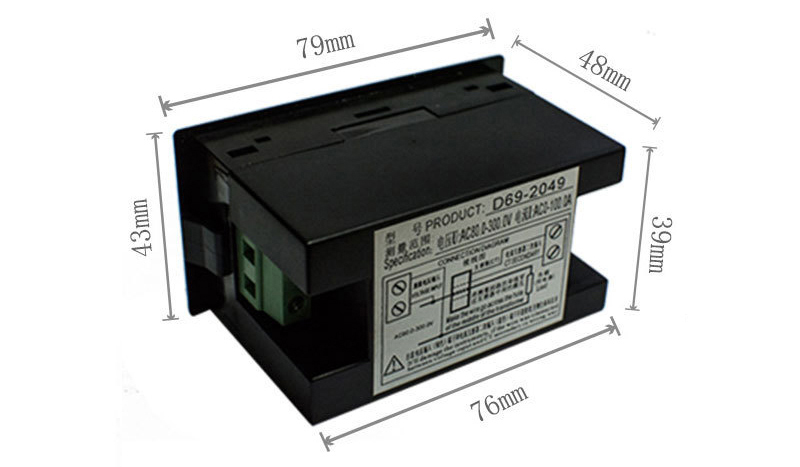

Dimension
Wiring diagram
Application Method
1. According to connection graph, connect the green wire of secondary current transformer
to the blue terminal of meter and make the wire of measurement circuit through the hole
in the current transformer.
2. Supply power and start to measure and display the result.
3. Press down the button last for 5 second, the electric energy will to be zero.
