CM12 NO NC Plaste/metal Capacitive Proximity Sensor Switch

Quantity:
  • CM12-3002 CM12-3004
  • WINSTON
Technical Data

Compact volume
Wide voltage range
Long service life
Diversified exterior structures
high precision of repeated location
Good performance of anti-interference.
Dust proof,vibration proof,waterproof and Oil-proof.

Flush Detection distance 0-2mm
DC10-30V NPN NO CM12-3002NA
NC CM12-3002NB
NO+NC CM12-3002NC
PNP NO CM12-3002PA
NC CM12-3002PB
NO+NC CM12-3002PC
AC90250V two wire system NO CM12-3002LA
NC CM12-3002LB
SCR Control label silicon  NO CM12-2002A
NC CM12-2002B
NO+NC CM12-2002C
Non-flush Detection distance 0-4mm
DC10-30V NPN NO CM12-3004NA
NC CM12-3004NB
NO+NC CM12-3004NC
PNP NO CM12-3004PA
NC CM12-3004PB
NO+NC CM12-3004PC
AC90~250V two wire system NO CM12-3004LA
NC CM12-3004LB
SCR Control label silicon  NO CM12-3004A
NC CM12-3004B
NO+NC CM12-3004C
Control output DC 200mA
SCR/Relay 300mA
Output voltage drop DC/AC DC<3V  AC<10V
Consumption current DC<15mA  AC<10mA
Detected object Conductor and Directric Body
Repeated precision 0.05
DC/AC Response frequency 200Hz/25Hz
Working environment temperature –25℃~75
Insulation resistance 50MΩ
Shell material Metal/Plastic
Protection grade IEC standard IP65
Altemative model at home and abroad

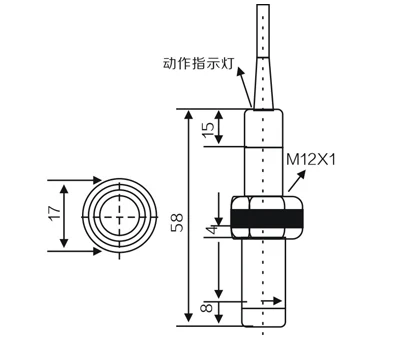

Dimension



Application



Packaging & Shipping
