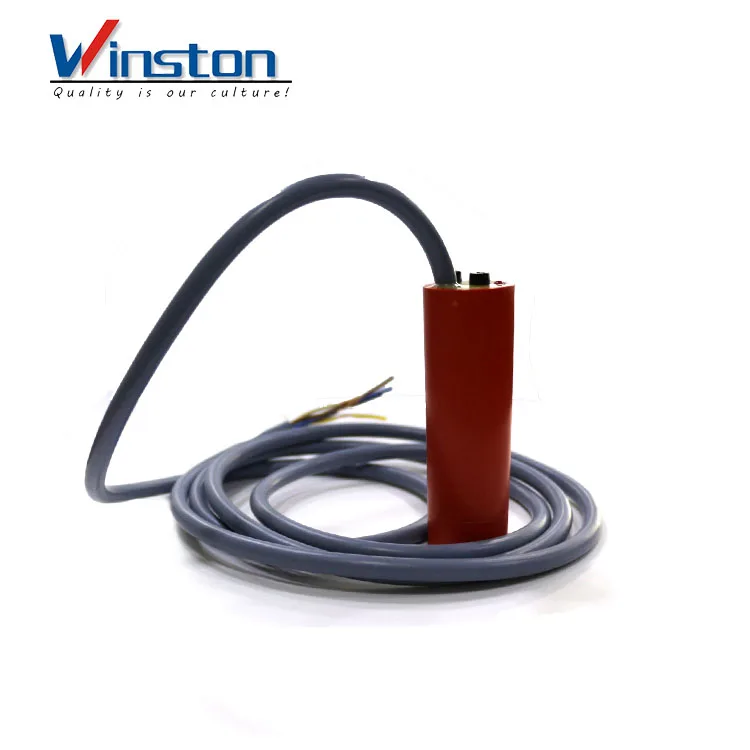

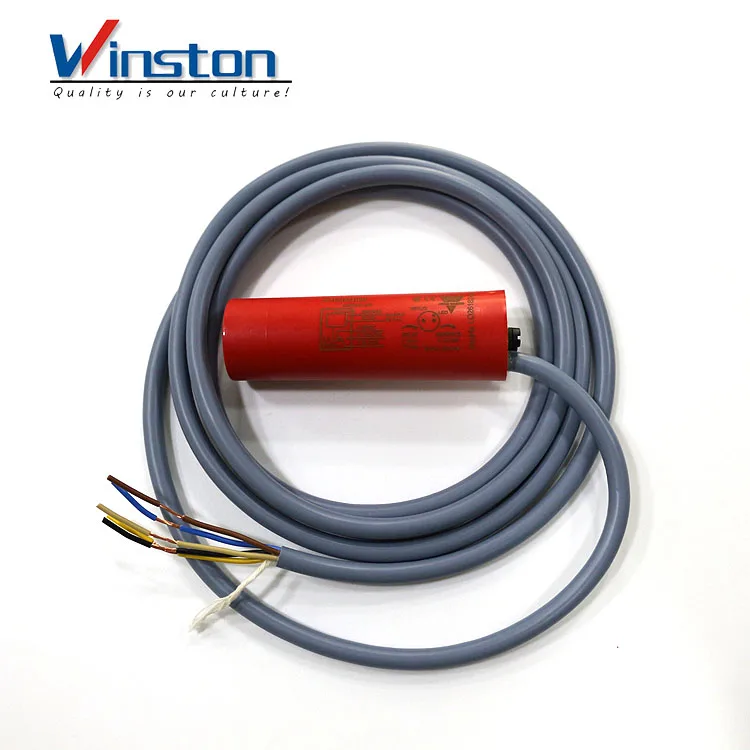

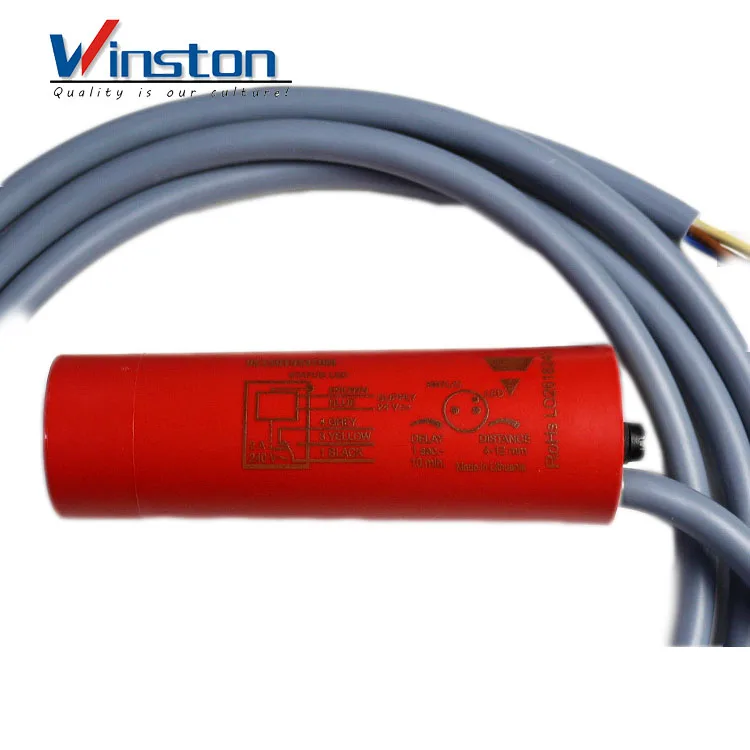

VC12 Series capacitive proximity sensor with relay output Poultry Automatic Feeding System

Based on the popular and successful VC12 sensor series, our new generation of capacitive sensors features improved EMC performance as well as accurate time and sensitivity adjustment options.

Quantity:
  • VC12
  • Winston

Description

Based on the popular and successful  VC12 sensor series, our new generation of capacitive sensors features improved EMC performance as well as accurate time and sensitivity adjustment options. The new VC12 sensors meet requirements in most modern agricultural sector meet requirements in most modern agricultural  sector installations, especially livestock feeding systems automation,and they operate on multi-voltage power supplies. Distance setting has been made easier by means of the sensor, while laser printing on the side of each unit allows for easy reference to relevant information. VC12 sensors are available in versions with or without time delay - a very versatile component suitable for our customers solutions.



Robust sensor for the agricultural industry

Our new VC12 sensors offer improved EMC performance and a reinforced power supplu insulation.



Sensing distance

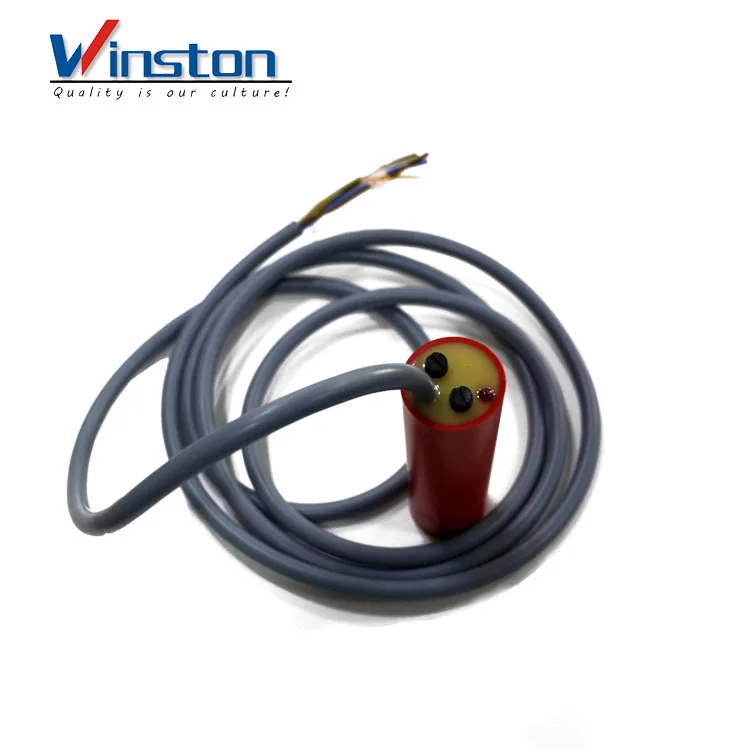

distances from 4 to 12 mm are easily set by means of the multi-turn potentiometer.



Time delay

VC12 are equipped with a time delay which manages delays from 1 to 600 seconds for easy and fast control of the feeding system.



Wide supply voltage range

Ready for world-wide use, VC12 operate on 20.4 to 255 VAC/DC

Application

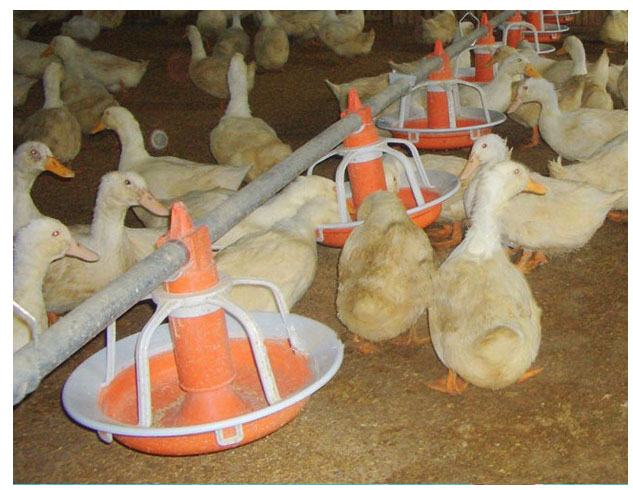

Livestock feeding systems for poultry or pigs

The sw2 sensors efficiently control the fodder and seed supply. The sensors detect feed levels in the storage tank and in the feeding line, they control the start and stop of the feeding line, ensuring uniform, simultaneous and precise dosing and providing equal and comfortable access of feed for all birds or pigs.

鸭子

Agrologic type feeding sensor SW-2 capacitive proximity sensor For Poultry Automatic Feeding System Agrologic type feeding sensor SW-2 capacitive proximity sensor For Poultry Automatic Feeding System Agrologic type feeding sensor SW-2 capacitive proximity sensor For Poultry Automatic Feeding System




VC12 Series capacitive proximity sensor with relay output Poultry Automatic Feeding SystemVC12 Series capacitive proximity sensor with relay output Poultry Automatic Feeding SystemVC12 Series capacitive proximity sensor with relay output Poultry Automatic Feeding SystemVC12 Series capacitive proximity sensor with relay output Poultry Automatic Feeding SystemVC12 Series capacitive proximity sensor with relay output Poultry Automatic Feeding System


Agrologic type feeding sensor SW-2 capacitive proximity sensor For Poultry Automatic Feeding System Agrologic type feeding sensor SW-2 capacitive proximity sensor For Poultry Automatic Feeding System


Agrologic type feeding sensor SW-2 capacitive proximity sensor For Poultry Automatic Feeding System

Agrologic type feeding sensor SW-2 capacitive proximity sensor For Poultry Automatic Feeding SystemAgrologic type feeding sensor SW-2 capacitive proximity sensor For Poultry Automatic Feeding System
